Article: 750-600/040-000
Brand: Wago
1,822.08 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

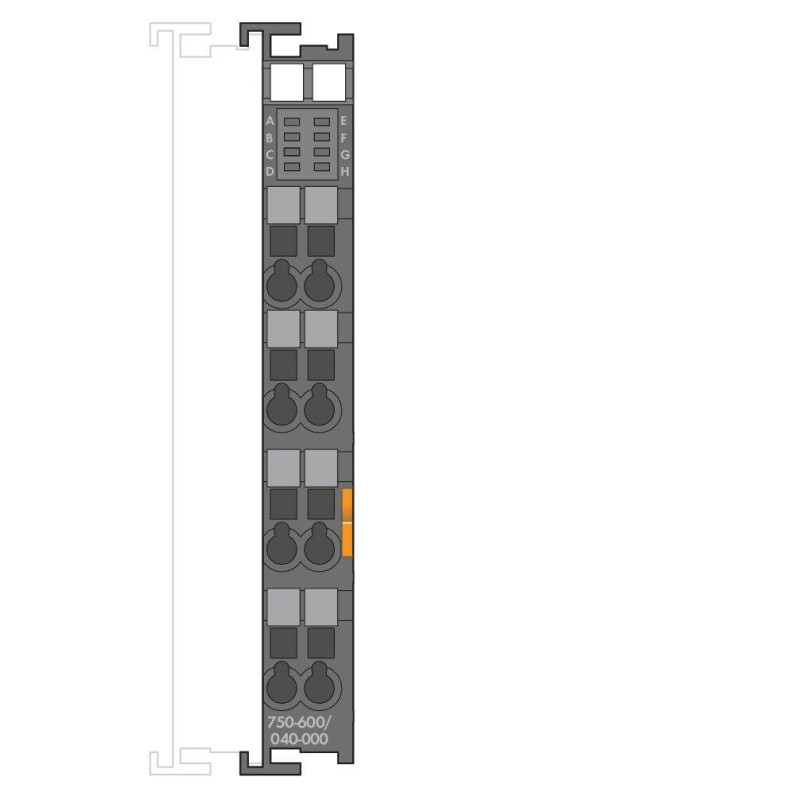

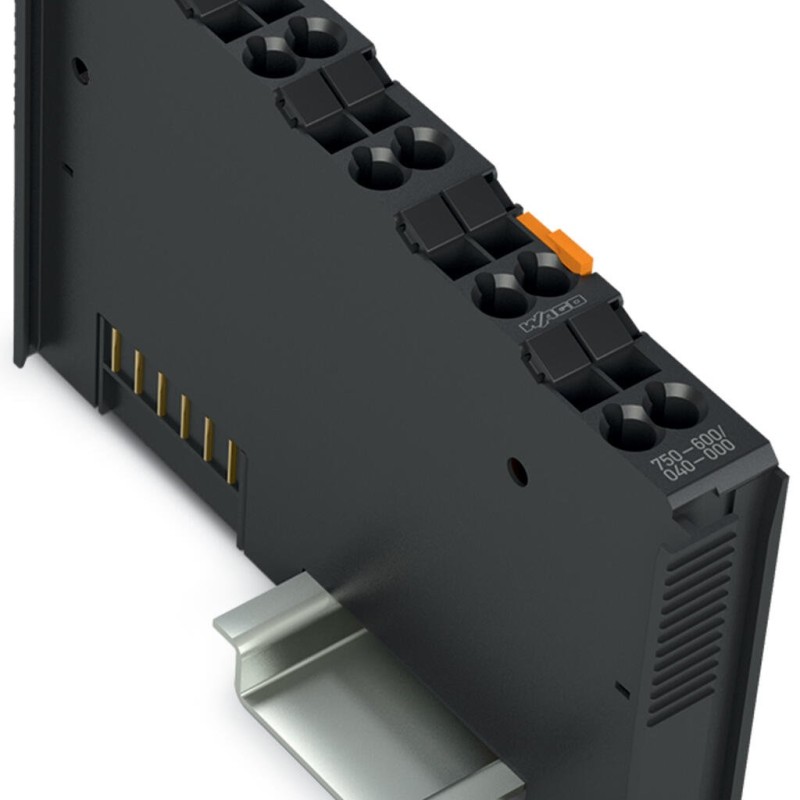

Description 750-600/040-000 End Module;Extreme;dark gray
After the fieldbus node is assembled with the correct coupler and I/O modules, the end module is snapped onto the assembly.
The end module completes the internal data bus, ensuring flawless data transmission.
The device is ideal for operation in extreme environments thanks to:
- An extended temperature range
- Greater immunity to impulse voltages and electromagnetic interference
- Higher vibration and shock resistance
Main attributes 750-600/040-000 End Module;Extreme;dark gray
Environmental requirements
Ambient temperature (operation)
-40 … +70 °C
Ambient temperature (storage)
-40 … +85 °C
EMC emission of interference
per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
EMC immunity to interference
per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;
EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
Exposure to pollutants
Per IEC 60068-2-42 and IEC 60068-2-43
Mounting position
Horizontal left, horizontal up, vertical top and vertical bottom
Operating altitude
without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
Permissible H₂S contaminant concentration
10 ppm
Permissible SO₂ contaminant concentration
25 ppm
Pollution degree
2 per IEC 61131-2
Protection type
IP20
Relative humidity (with condensation)
Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
Relative humidity (without condensation)
95 %
Shock resistance
per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
Vibration resistance
per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
Material data
Color
dark gray
Conformity marking
CE
Fire load
0.953 MJ
Housing material
Polycarbonate; polyamide 6.6
Weight
32.5 g
Mechanical data
Mounting type
DIN-35 rail
Physical data
Depth
67.8 mm
Depth from upper-edge of DIN-rail
60.6 mm
Height
100 mm
Width
12 mm
Technical data
Supply voltage (system)
)
