206-701 Torque wrench M8 and M12;Assembly kit

Name: 206-701 Torque wrench M8 and M12;Assembly kit
Brand: Wago
Price: 16406.54 UAH
Availability: InStock

In stock

Article: 206-701

Brand: Wago

16406.54 грн.

Found it cheaper?

Short description

Assembly kit for pre-assembled IP67 cables and hex nut connectors (756 Series) consists of:Tool kitTorque screwdriver with adjustable torque (window scale)Adjustment tool for changing the torqueSocket wrench SW9 (for M8 ...

Description 206-701 Torque wrench M8 and M12;Assembly kit

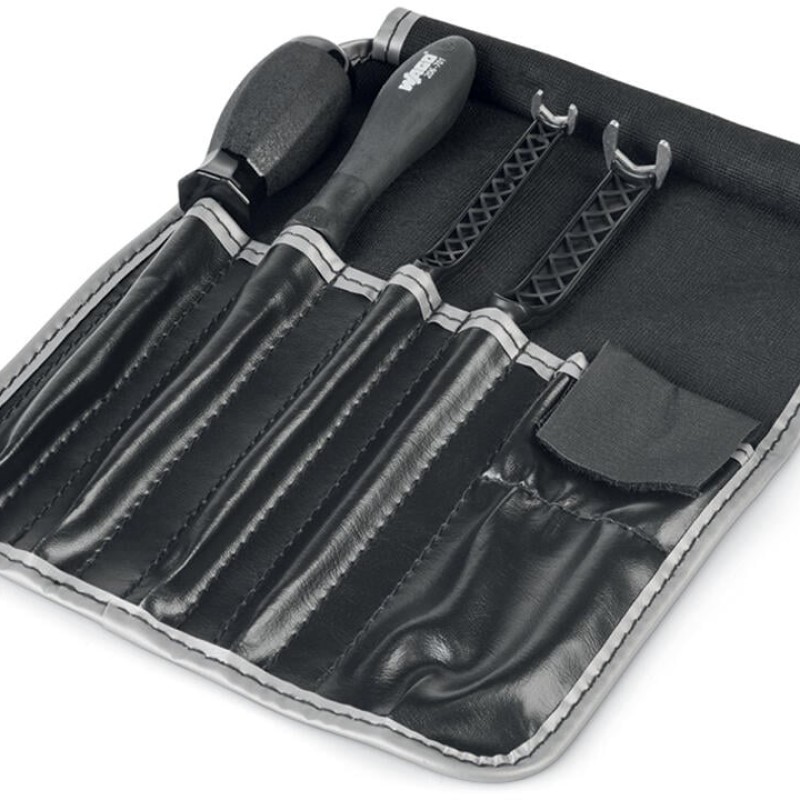

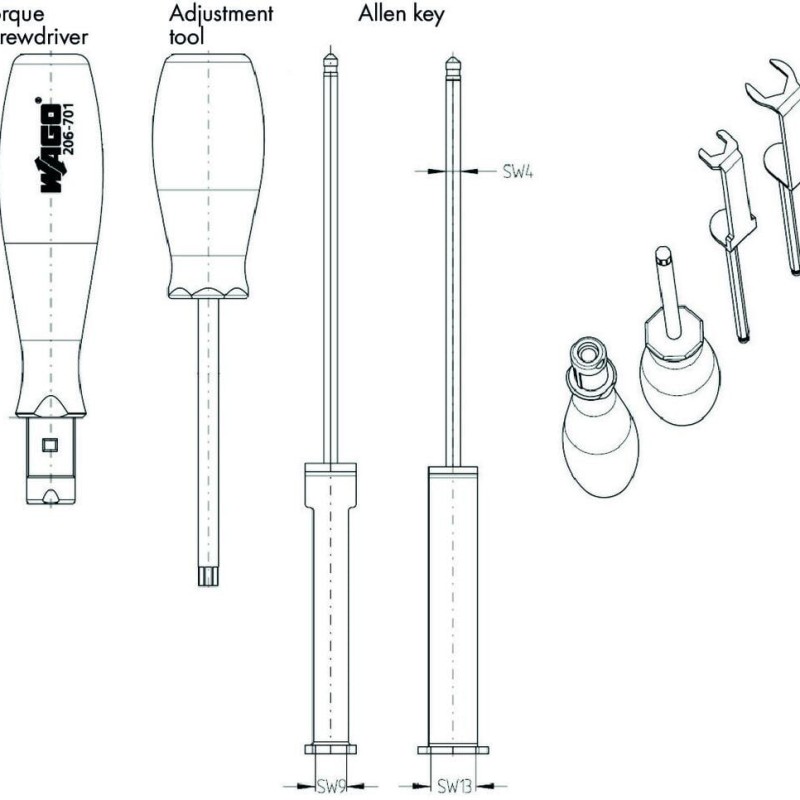

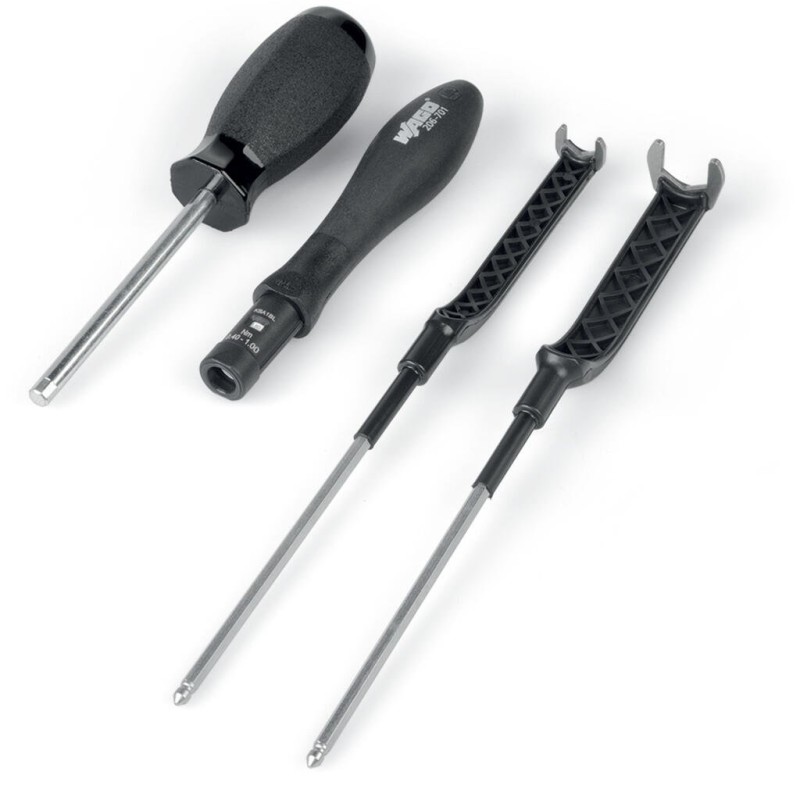

Assembly kit for pre-assembled IP67 cables and hex nut connectors (756 Series) consists of:

Tool kit
Torque screwdriver with adjustable torque (window scale)
Adjustment tool for changing the torque
Socket wrench SW9 (for M8 cable assemblies)
Socket wrench SW13 (for M12 cable assemblies)

A torque specification of 0.6 Nm for M8 connectors and 1.0 Nm for M12 connectors is required for both 756 Series Cables and Connectors.

Main attributes 206-701 Torque wrench M8 and M12;Assembly kit

Environmental requirements

Standards/specifications EN ISO 6789

Mechanical data

Housing material Handle: Polypropylene (PP) for hard zone, thermoplastic elastomers (TPE) for soft zone Allen key: Polyamide (PA), fiber-glass-reinforced; chromium-vanadium-molybdenum steel (CrMoV) (1.2381) Adjustment tools: Cellulose acetate; chromiu

Weight 235 g
