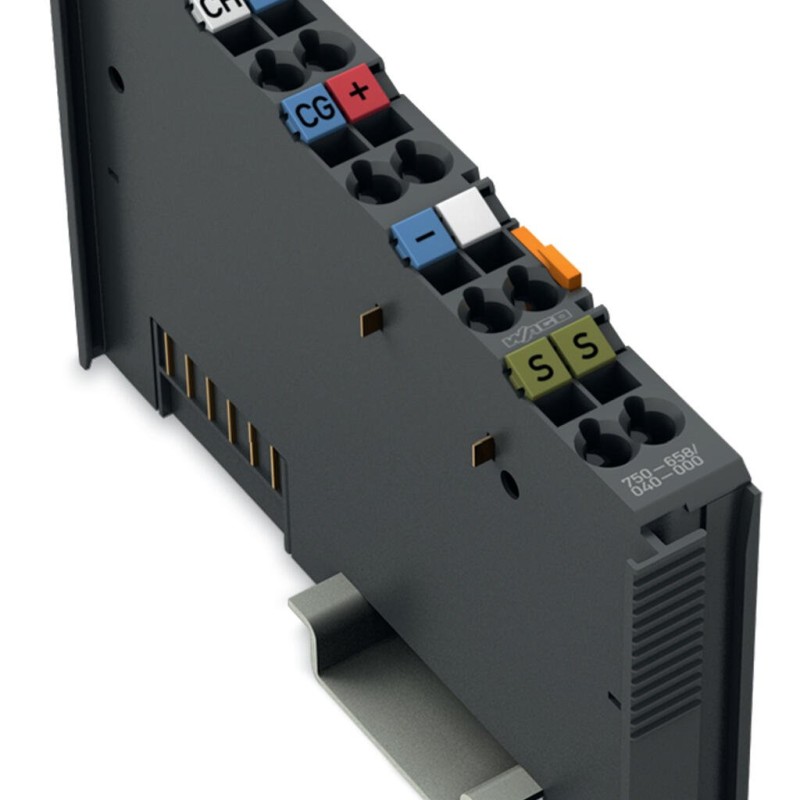

750-658/040-000 CAN Gateway;Extreme;dark gray

Name: 750-658/040-000 CAN Gateway;Extreme;dark gray
Brand: Wago
Price: 30478.52 UAH
Availability: InStock

In stock

Article: 750-658/040-000

Brand: Wago

30478.52 грн.

Found it cheaper?

Short description

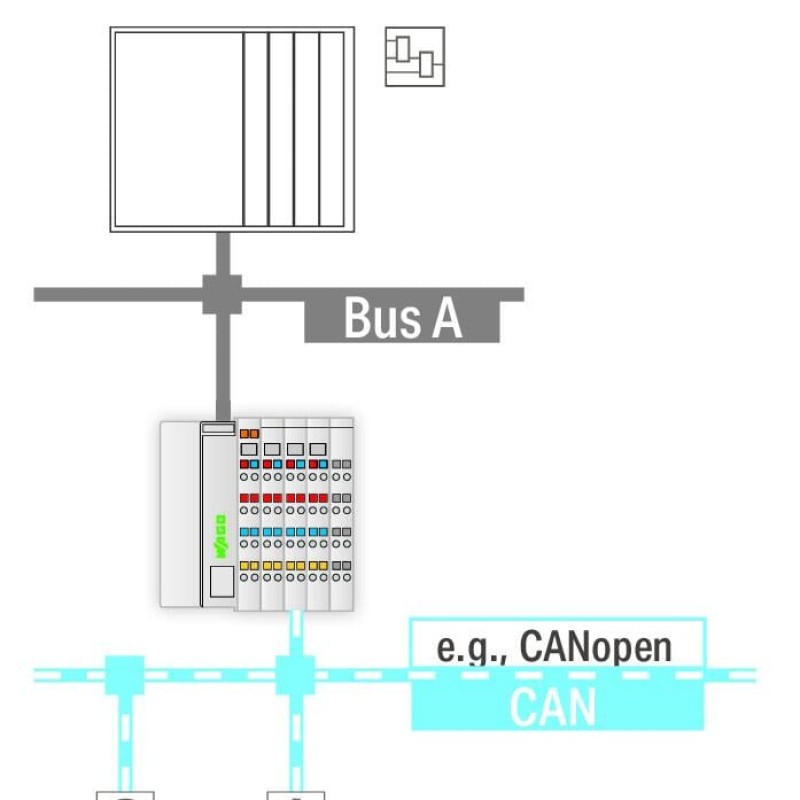

The CAN Gateway supports CAN Layer 2, while meeting CAN specifications 2.0A (11-bit identifier) and 2.0B (29-bit identifier). Function blocks allow the gateway to read and write higher-protocol telegrams (e.g., CANopen)....

Description 750-658/040-000 CAN Gateway;Extreme;dark gray

The gateway adjusts itself to baud rates between 10 kbit/s to 1 Mbit/s via automatic bit-rate detection (Auto Baud Rate). It is also possible to set a fixed transmission rate. Six configurable filters for input telegrams allow CAN messages to be filtered via the CAN identifiers.

Three following operation modes are available: Sniffer mode provides a detailed CAN bus analysis without interactions. In transparent mode, the gateway works as an active CAN device that can send and receive any type of CAN telegrams. Mapped mode enables CAN telegrams to be generated directly from the process image. It also allows select process values to be copied from received telegrams into the input process image. A CAN telegram may be sent cyclically, manually or event-triggered (change of process value).

The device is ideal for operation in extreme environments thanks to:

An extended temperature range
Greater immunity to impulse voltages and electromagnetic interference
Higher vibration and shock resistance

Main attributes 750-658/040-000 CAN Gateway;Extreme;dark gray

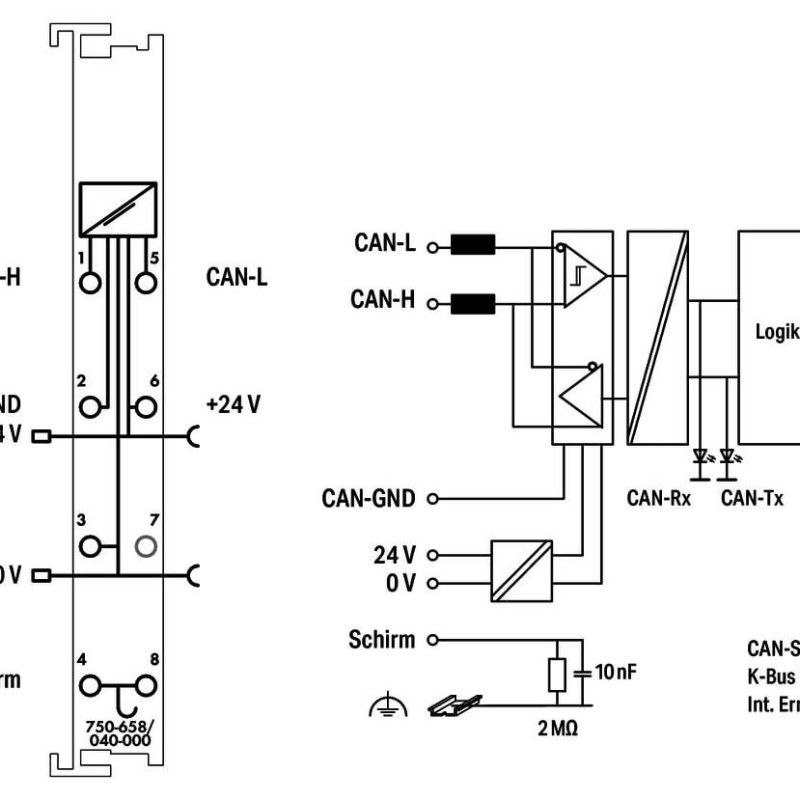

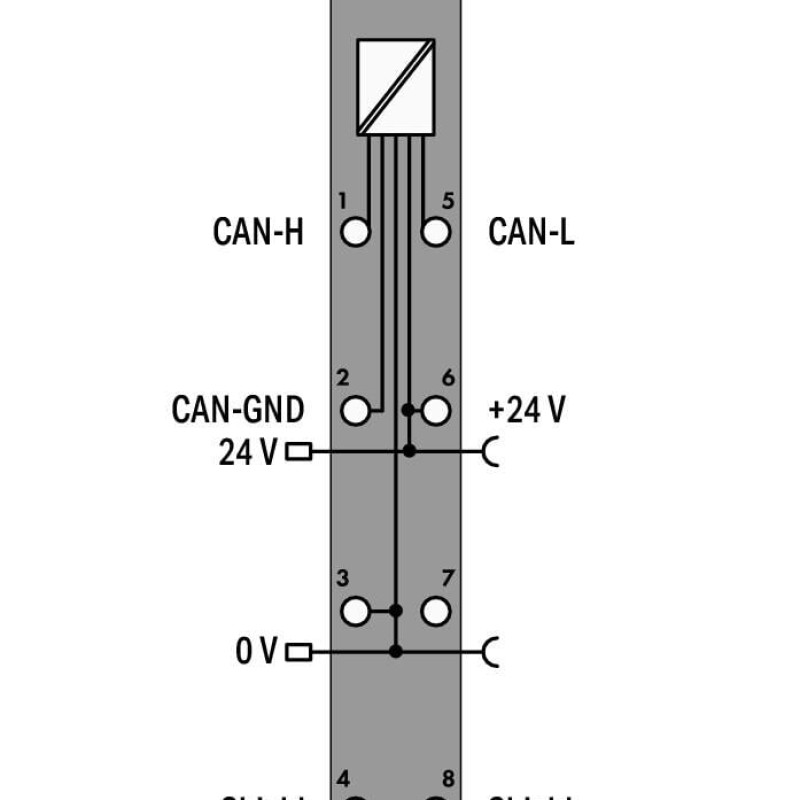

Connection data

Connection technology: inputs/outputs 7 x CAGE CLAMP^®

Connection type 1 Inputs/Outputs

Fine-stranded conductor 0.25 … 2.5 mm² / 24 … 14 AWG

Solid conductor 0.25 … 2.5 mm² / 24 … 14 AWG

Strip length 8 … 9 mm

Environmental requirements

Ambient temperature (operation) -40 … +70 °C

Ambient temperature (storage) -40 … +85 °C

EMC emission of interference per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5

EMC immunity to interference per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;
EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994

Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43

Mounting position Horizontal left, horizontal up, vertical top and vertical bottom

Operating altitude without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)

Permissible H₂S contaminant concentration 10 ppm

Permissible SO₂ contaminant concentration 25 ppm

Pollution degree 2 per IEC 61131-2

Protection type IP20

Relative humidity (with condensation) Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)

Relative humidity (without condensation) 95 %

Shock resistance per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373

Vibration resistance per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373

Material data

Color dark gray

Conformity marking CE

Fire load 0.958 MJ

Housing material Polycarbonate; polyamide 6.6

Weight 51.5 g

Mechanical data

Mounting type DIN-35 rail

Physical data

Depth 67.8 mm

Depth from upper-edge of DIN-rail 60.6 mm

Height 100 mm

Width 12 mm

Technical data

Current carrying capacity (power jumper contacts) 10 A

Current consumption (5 V system supply) 50 mA

Current consumption, field supply (module with no external load) 15 mA

Data width Configurable to 8, 12, 16, 20, 24, 32, 40, 48 bytes; incl. control/status byte

Derating Derating (supply voltage):
Ambient temperatures under laboratory conditions: (−25 … +30 %);
for −40 … +55 °C: 24 V (−25 … +20 %);
for +55 … +70 °C: 24 V (−25 … +10 %);
Lower limit in all temperature ranges: −27.5 % (including 15 % resi

Device-specific Operating modes: Sniffer mode, transparent mode, mapped mode

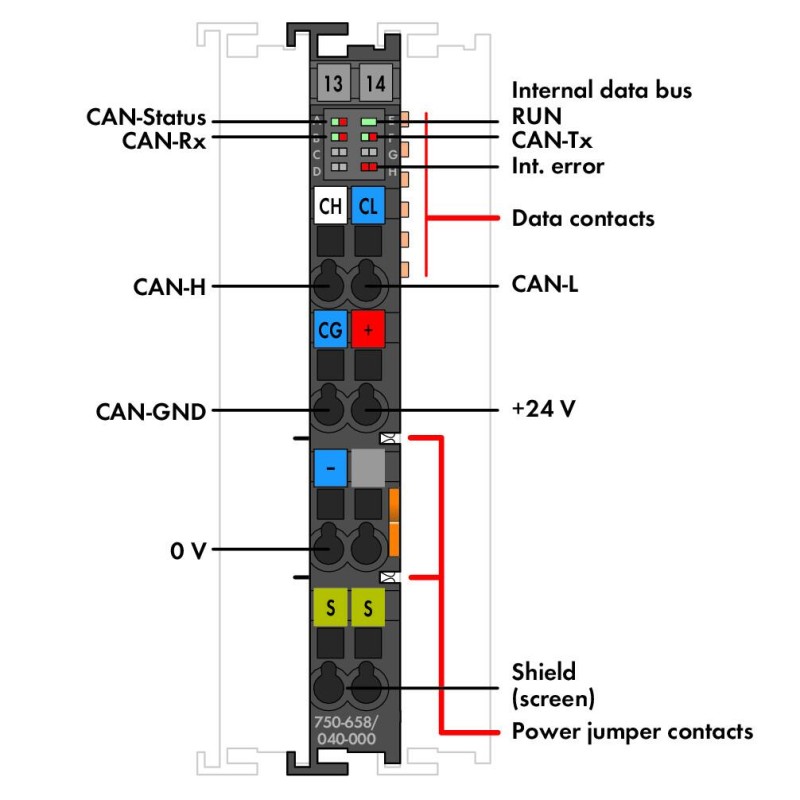

Indicators LED (A, B, F) red/green: CAN status, CAN-Rx, CAN-Tx; LED (E) green: local data bus RUN; LED (H) red: Int. Error

Number of incoming power jumper contacts 2

Number of inputs 1 (CAN interface)

Number of outgoing power jumper contacts 2

Rated surge voltage 1 kV

Supply voltage (field) 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact); Derating must be observed!

Supply voltage (system) 5 VDC; via data contacts

Transmission modes 10 kbit/s; 20 kbit/s; 50 kbit/s; 125 kbit/s; 250 kbit/s; 500 kbit/s; 800 kbit/s (auto-baudrate); Data formats: per 2.0 A standard (11-bit ID); per 2.0 B extended (29-bit ID)
