Description 862-2593 4-conductor chassis-mount terminal strip;without ground contact;N-PE-L1;black
This chassis-mount terminal strip (item number 862-2593) is designed for fault-free electrical installations. Ensure that the strip lengths are between 10 and 11 mm when connecting conductors to this chassis-mount terminal strip. This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, offering a key advantage: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. The item's dimensions are (36 x 27.5 x 35) mm (width x height x depth). Depending on the conductor type, this chassis-mount terminal strip is ideal for conductor cross sections ranging from 0.5 mm² to 4 mm².
Main attributes 862-2593 4-conductor chassis-mount terminal strip;without ground contact;N-PE-L1;black
Connection 1
Actuation type
Push-button
Connectable conductor materials
Copper
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.5 … 4 mm² / 20 … 12 AWG
Fine-stranded conductor; with ferrule; push-in termination
0.75 mm² / 18 AWG
Fine-stranded conductor; with insulated ferrule
0.5 … 1.5 mm² / 20 … 16 AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Pole number
3
Solid conductor
0.5 … 4 mm² / 20 … 12 AWG
Solid conductor; push-in termination
0.75 … 4 mm² / 18 … 12 AWG
Stranded conductor
0.5 … 4 mm² / 20 … 12 AWG
Strip length
10 … 11 mm
Wiring direction
Side-entry wiring
Connection data
Clamping units
12
PE function
without PE contact
Total number of potentials
3
Material data
Color
black
Fire load
0.438 MJ
Flammability class per UL94
V0
Halogen-free
Yes
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
21.1 g
Mechanical data
Marking
N-⏚-L1

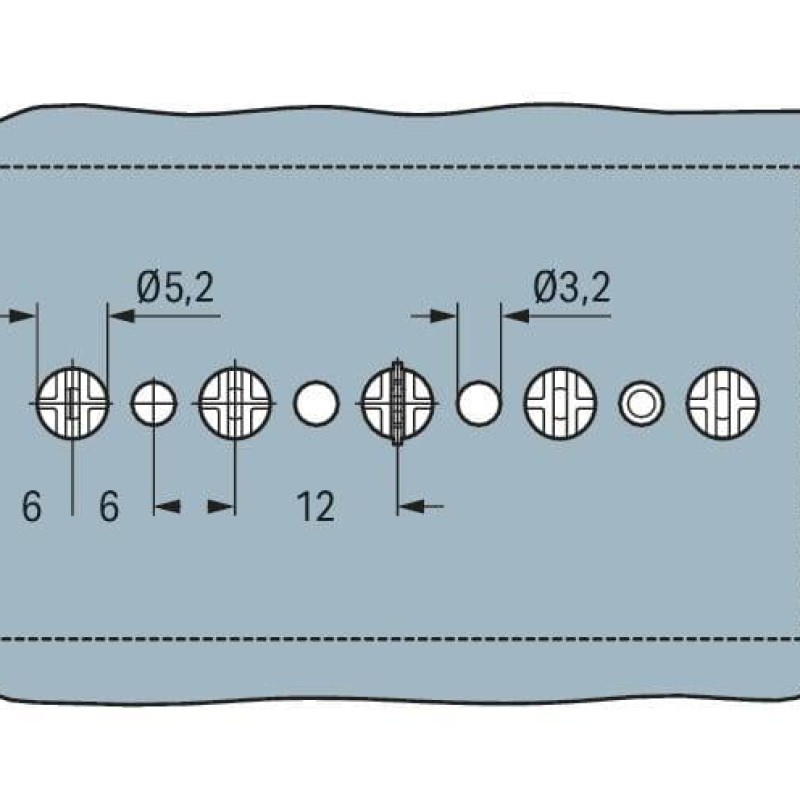

Mounting type
Snap-in foot at position 1+3

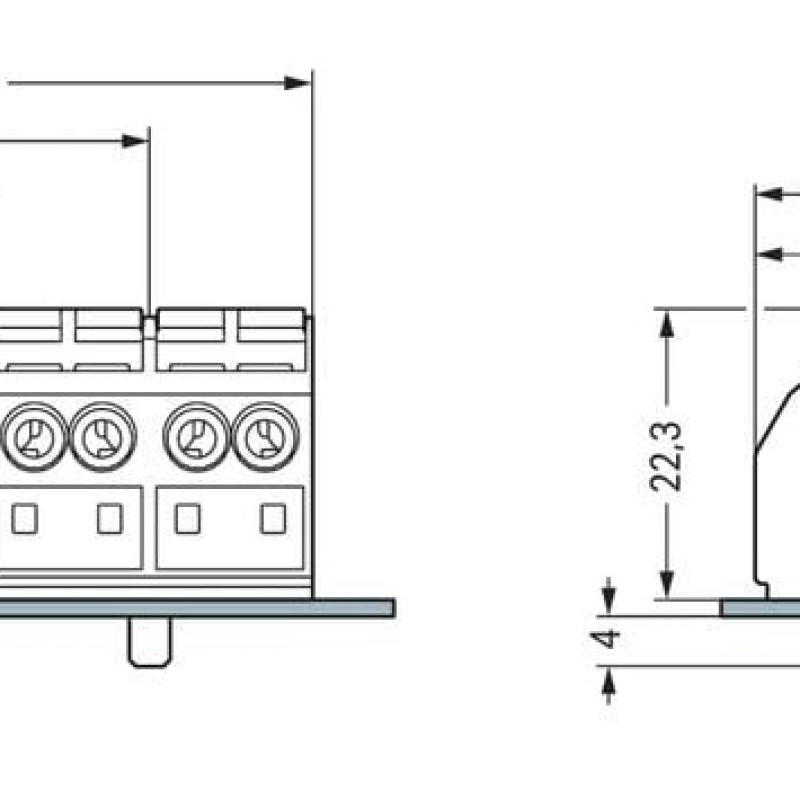

Physical data
Depth
35 mm
Height from the surface
22.3 mm
Pin spacing
12 mm
Width
36 mm
