Article: 862-532
Brand: Wago
53.44 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

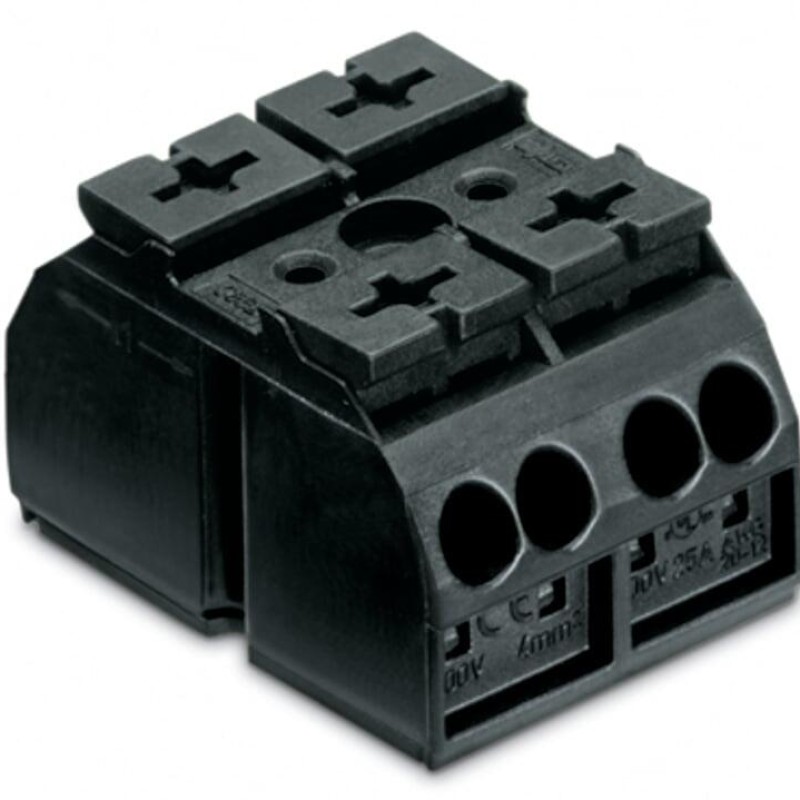

Description 862-532 4-conductor chassis-mount terminal strip;without ground contact;2-pole;black
Convenient electrical installations are guaranteed with this chassis-mount terminal strip (item number 862-532). Strip lengths must be between 10 and 11 mm when connecting conductors to this chassis-mount terminal strip. This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. Solid and fine-stranded conductors with ferrules can be plugged in without the need for tools—all thanks to its pluggable design. The item's dimensions are (24 x 27.5 x 35) mm (width x height x depth). Depending on the conductor type, this chassis-mount terminal strip is suitable for conductor cross sections ranging from 0.5 mm² to 4 mm².
Main attributes 862-532 4-conductor chassis-mount terminal strip;without ground contact;2-pole;black
Connection 1
Actuation type
Push-button
Connectable conductor materials
Copper
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.5 … 4 mm² / 20 … 12 AWG
Fine-stranded conductor; with ferrule; push-in termination
0.75 mm² / 18 AWG
Fine-stranded conductor; with insulated ferrule
0.5 … 1.5 mm² / 20 … 16 AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Pole number
2
Solid conductor
0.5 … 4 mm² / 20 … 12 AWG
Solid conductor; push-in termination
0.75 … 4 mm² / 18 … 12 AWG
Stranded conductor
0.5 … 4 mm² / 20 … 12 AWG
Strip length
10 … 11 mm
Wiring direction
Side-entry wiring
Connection data
Clamping units
8
PE function
without PE contact
Total number of potentials
2
Material data
Color
black
Fire load
0.265 MJ
Flammability class per UL94
V0
Halogen-free
Yes
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
13.8 g
Mechanical data
Marking
plain
Mounting type
Snap-in foot

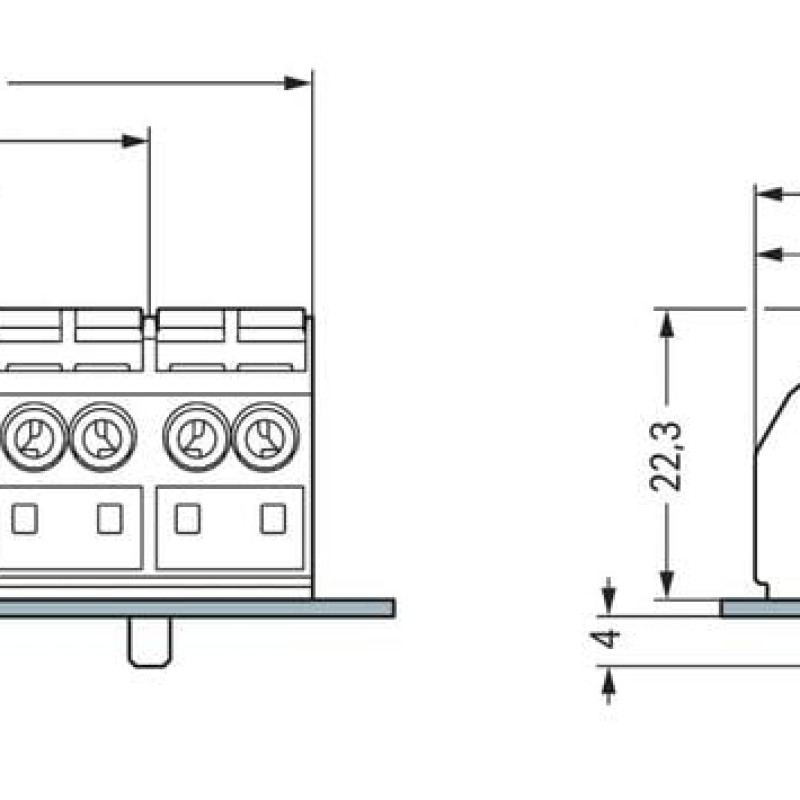

Physical data
Depth
35 mm
Height from the surface
22.3 mm

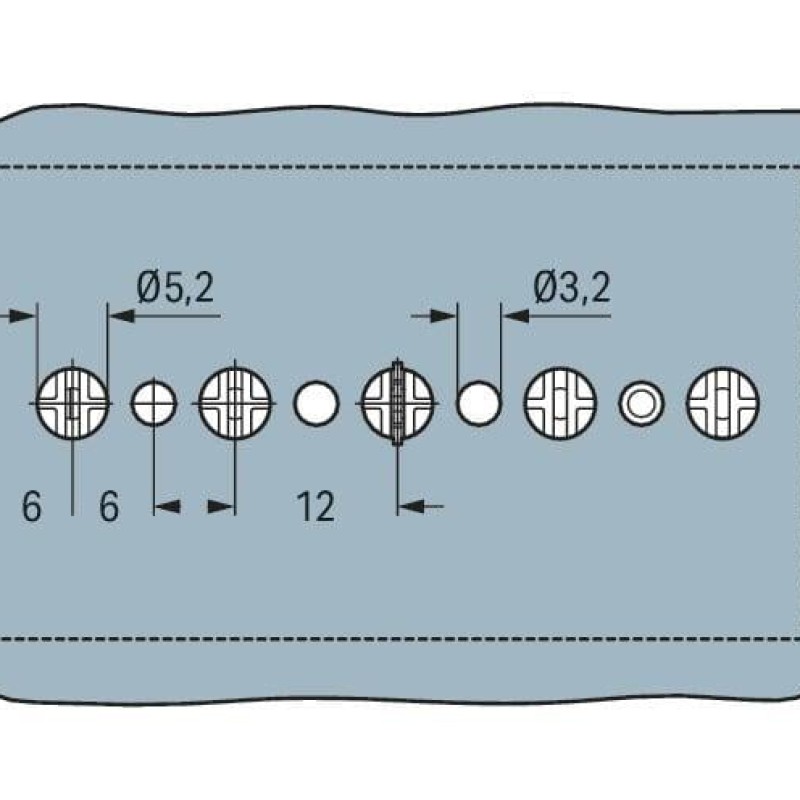

Pin spacing
12 mm
Width
24 mm
Reviews about 862-532 4-conductor chassis-mount terminal strip;without ground contact;2-pole;black
0
There are no reviews for this product.
Questions and Answers (FAQ) 862-532 4-conductor chassis-mount terminal strip;without ground contact;2-pole;black
There are no questions about this product.
862-532 4-conductor chassis-mount terminal strip;without ground contact;2-pole;black
Article:862-532
53.44 грн.
