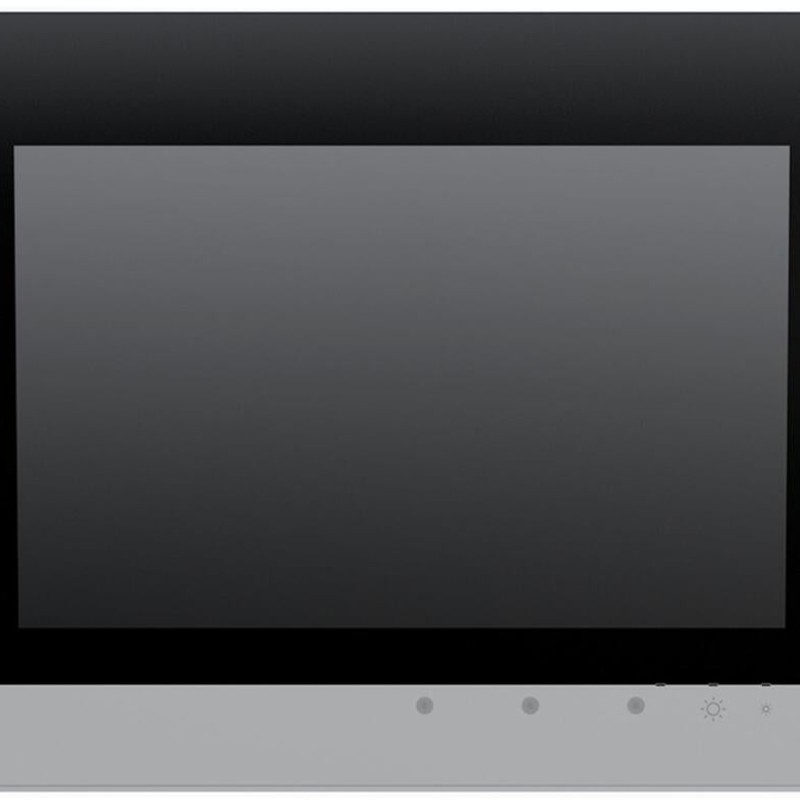

Description 762-4304/8000-002 Touch Panel 600;25.7 cm (10.1");1280 x 800 pixels
PIO3 hardware configuration
- 2 x ETHERNET port for connecting to field devices and the engineering tool
- 2 x USB port for optional connection of a USB stick, mouse or keyboard
- Audio interface for connecting a headphone or loudspeaker
- CAN for controlling field devices
- RS-232/485 interface for controlling field devices equipped with a serial interface
- 4 x digital input/output for reading/triggering digital signals
- Power-failure-proof storage component
Main attributes 762-4304/8000-002 Touch Panel 600;25.7 cm (10.1");1280 x 800 pixels
Connection data
Connection technology: communication/fieldbus
Modbus (TCP, UDP): 2 x RJ-45; EtherNet/IPTM: 2 x RJ-45; CANopen: 1 x D-sub 9 plug; Modbus (UDP): 2 x RJ-45; RS-232 + RS-485/-422 serial interface: 1 x D-sub 9 socket; USB: 2 x USB 2.0 host (type A)
Connection technology: supply
1 x Included female connector (734-103) with three CAGE CLAMP® connections
Environmental requirements
Ambient temperature (operation)
-20 … +55 °C (when mounted vertically; −20 … +50 °C, other mounting positions)
Ambient temperature (storage)
-20 … +80 °C
Fire load
0.003 MJ
Mounting type
Clamping elements (included) or VESA mount (4 x M4x8)
Note on protection type
IP65 (front side); IP20 (rear side), per EN 60529
Protection type
IP65
Relative humidity (without condensation)
90 %
Material data
Fire load
0.003 MJ
Weight
1602 g
Mechanical data
Mounting type
Clamping elements (included) or VESA mount (4 x M4x8)
Physical data
Depth
78 mm
Height
223 mm
Panel cutout (W x H)
(278 x 208) mm
Width
293 mm
Technical data
Brightness
800 cd/m2
Communications
Web browser (HTML5)
Contrast ratio
800:1
Control Elements
Resistive touch panel, two capacitive keys, proximity sensor
Data memory
128 MB
Display
Resistive touchscreen
Display colors
16 million colors
Display diagonal
25.7 cm (10.1 inches)
ETHERNET protocols
SSH
Graphics resolution
(1280 x 800) px
Indicators
Three-color LED (red, green, blue)
Internal memory (flash)
4096 MB
Main memory (RAM)
2,048 MB
Non-volatile software memory
128. kbyte
Operating power
11.8 W, without USB load; 17.0 W, with USB load
Operating system
Real-time Linux (with PREEMPT_RT patch)
Processor
ARM® Cortex® A9 Quad-Core 1.0 GHz
Program memory
32 MB
Programming environment
CODESYS V3.5, Firmware Release 24 or higher
Supply voltage
24 VDC, SELV (18 … 31.2 V); with reverse voltage protection
Type of memory card
microSD (max. 2 GB); microSDHC (max. 32 GB)
Viewing angle (horizontal/vertical)
85° / 85°
Visualization
Web-Visu
