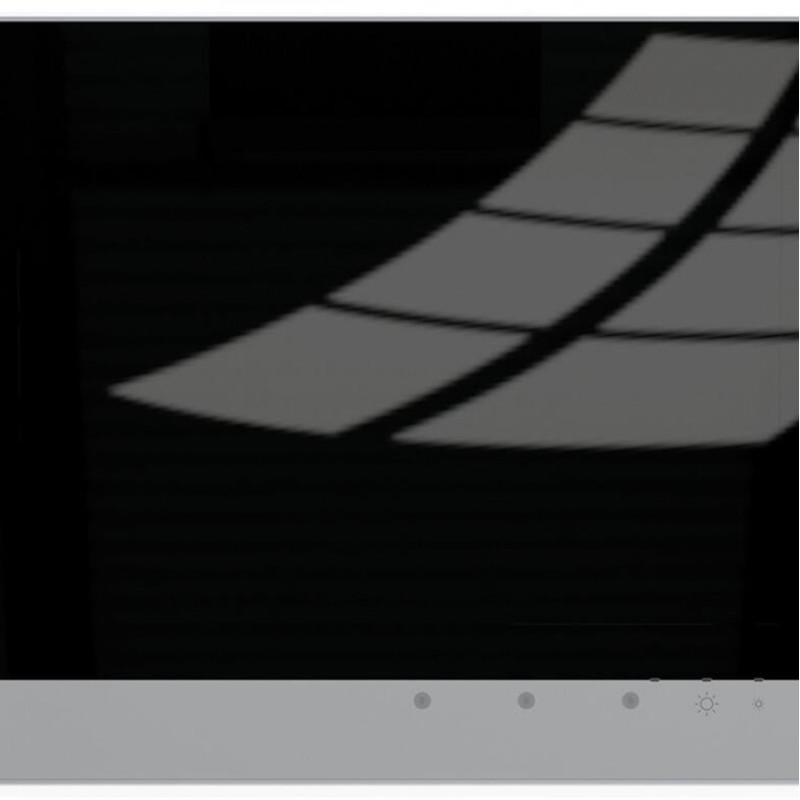

Description 762-5304/8000-002 Touch Panel 600;25.7 cm (10.1");1280 x 800 pixels
PIO3 hardware configuration
- 2 x ETHERNET port for connecting to field devices and the engineering tool
- 2 x USB port for optional connection of a USB stick, mouse or keyboard
- Audio interface for connecting a headphone or loudspeaker
- CAN for controlling field devices
- RS-232/485 interface for controlling field devices with a serial interface
- 4 x digital input/output for reading/triggering digital signals
- Power-failure-proof storage component
Main attributes 762-5304/8000-002 Touch Panel 600;25.7 cm (10.1");1280 x 800 pixels
Connection data
Connection technology: communication/fieldbus
Modbus (TCP, UDP): 2 x RJ-45; EtherNet/IPTM: 2 x RJ-45; CANopen: 1 x D-sub 9 plug; Modbus (UDP): 2 x RJ-45; RS-232 + RS-485/-422 serial interface: 1 x D-sub 9 socket; USB: 2 x USB 2.0 host (type A)
Connection technology: supply
1 x Included female connector (734-103) with three CAGE CLAMP® connections
Environmental requirements
Ambient temperature (operation)
-20 … +55 °C (when mounted vertically; −20 … +50 °C, other mounting positions)
Ambient temperature (storage)
-20 … +80 °C
Fire load
0.003 MJ
Mounting type
Clamping elements (included) or VESA mount (4 x M4x8)
Note on protection type
IP65 (front side); IP20 (rear side), per EN 60529
Protection type
IP65
Relative humidity (without condensation)
90 %
Material data
Fire load
0.003 MJ
Weight
1689 g
Mechanical data
Mounting type
Clamping elements (included) or VESA mount (4 x M4x8)
Physical data
Depth
78 mm
Height
223 mm
Panel cutout (W x H)
(278 x 208) mm
Width
293 mm
Technical data
Brightness
800 cd/m2
Communications
Web browser (HTML5)
Contrast ratio
800:1
Control Elements
capacitive (glass), 2 capacitive keys, proximity sensor
Data memory
128 MB
Display
Multitouch glass front; Capacitive touchscreen with a glass surface
Display colors
16 million colors
Display diagonal
25.7 cm (10.1 inches)
ETHERNET protocols
SSH
Graphics resolution
(1280 x 800) px
Indicators
Three-color LED (red, green, blue)
Internal memory (flash)
4096 MB
Main memory (RAM)
2,048 MB
Non-volatile software memory
128. kbyte
Operating power
11.8 W, without USB load; 17.0 W, with USB load
Operating system
Real-time Linux (with PREEMPT_RT patch)
Processor
ARM® Cortex® A9 Quad-Core 1.0 GHz
Program memory
32 MB
Programming environment
CODESYS V3.5, Firmware Release 24 or higher
Supply voltage
24 VDC, SELV (18 … 31.2 V); with reverse voltage protection
Type of memory card
microSD (max. 2 GB); microSDHC (max. 32 GB)
Viewing angle (horizontal/vertical)
85° / 85°
Visualization
Web-Visu
