Article: 756-9207/060-000
Brand: Wago
1684.98 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

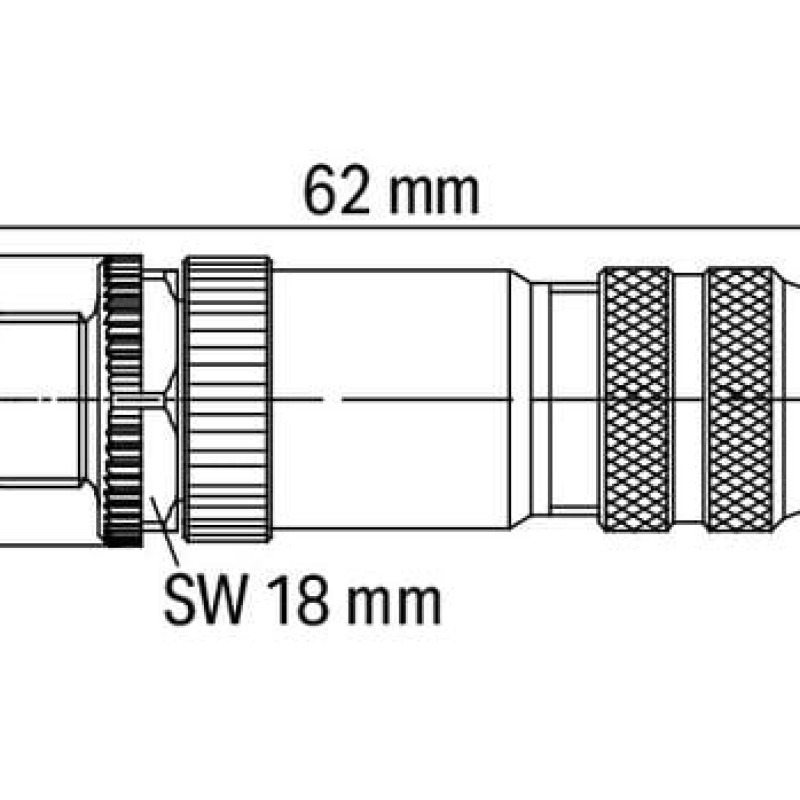

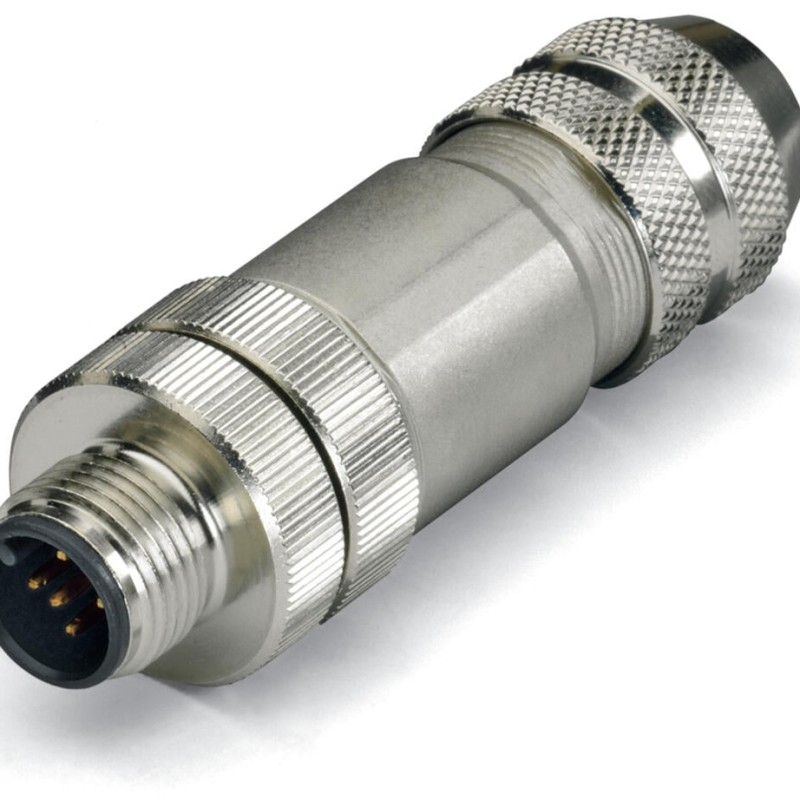

Description 756-9207/060-000 Accessories;M12 plug, axial;5-pole
Main attributes 756-9207/060-000 Accessories;M12 plug, axial;5-pole
Connection data
Connection type 1
Spring clamp technology
Solid conductor
0.14 … 0.5 mm² / 20 AWG
Environmental requirements
Ambient temperature (operation)
-25 … +85 °C
Note on protection type
in locked state
Pollution degree
3
Protection type
IP67
Mechanical data
Connectable sheathed cable diameter
6 … 8 mm
Contact material
CuZn
Contact plating
Gold
Dichtungsmaterial
Sealing ring: neoprene; O-ring: Viton
Housing material
Die-cast zinc, nickel-plated
Mating cycles (max.)
100
Weight
40 g
Technical data
Cable connection direction to mating direction
0 °
Connection point (shielded)
yes
Connection type
M12 plug
Connector interface coding (cable/adapter) 1 1
A-coded
Contact resistance
≤3 mΩ

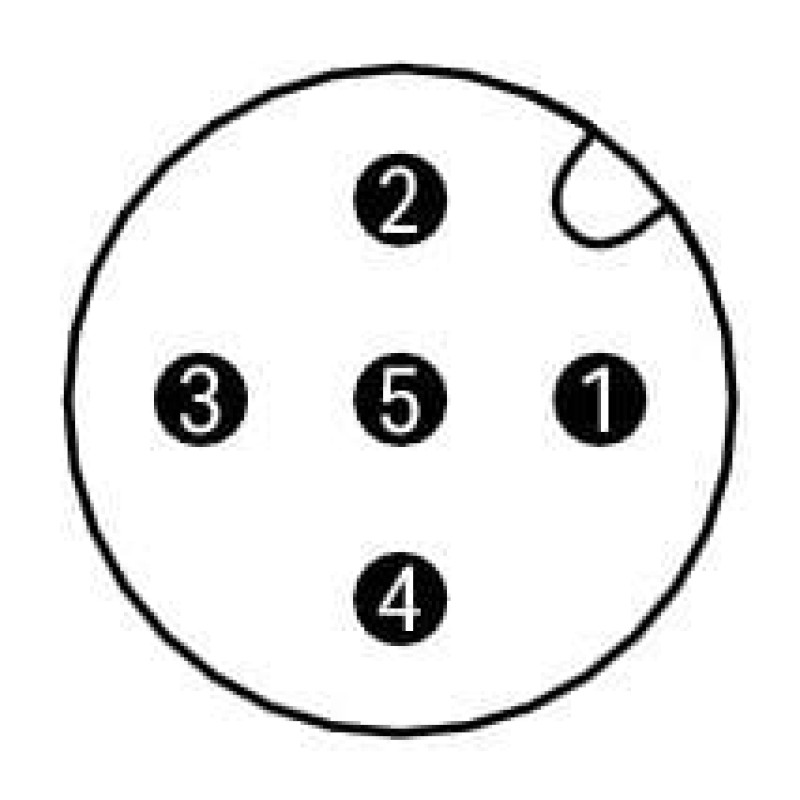

Pole number
5
