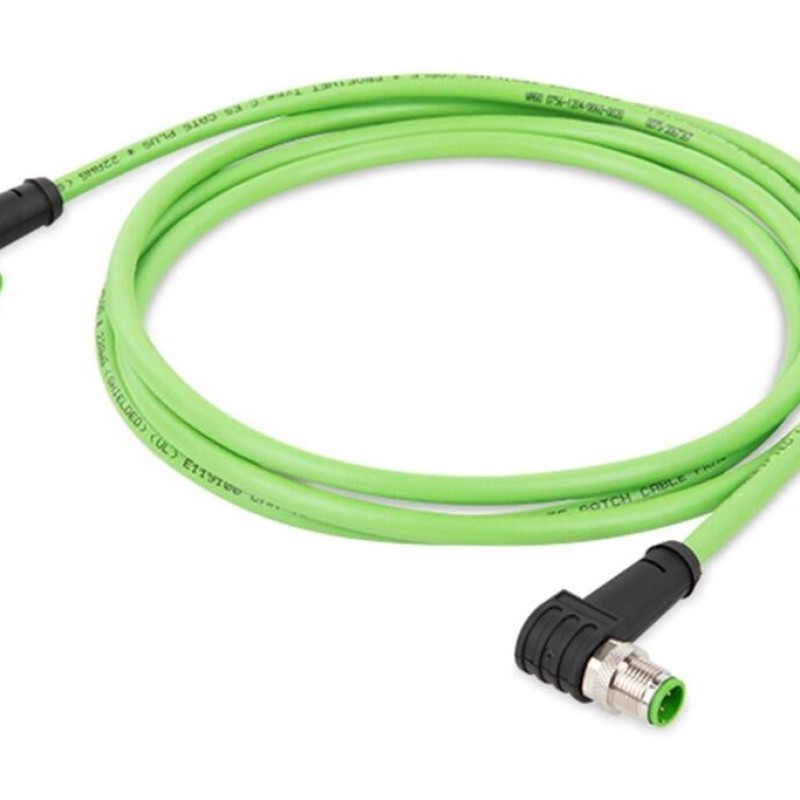

Description 756-1204/060-010 ETHERNET cable;M12D plug; angled;M12D plug; angled;green
Short description:
- PUR GN, halogen-free
- CAT 5e ES
- Suitable for drag chains
- Silicon- and CFC-free
- High resistance to microbes, hydrolysis, oil, ozone, chemicals and UV radiation
- Cable used: UL listed
Main attributes 756-1204/060-010 ETHERNET cable;M12D plug; angled;M12D plug; angled;green
Cable
Cable length
1 m
Conductor configuration
Bare copper wire (7 x 0.25 mm)
Conductor insulation
Halogen-free PE
General screen
Overlapped aluminum-laminated foil and tinned copper braid, optical coverage approx. 85 %
Sheath material
Polyurethane (PUR), halogen-free per VDE 0250 Part 818, flame resistant per IEC 60332-1-2
Type code
02YH(ST)C11Y 2x2x0.75/1.5-100 LI GN VZN FRNC, shielded
Connector
Cable connection direction to mating direction
90 °
Cable connection direction to mating direction (2)
90 °
Connection type
M12 plug - M12 plug
Connector interface coding (cable/adapter) 1 1
D-coded
Connector interface coding (cable/adapter) 2 1
D-coded
Contact material
CuZn
Housing material
TPU/TPU, black (~ RAL 9005)

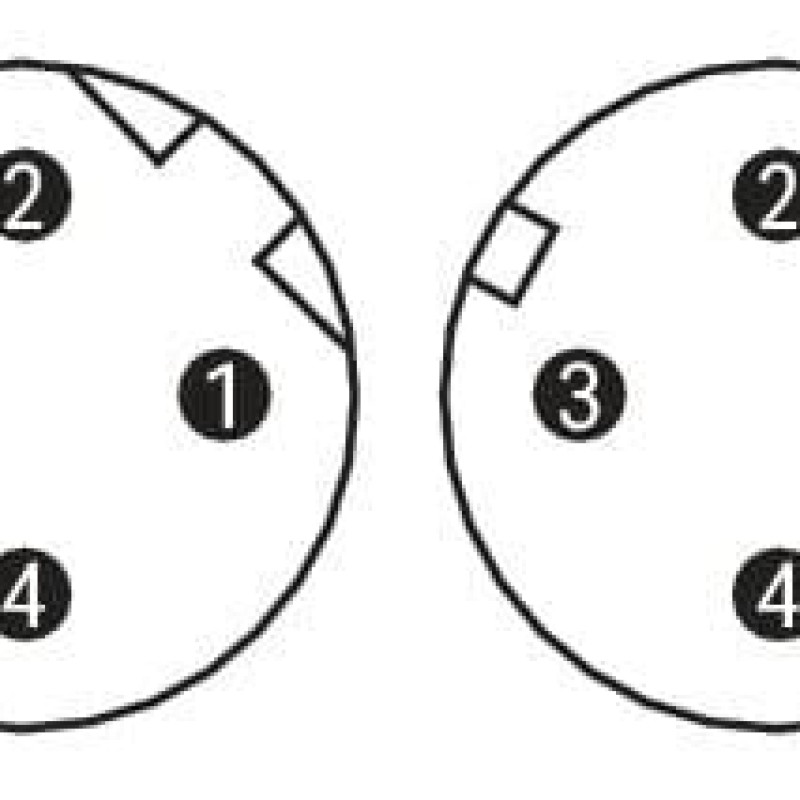

Pole number
4
Tightening torque
1 Nm
Drag chain compatible
Acceleration (min.)
4
Bending cycles
3 Mio.
Bending diameter (min.)
200
Bending radius
Single: 5 x cable diameter (min.); Multiple: 7.5 x cable diameter (min.)
Travel path (horizontal) max.
10
Travel speed (max.)
4
General information
Ambient (operating) temperature (dynamic)
-40 … +70 °C
Ambient (operating) temperature (static)
-40 … +70 °C
Conductor resistance
< 57 Ω/km
Contact resistance
10 mΩ
Insulation resistance
≥ 5 x 108 Ω/km
Operating current
4 A
Operating voltage
250 V
Pollution degree
3/2 per IEC 60664-1
Protection type
IP67
Rated surge voltage
2 kV
