750-1515/040-000 8-channel digital output;24 VDC;0.5 A;dark gray

Name: 750-1515/040-000 8-channel digital output;24 VDC;0.5 A;dark gray
Brand: Wago
Price: 9690.18 UAH
Availability: InStock

In stock

Article: 750-1515/040-000

Brand: Wago

9,690.18 грн.

Found it cheaper?

Short description

This digital output module is a 2-wire device featuring eight channels in a width of just 12 mm (0.47 inch).It transmits binary control signals from the automation device to the connected actuators (e.g., magnetic valves...

Description 750-1515/040-000 8-channel digital output;24 VDC;0.5 A;dark gray

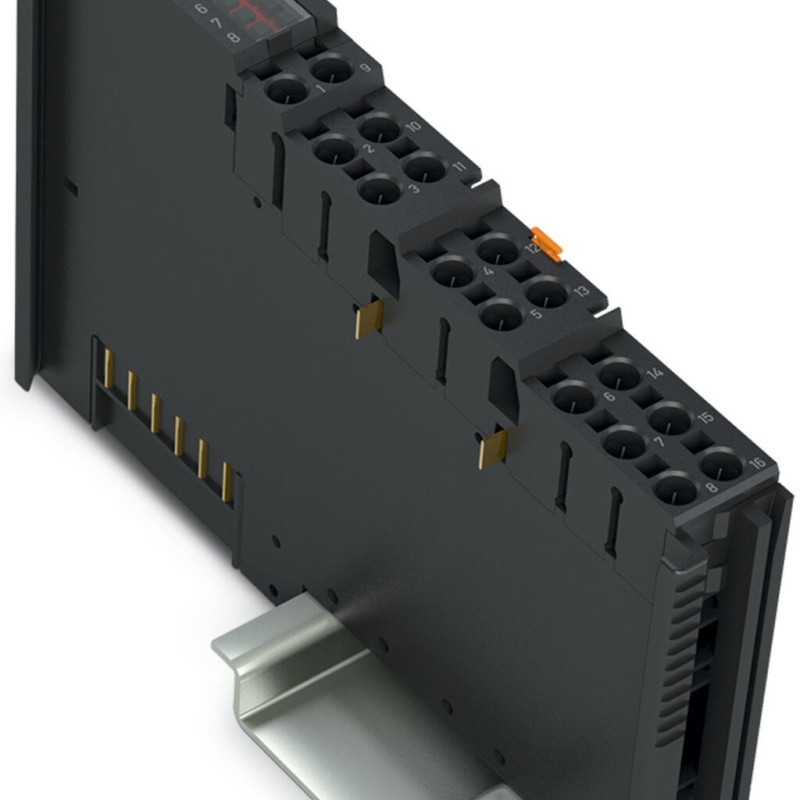

This digital output module is a 2-wire device featuring eight channels in a width of just 12 mm (0.47 inch).

It transmits binary control signals from the automation device to the connected actuators (e.g., magnetic valves, contactors, transmitters, relays or other electrical loads).

The module features Push-in CAGE CLAMP^® connections enabling solid conductors to be connected by simply pushing them in.

A green LED indicates the signal state of each channel.

Field and system levels are electrically isolated.

An operating tool with a 2.5 mm blade (210-719) is required to open the Push-in CAGE CLAMP^® connections.

The device is ideal for operation in extreme environments thanks to:

An extended temperature range
Greater immunity to impulse voltages and electromagnetic interference
Higher vibration and shock resistance

Main attributes 750-1515/040-000 8-channel digital output;24 VDC;0.5 A;dark gray

Connection data

Connection technology: inputs/outputs 16 x Push-in CAGE CLAMP^® (outputs)

Connection type 1 Output

Fine-stranded conductor 0.25 … 1.5 mm² / 24 … 16 AWG

Solid conductor 0.25 … 1.5 mm² / 24 … 16 AWG

Strip length 8 … 9 mm

Environmental requirements

Ambient temperature (operation) -40 … +70 °C

Ambient temperature (storage) -40 … +85 °C

EMC emission of interference per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5

EMC immunity to interference per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;
EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994

Exposure to pollutants per IEC 60068-2-42 and IEC 60068-2-43

Mounting position Horizontal left, horizontal up, vertical top and vertical bottom

Operating altitude without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)

Permissible H₂S contaminant concentration 10 ppm

Permissible SO₂ contaminant concentration 25 ppm

Pollution degree 2 per IEC 61131-2

Protection type IP20

Relative humidity (with condensation) Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)

Relative humidity (without condensation) 95 %

Shock resistance per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373

Vibration resistance per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373

Material data

Color dark gray

Conformity marking CE

Fire load 0.835 MJ

Housing material Polycarbonate; polyamide 6.6

Weight 48 g

Mechanical data

Mounting type DIN-35 rail

Physical data

Depth 69 mm

Depth from upper-edge of DIN-rail 61.8 mm

Height 100 mm

Width 12 mm

Technical data

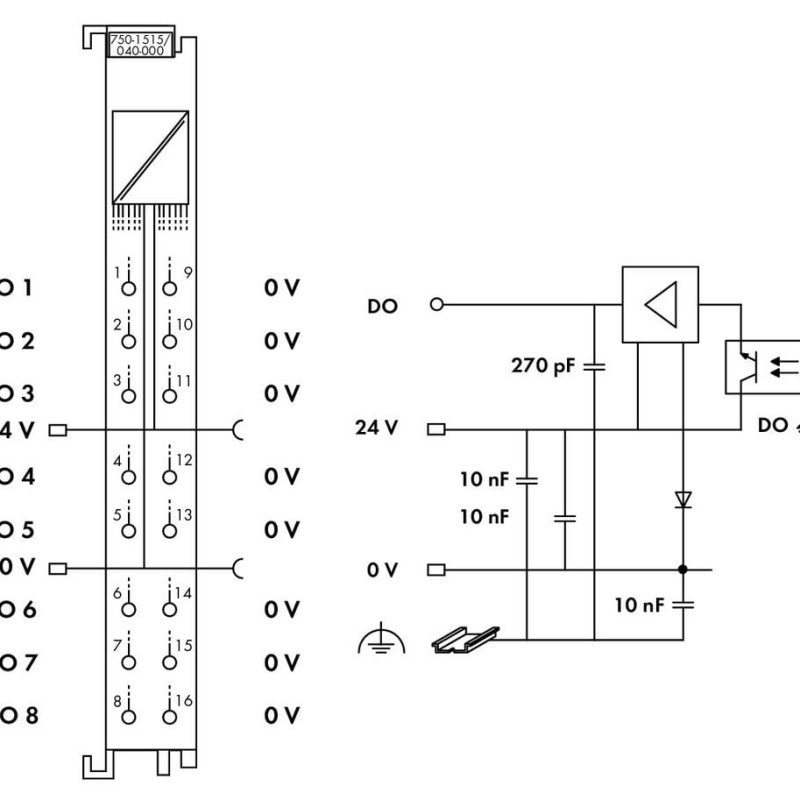

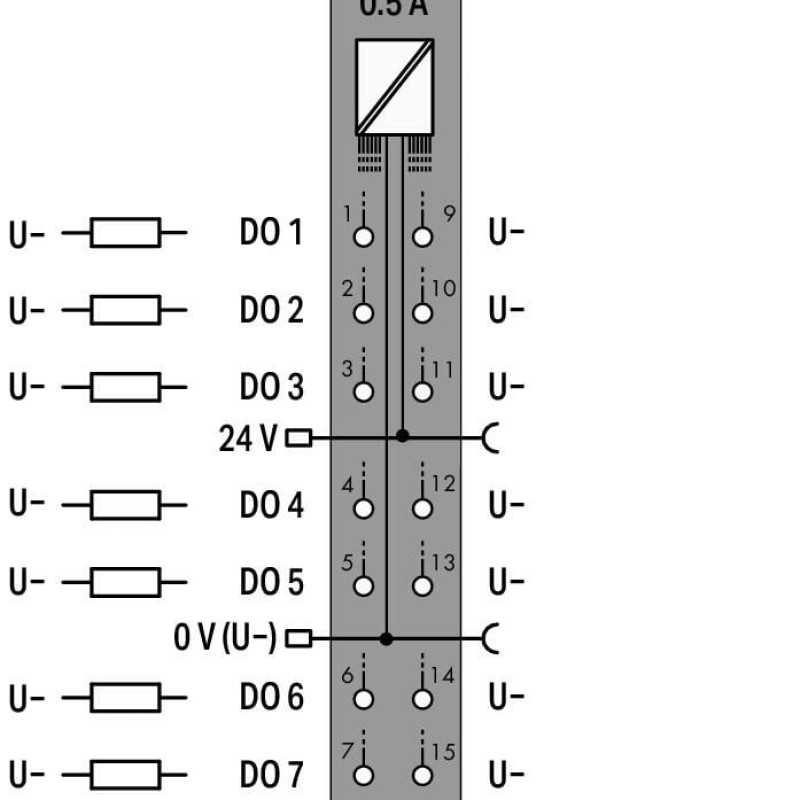

Actuator connection 8 x (2-wire)

Current carrying capacity (power jumper contacts) 10 A

Current consumption (5 V system supply) 20 mA

Current consumption, field supply (module with no external load) 15 mA

Derating Derating (supply voltage):
Ambient temperatures under laboratory conditions: (−25 … +30 %);
for −40 … +55 °C: 24 V (−25 … +20 %);
for +55 … +70 °C: 24 V (−25 … +10 %);
Lower limit in all temperature ranges: −27.5 % (including 15 % resi

Dielectric strength 510 VAC / 775 VDC; per EN 60870-2-1

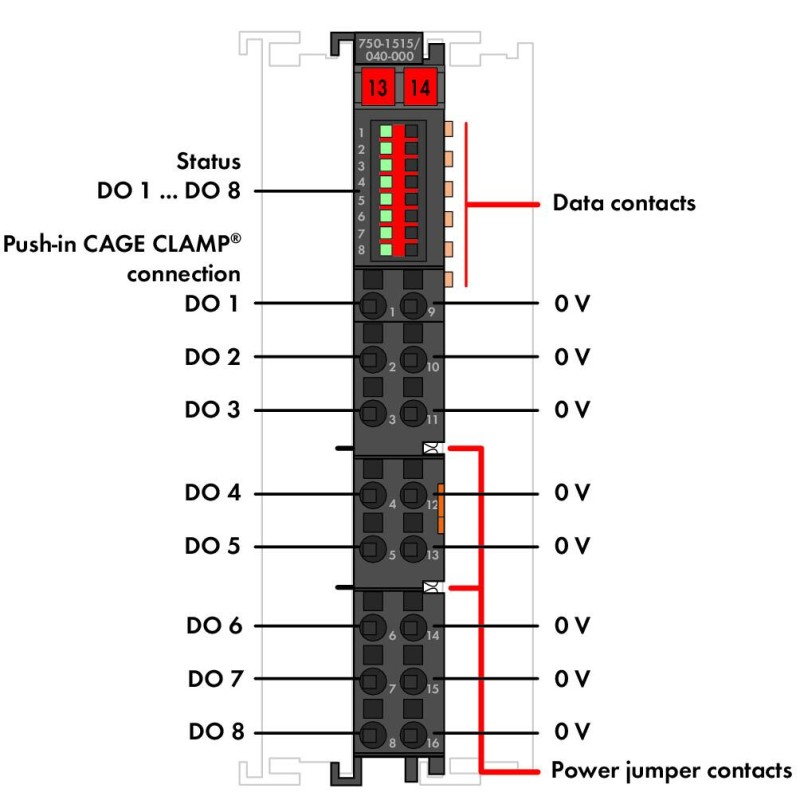

Indicators LED (1-8) green: Status DO 1 … DO 8

Interference-free with safety function Yes

Load type Resistive, inductive, lamp load

Number of digital outputs 8

Number of incoming power jumper contacts 2

Number of outgoing power jumper contacts 2

Output characteristic high-side switching

Output current short-circuit-protected

Output current per channel 0.5 A

Output data width (internal) max. 8 Bit

Rated surge voltage 1 kV

Signal type Digital

Signal type (voltage) 24 VDC

Supply voltage (field) 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact); Derating must be observed!

Supply voltage (system) 5 VDC; via data contacts

Switching frequency (max.) 1 kHz

Total number of channels (module) 8
