Article: 787-2810
Brand: Wago
4,242.32 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

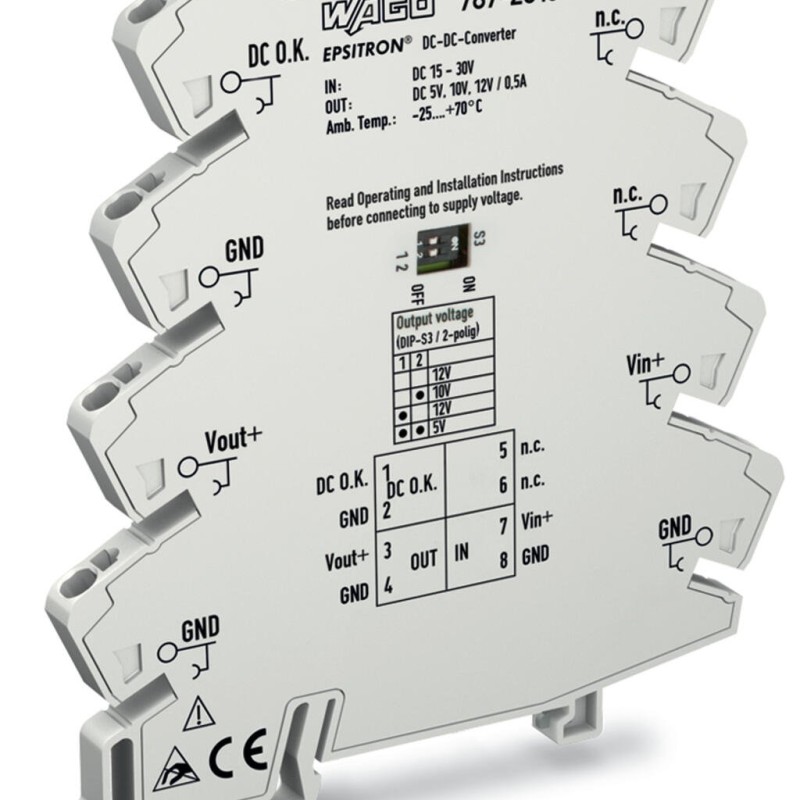

Description 787-2810 DC/DC Converter;24 VDC input voltage;5/10/12 VDC adjustable output voltage
Features:- DC/DC converter in a compact 6 mm housing
- DC/DC converters (787-28xx) supply devices with 5, 10, 12 or 24 VDC from a 24 or 48 VDC power supply with an output power up to 12 W.
- Output voltage monitoring via DC OK signal output
- Can be commoned with 857 and 2857 Series devices
- Comprehensive range of approvals for multiple applications
Main attributes 787-2810 DC/DC Converter;24 VDC input voltage;5/10/12 VDC adjustable output voltage
Circuit protection
Internal fuse
No
Connection data
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.34 … 2.5 mm² / 22 … 14 AWG
Number of jumper slots
8
Solid conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Strip length
9 … 10 mm
WAGO connector
WAGO 857 Series
Efficiency/power losses
Efficiency (typ.)
82.5 % (at nominal input voltage and nominal output)
Power loss Pₗ
≤ 0.21 W; ≤ 0.7 W (nominal load)
Environmental requirements
Ambient temperature (operation)
-25 … +70 °C
Ambient temperature (storage)
-40 … +85 °C
Climatic category
3K3 (per EN 60721; except for low air pressure)
Derating
No derating
Relative humidity
95% (no condensation permissible)
Input
Input current Iₗ
≤ 0.5 A
Input voltage range
DC 15 … 30 V
Inrush current
≤ 0.5 A (at nominal input voltage)
Nominal input voltage Uᵢ ₙₒₘ
DC 24 V
Nominal mains frequency range
0 Hz
Material data
Fire load
0.363 MJ
Weight
36.4 g
Mechanical data
Mounting type
DIN-35 rail
Output
Deviation
≤ 3 %
Nominal output current Iₒ ₙₒₘ
0.5 A
Nominal output power
2.5 W
Nominal output voltage Uₒ ₙₒₘ
DC 5 / 10 / 12 V (Adjustable via DIP switch)
Output voltage range
±3 %
Residual ripple
≤ 20 mV (peak-to-peak)
Physical data
Depth from upper-edge of DIN-rail
97.8 mm
Height
94 mm
Width
6 mm
Safety and protection
MTBF
> 1,800,000 h
Open-circuit-proof
Yes
Parallel operation
No
Pollution degree
2
Protection class
III
Protection type
IP20; per EN 60529
Reverse voltage protection
yes
Series operation
No
Short-circuit-protected
Yes
Signaling and communication
Operation status indicator
Red LED (short circuit)
Signaling
1 x Short circuit LED (red)
Standards and specifications
Conformity marking
CE
Standards/specifications
UL 61010-2-201
