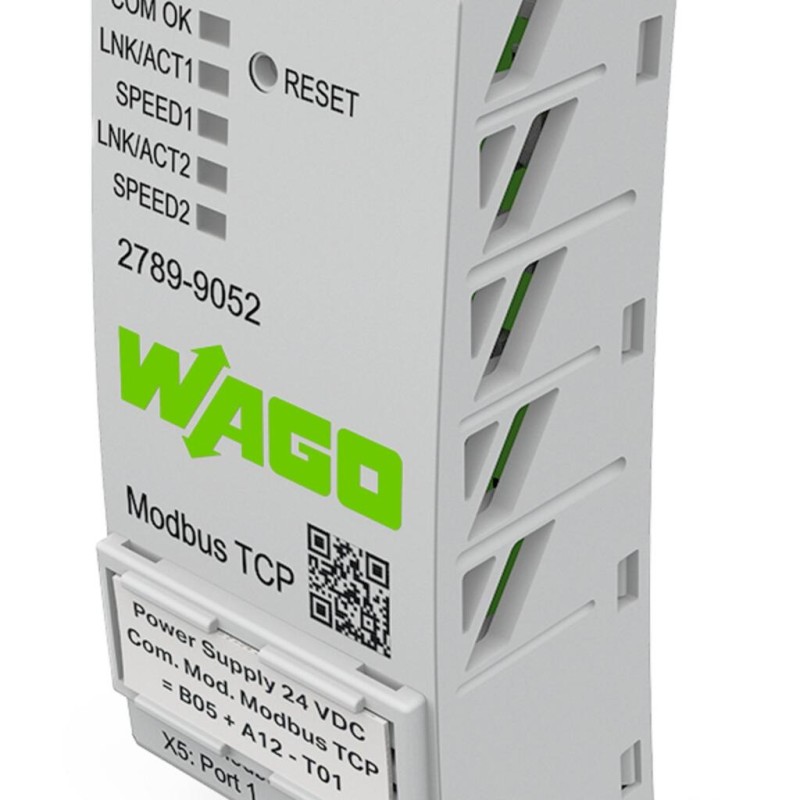

Description 2789-9052 Communication module;Modbus TCP;communication capability
Features:- WAGO's communication module snaps onto a Pro 2 Power Supply's communication interface.
- Modbus TCP/UDP
- Suitable for monitoring the subordinate power supply
- Function blocks for standard control systems available upon request
- Integrated ETHERNET switch for convenient wiring
- Marker slot for WAGO marking cards (WMB) and WAGO marking strips
Main attributes 2789-9052 Communication module;Modbus TCP;communication capability
Connection data
Cable length (max.)
100 m
Connection type 1
Modbus TCP/UDP
Removable connector
2 x RJ-45
Transmission environment
ETHERNET: Twisted pair S-UTP; 100 Ω; Cat. 5
Environmental requirements
Ambient temperature (operation)
-40 … +55 °C
Ambient temperature (storage)
-40 … +85 °C
Operating altitude (max.)
5000 m
Relative humidity
5 … 95 % (no condensation permissible)
Input
Nominal input voltage Uᵢ ₙₒₘ
DC 5 V (SELV)
Rated input current at Uₙ
210 mA (typ.)
Material data
Weight
45 g
Mechanical data
Mounting type
Snaps onto a Pro 2 Power Supply's communication interface (X4)
Physical data
Depth
22 mm
Height
80 mm
Note (dimensions)
Depth in mounted state
Width
35 mm
Safety and protection
Insulation type
Functional insulation
Overvoltage category
III
Pollution degree
2
Protection class
III
Protection type
IP20; per EN 60529
Test voltage (field bus)
0.775 kVAC; 50 Hz; 1 min
Signaling and communication
Communications
Modbus (TCP, UDP)
Configuration parameters
Web-Based Management
ETHERNET protocols
SNTP
Signaling
1 x LED SPEEDx (orange)
Transmission medium (communication/fieldbus)
ETHERNET: Twisted pair S-UTP; 100 Ω; Cat. 5
Transmission speed
100 MBd ( (ETHERNET: 10/100 Mbit/s))
Visualization
Web-Visu
Standards and specifications
Conformity marking
CE
Standards/specifications
UL 61010-2-201
