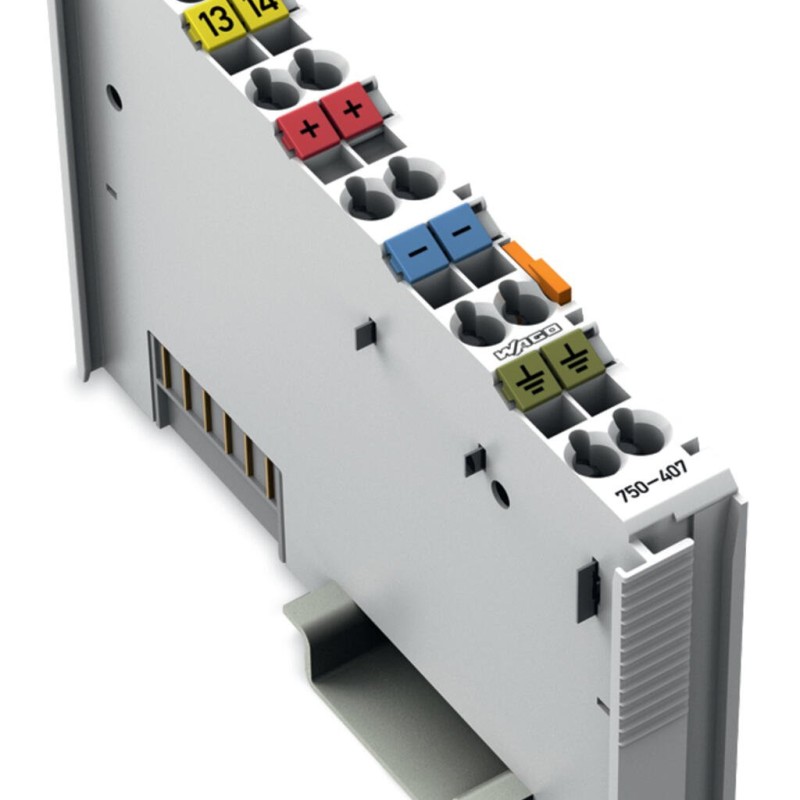

Description 750-407 2-channel digital input;220 VDC;light gray
This digital input module receives control signals from field devices (e.g., sensors).
Each input module has a 3.0 ms noise-rejection filter.
Field and system levels are electrically isolated.
Notice:An additional supply module must be added for 220 VDC supply!
Main attributes 750-407 2-channel digital input;220 VDC;light gray
Connection data
Connection technology: inputs/outputs
8 x CAGE CLAMP® (inputs)
Connection type 1
Input
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Solid conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Strip length
8 … 9 mm
Environmental requirements
Ambient temperature (operation)
0 … +55 °C
Ambient temperature (storage)
-40 … +85 °C
EMC emission of interference
per EN 61000-6-3
EMC immunity to interference
per EN 61000-6-2
Exposure to pollutants
per IEC 60068-2-42 and IEC 60068-2-43
Mounting position
Horizontal left, horizontal right, horizontal up, horizontal down, vertical top and vertical bottom
Operating altitude
0 … 2000 m / 0 … 6562 ft
Permissible H₂S contaminant concentration
10 ppm
Permissible SO₂ contaminant concentration
25 ppm
Relative humidity (without condensation)
95 %
Shock resistance
15g per IEC 60068-2-27
Vibration resistance
per IEC 60068-2-6
Material data
Color
light gray
Conformity marking
CE
Fire load
1.115 MJ
Housing material
Polycarbonate; polyamide 6.6
Weight
47 g
Mechanical data
Mounting type
DIN-35 rail
Pluggable connector
fixed
Physical data
Depth
69.8 mm
Depth from upper-edge of DIN-rail
62.6 mm
Height
100 mm
Width
12 mm
Safety and protection
Pollution degree
2 per IEC 61131-2
Protection type
IP20
Technical data
Current carrying capacity (power jumper contacts)
10 A
Current consumption (5 V system supply)
5 mA

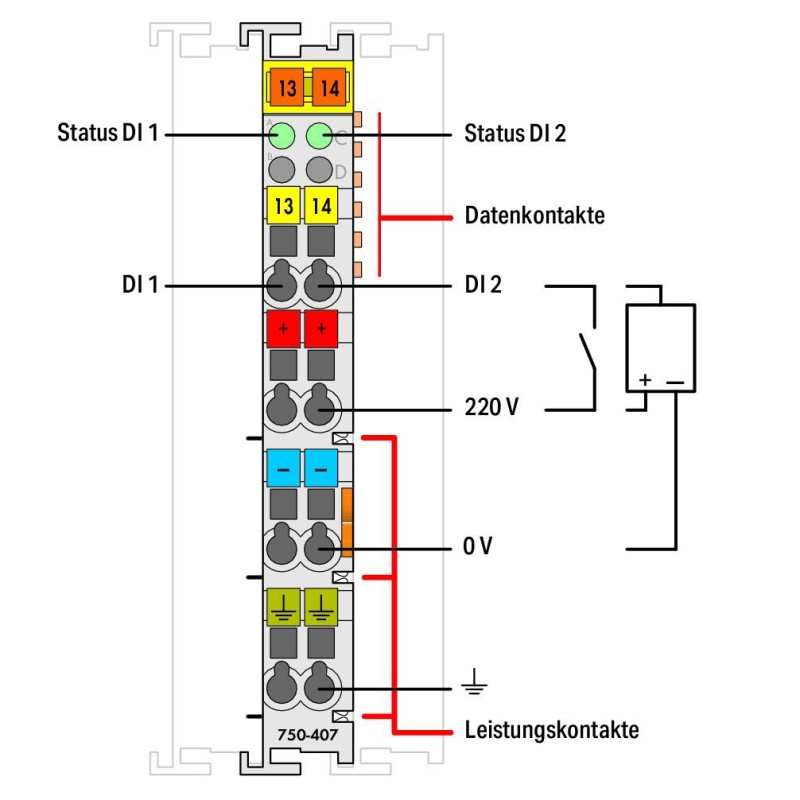

Indicators
LED (A, C) green: Status DI 1, DI 2
Input characteristic
high-side switching
Input current per channel for signal (1) typ.
1.2 mA
Input data width (internal) max.
2 Bit
Input filter (digital)
3 ms
Number of digital inputs
2
Number of incoming power jumper contacts
3
Number of outgoing power jumper contacts
3

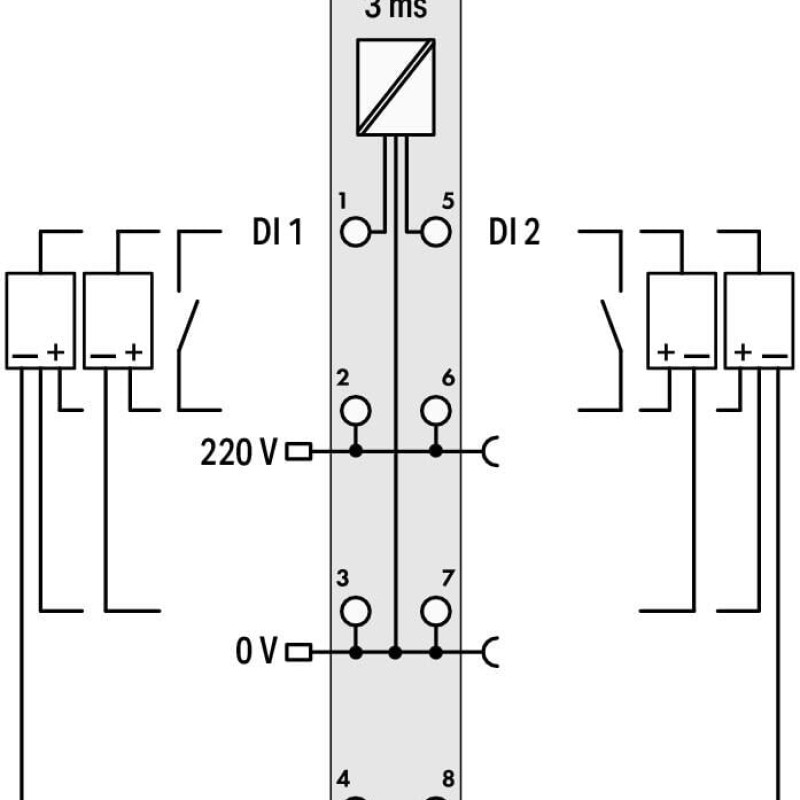

Sensor connection
2 x (2-wire, 3-wire, 4-wire)
Sensor supply
DC 220 V
Signal type
Digital
Signal type (voltage)
220 VDC
Supply voltage (field)
220 VDC (-20 … +25 %); via power jumper contacts (power supply via blade contact; transmission (supply voltage field side only) via spring contact)
Supply voltage (system)
5 VDC; via data contacts
Total number of channels (module)
2
Voltage range for signal (0)
−3 … +100 VDC
Voltage range for signal (1)
160 … 286 VDC
