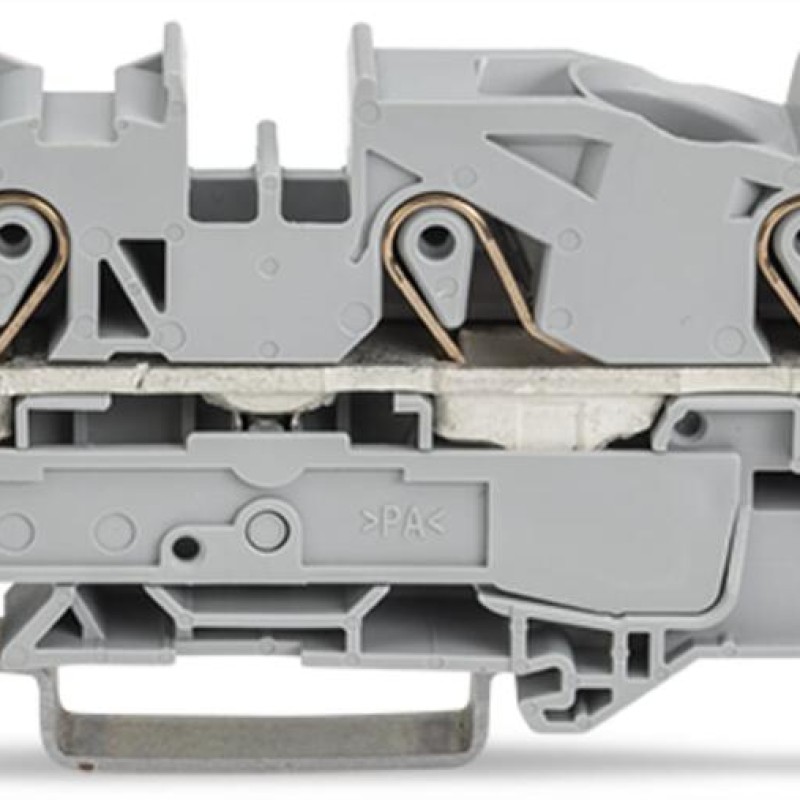

2016-1301 3-conductor through terminal block;16 mm²;suitable for Ex e II applications;gray

Name: 2016-1301 3-conductor through terminal block;16 mm²;suitable for Ex e II applications;gray
Brand: Wago
Price: 156.66 UAH
Availability: InStock

In stock

Article: 2016-1301

Brand: Wago

156.66 грн.

Found it cheaper?

Short description

Description 2016-1301 3-conductor through terminal block;16 mm²;suitable for Ex e II applications;gray

Easily, quickly and safely connect conductors with this through terminal block (item number 2016-1301). Strip lengths must be between 18 and 20 mm when connecting conductors to this through terminal block. Whether for industrial or building applications, you can use our through terminal blocks to connect electrical conductors quickly and safely. We offer variants for both classic through-wiring and potential distribution. Featuring conductor terminals along with Push-in CAGE CLAMP®, this product outperforms the competition. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. The dimensions are (12 x 91.8 x 43.5) mm (width x height x depth). Depending on the type of conductor, this through terminal block is ideal for conductor cross sections ranging from 0.5 mm² to 16 mm².

An operating tool is used to operate this through rail-mount terminal block. Our TOPJOB® S rail-mount terminal blocks guarantee secure electrical connections in different industrial applications and modern building installations. They simplify wiring, as you can quickly plug in solid, stranded, and fine-stranded conductors with ferrules. This product is designed for specific Ex applications (please refer to the product datasheet).

Main attributes 2016-1301 3-conductor through terminal block;16 mm²;suitable for Ex e II applications;gray

Connection 1

Actuation type Operating tool

Connectable conductor materials Copper

Connection technology Push-in CAGE CLAMP^®

Fine-stranded conductor 0.5 … 25 mm² / 20 … 4 AWG

Fine-stranded conductor; with ferrule; push-in termination 6 … 16 mm² / 10 … 6 AWG

Fine-stranded conductor; with insulated ferrule 0.5 … 16 mm² / 20 … 6 AWG

Nominal cross-section 16 mm²

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
AWG ratings were converted according to IEC.

Solid conductor 0.5 … 16 mm² / 20 … 6 AWG

Solid conductor; push-in termination 6 … 16 mm² / 14 … 6 AWG

Strip length 18 … 20 mm

Wiring direction Front-entry wiring

Connection data

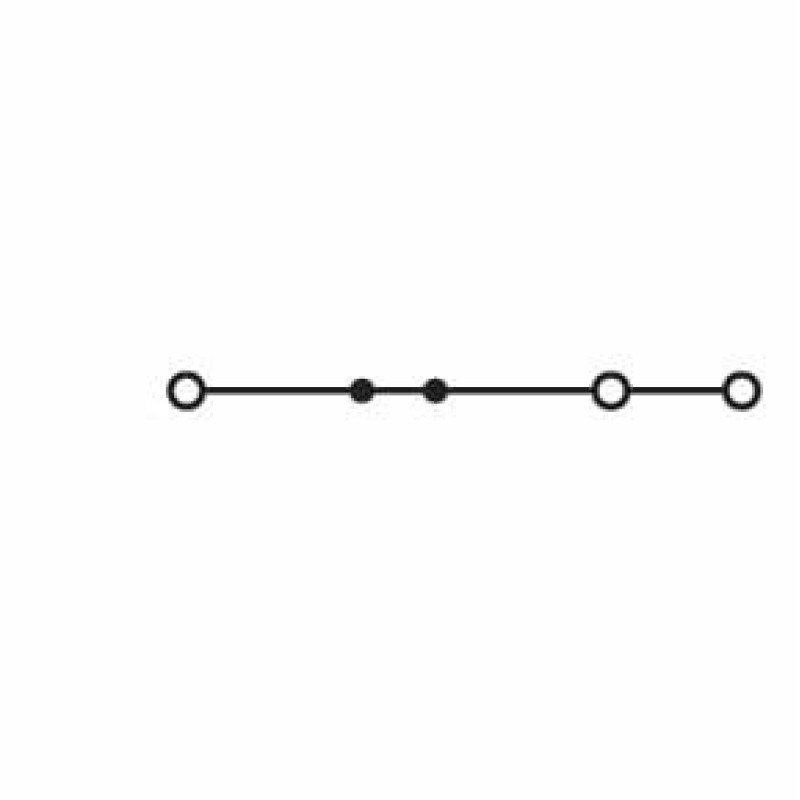

Clamping units 3

Number of jumper slots 2

Number of levels 1

Total number of potentials 1

Environmental requirements

Continuous operating temperature -60 … +105 °C

Processing temperature -35 … +85 °C

Environmental Testing (Environmental Conditions)

Acceleration 5g (highest test level used for all axes)

Extended test scope: Monitoring for contact faults/interruptions Passed

Extended test scope: Voltage drop measurement before and after each axis Passed

Frequency f₁= 5 Hz to f₂= 150 Hz

Function test with noise-like vibration Test passed according to Section 8 of the standard

Monitoring for contact faults/interruptions Passed

Number of shocks per axis 3 pos. und 3 neg.

Shock duration 30 ms

Shock form Half sine

Shock test Test passed according to Section 10 of the standard

Simulated service life test through increased levels of noise-like vibration Test passed according to Section 9 of the standard

Spectrum/Installation location Service life test, Category 1, Class A/B

Test directions X, Y and Z axes

Test duration per axis 5 h

Test procedure (Railway applications – Roll DIN EN 61373 (VDE 0115-0106):2011-04

Test specification Railway applications – Rolling stock – Electronic equipment DIN EN 50155 (VDE 0115-200):2022-06

Vibration and shock stress for rolling stock equipment Passed

Voltage drop measurement before and after each axis Passed

Material data

Color gray

Fire load 0.485 MJ

Flammability class per UL94 V0

Insulation material (main housing) Polyamide (PA66)

Material group I

Weight 29.7 g

Mechanical data

Marking level Center/side marking

Mounting type DIN-35 rail

Physical data

Depth 43.5 mm

Depth from upper-edge of DIN-rail 36.9 mm

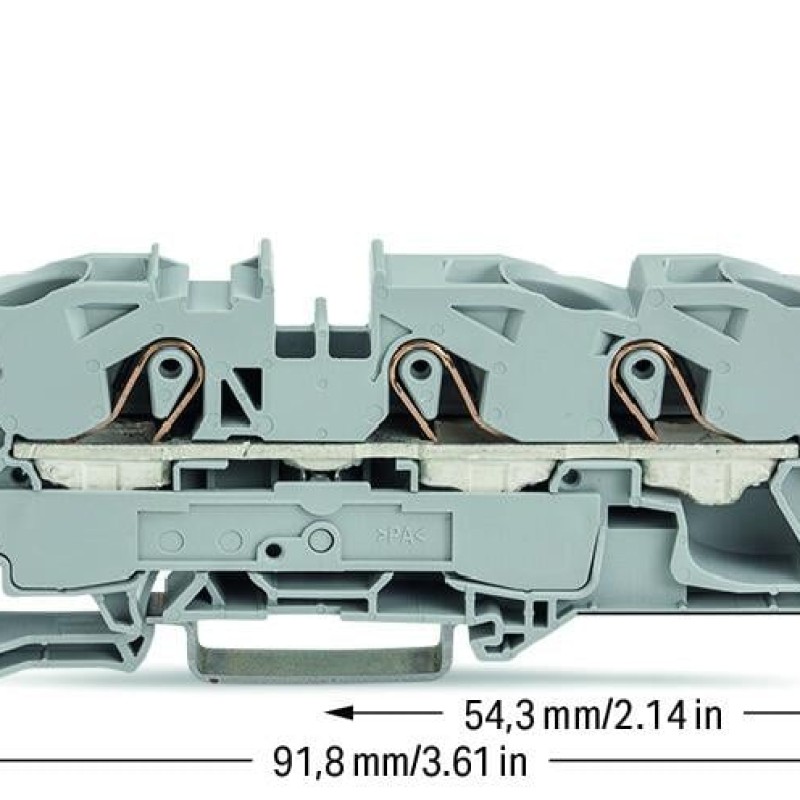

Height 91.8 mm

Width 12 mm
