852-111/000-001 Industrial-ECO-Switch;5-port 100Base-TX;black

Name: 852-111/000-001 Industrial-ECO-Switch;5-port 100Base-TX;black
Brand: Wago
Price: 7881.46 UAH
Availability: OutOfStock

Pre-Order

Article: 852-111/000-001

Brand: Wago

7881.46 грн.

Found it cheaper?

Short description

Description 852-111/000-001 Industrial-ECO-Switch;5-port 100Base-TX;black

This unmanaged industrial ETHERNET switch (852-111/000-001) has 5 ETHERNET ports for easily setting up small- to medium-sized networks. Its slim design paired with a DIN-rail adapter simplifies installation in the control cabinet and provides high vibration and shock resistance.
Additionally, automatic transmission rate detection (auto-negotiation) and automatic identification of the transmit and receive lines (Auto MDI-X) allow simple plug-and-play operation, saving time and money during commissioning.
Features:

5 ETHERNET ports 10/100 Mbit/s Autonegotiation
Front-panel diagnostic LEDs
Supports Auto-MDI/MDI-X functions
Full/half-duplex transfer modes for each port
Store-and-forward switching method
Integrated address look-up table, supports 2000 absolute MAC addresses
Overvoltage protection
IEEE 802.3x flow control in full-duplex mode
Prioritization of PROFINET data packets (EtherType=0x8892) per IEEE802.1p
DIN-35 rail mounting

Main attributes 852-111/000-001 Industrial-ECO-Switch;5-port 100Base-TX;black

Connection data

Connection technology: communication/fieldbus Copper cable: 5 x RJ-45

Connection technology: supply 1 x Built-in male connector: 231-433/001-000; included female connector (MCS Connectors): 231-103/026-000

Environmental requirements

Ambient temperature (operation) -40 … +70 °C

Ambient temperature (storage) -40 … +85 °C

Mounting type DIN-35 rail

Protection type IP30

Relative humidity (without condensation) 95 %

Shock resistance per IEC 60068-2-27

Vibration resistance per IEC 60068-2-6

Mechanical data

Color black

Conformity marking CE

Housing material Sheet steel

Weight 203 g

Physical data

Depth 73.8 mm

Depth from upper-edge of DIN-rail 81 mm

Height 109.2 mm

Width 23.4 mm

Technical data

Communication standards IEEE 802.3x Flow Control

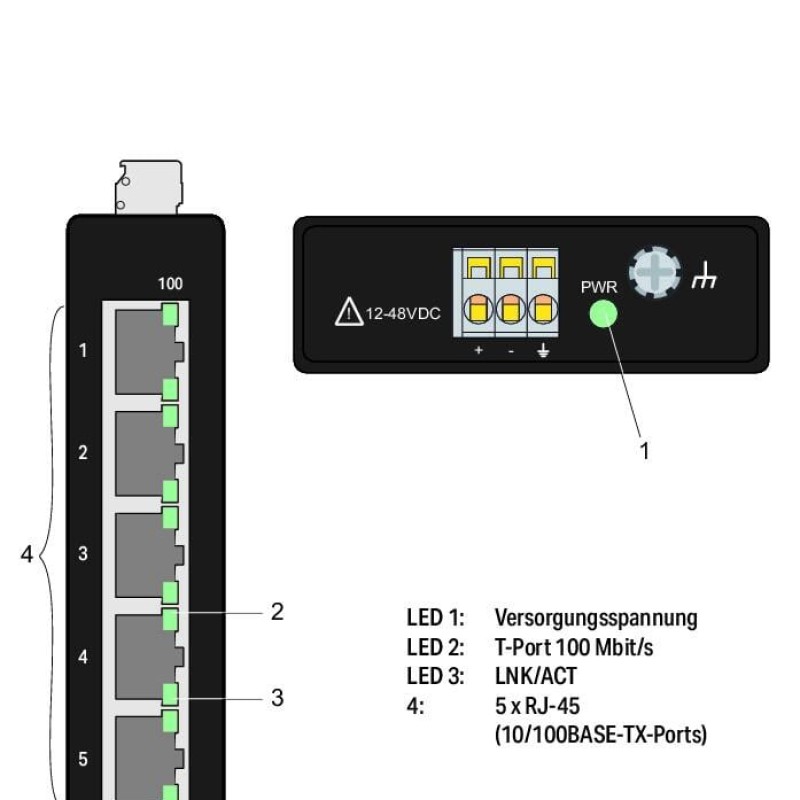

Indicators Device: LED (PWR) green: Power supply; per port: LED (100, LNK/ACT) green: Status 100 Mbps, LNK/ACT port 1 … 5

MAC table (size) 2000 addresses

Number of 100 Mbps ports 5

Power consumption (max.) 2 W

Supply voltage 12 … 48 VDC

Switching mode Store-and-forward; non-blocking

Topology Star

Transmission rate Copper cable: 10/100 Mbit/s
