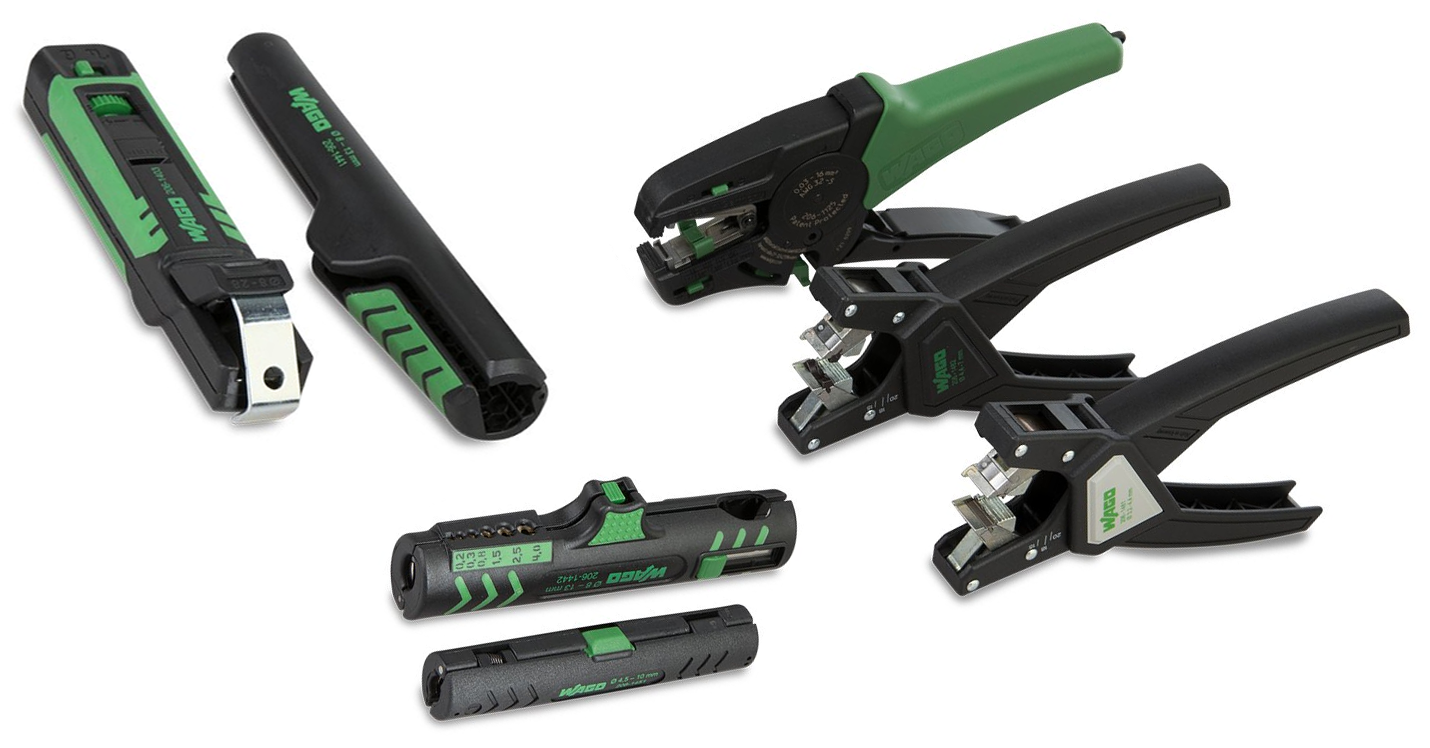

WAGO tools designed for professionals

WAGO Tools, Created for Professionals

Contents:

• Stripping Insulation
• Crimping Cables
• Screwdrivers and tools for working with terminal blocks

In the fast-paced world of electrical projects, tools play a key role in determining the success and efficiency of the work. WAGO tools – the pinnacle of German engineering thought, known for their precision and innovation. WAGO's range of tools includes: specialized crimping tools for ferrules, universal strippers for solid and stranded wires, specialized screwdrivers, and tools for working with terminal blocks.

Digital and automated processes are increasingly defining the daily work of control cabinet production. However, despite all this digitalization, a large part of cabinet manufacturing is still associated with manual assembly! The fact that more than 70% of assembly work is done by hand makes optimizing the placement of mechanical components and wiring even more important. Those who rely on high-quality and functional tools can significantly reduce time and make work processes more efficient.
Stripping insulation or crimping wire ferrules – in all these jobs related to electrical installation in buildings and cabinet assembly, professionals need tools they can trust even in critical situations.

Advantages:

• simple, precise, safe operation;
• time savings and process reliability;
• cost-effectiveness and environmental friendliness.

The production of control cabinets requires a strategy, as almost half of the entire production time is spent on wiring. WAGO offers a full range of accessories designed to speed up and facilitate this process for the technical specialist.

Advantages:

• square gas-tight crimping with WAGO Variocrimp regardless of the user's skill level;
• a wide selection of devices for cutting and stripping various types of wires and cables available on the modern market;
• convenient kits for easy standardization;
• safe and fast troubleshooting in control panels with the help of testing and measuring instruments.

Stripping Insulation

A tool for stripping insulation from single-core and multi-core conductors – for wire stripping, WAGO has developed tools considering the diverse needs of professionals working with both single-core and multi-core wires.
The versatility of these tools ensures precise and easy stripping, reducing the risk of conductor damage. The ergonomic design provides a comfortable grip, making prolonged use comfortable. Regardless of which conductors we are dealing with (single-core or multi-core), WAGO wire stripping tools provide precision, reliability, and workflow optimization for all electrical projects.

Using WAGO tools saves time and costs, as the work is done quickly and the number of errors is reduced. By using new WAGO tools (their operation is intuitive and simple), you can quickly and reliably insulate, for example, sensor cables without damaging the cable cores.

Here are some of them:

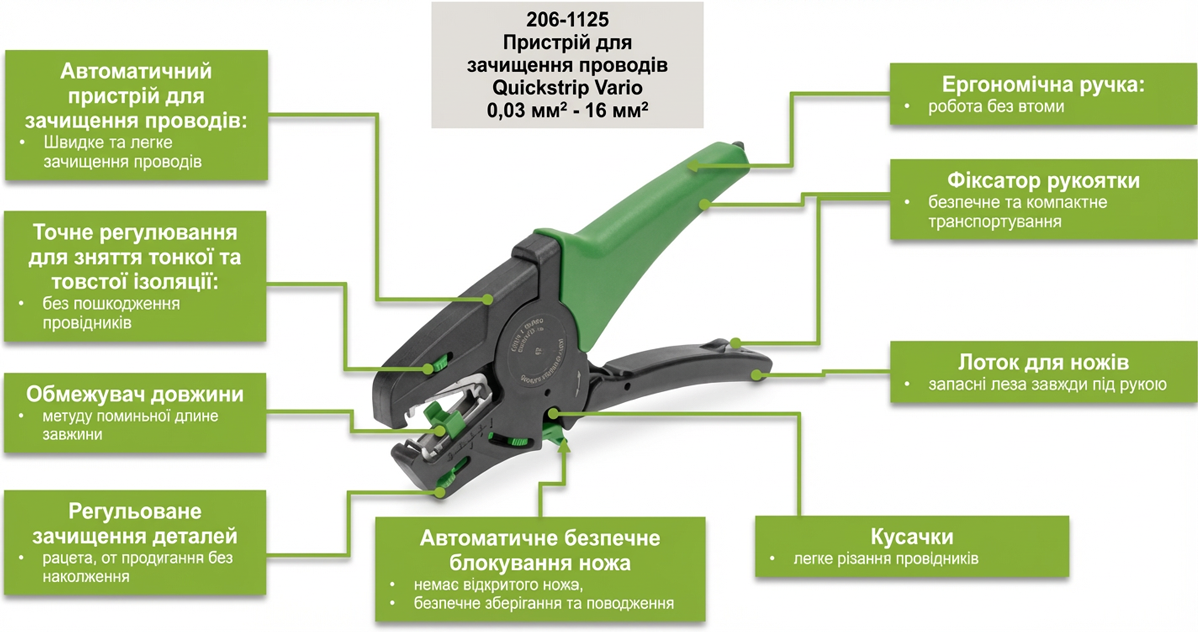

   1. The design of the Quickstrip Vario wire stripping pliers (206-1125) – is a work of art. For stripping wires with a cross-section from 0.03 to 16 mm², only one tool is needed. Quickstrip Vario works very accurately. Now, to prevent the splitting of stranded wires, it is enough to set the option to leave a piece of insulation on the end of the wire with a single button.

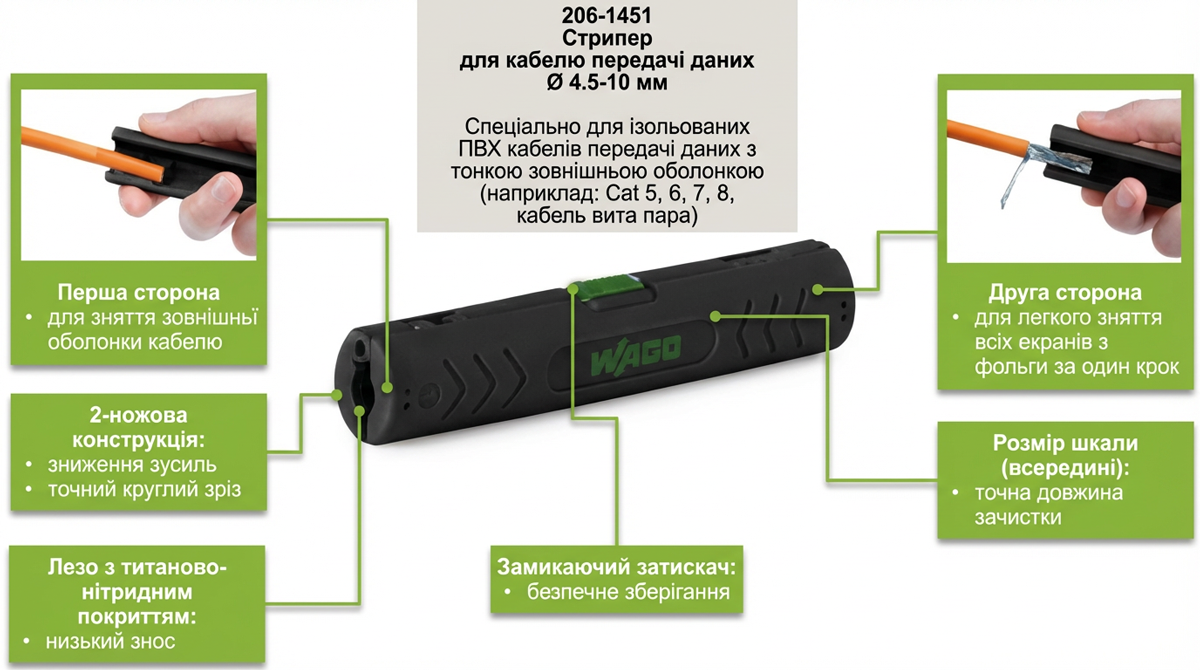

   2. Stripper 206-1451 (for data cable Ø 4.5-10 mm).

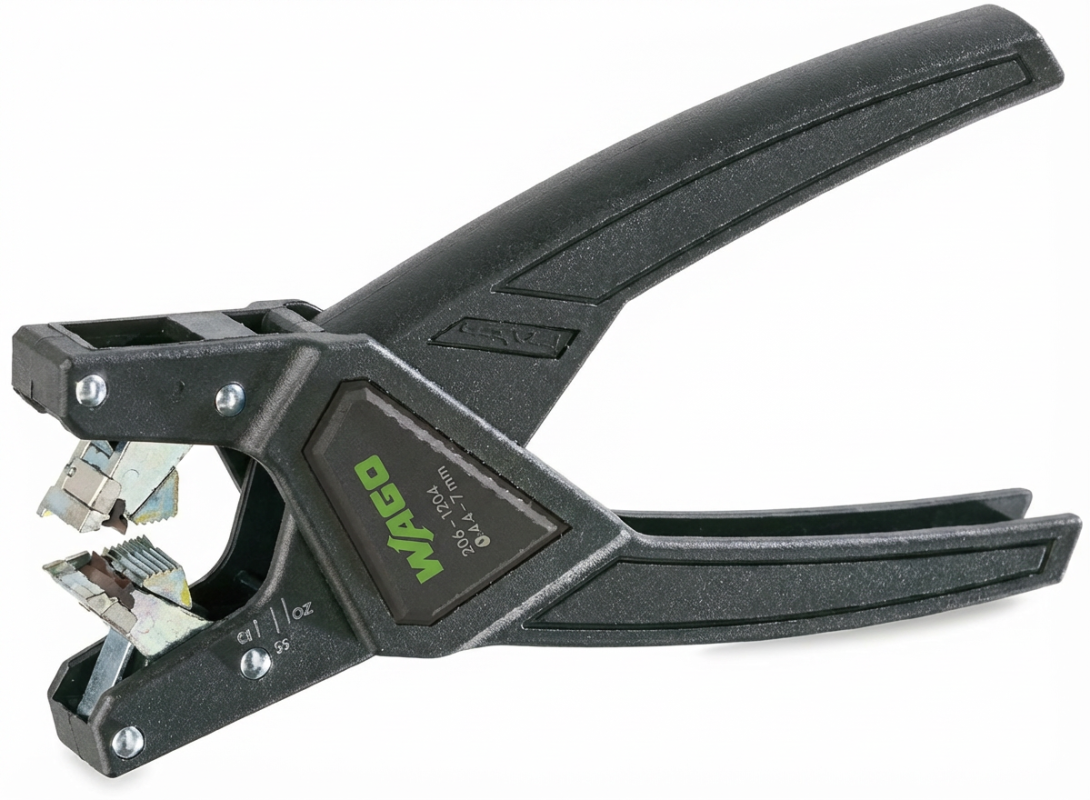

   3. Pliers for removing the outer insulation from control cables (206-1481).
Quick and safe removal of the outer insulation from wires – is one of the most important tasks for an electrician. Therefore, WAGO offers new insulation stripping pliers in two versions. The first option was specially designed for smaller diameter signal cables. The blade geometry of this tool is adapted to a diameter range from 3.2 to 4.4 mm.

   4. Pliers (206-1482) for removing the outer insulation from control cables are available for thicker cables with a diameter from 4.4 to 7 mm.

Both tools (206-1481, 206-1482) are suitable for almost all types of cables: halogen-free polyurethane cables for sensors (actuators), very flexible TPE-U cables, control cables, polyurethane cables, PVC cables, multi-core cables, shielded and unshielded.

Advantages:

• quick and safe insulation stripping;
• automatic adjustment to the cable diameter, no regulation needed;
• convenient stripping of longer cables;
• extended service life thanks to replaceable blades.

Crimping Cables

WAGO crimping tools for wire end ferrules – precision is paramount for electrical connections, and these WAGO tools embody this principle. The tools go beyond basic requirements, providing consistent and reliable crimps that guarantee optimal conductivity and durability of connections. The ergonomic design enhances user comfort, giving electricians the confidence to achieve professional-level results. WAGO's commitment to excellence is reflected in these crimping tools, offering a combination of functionality and ease of use.

Two ferrules

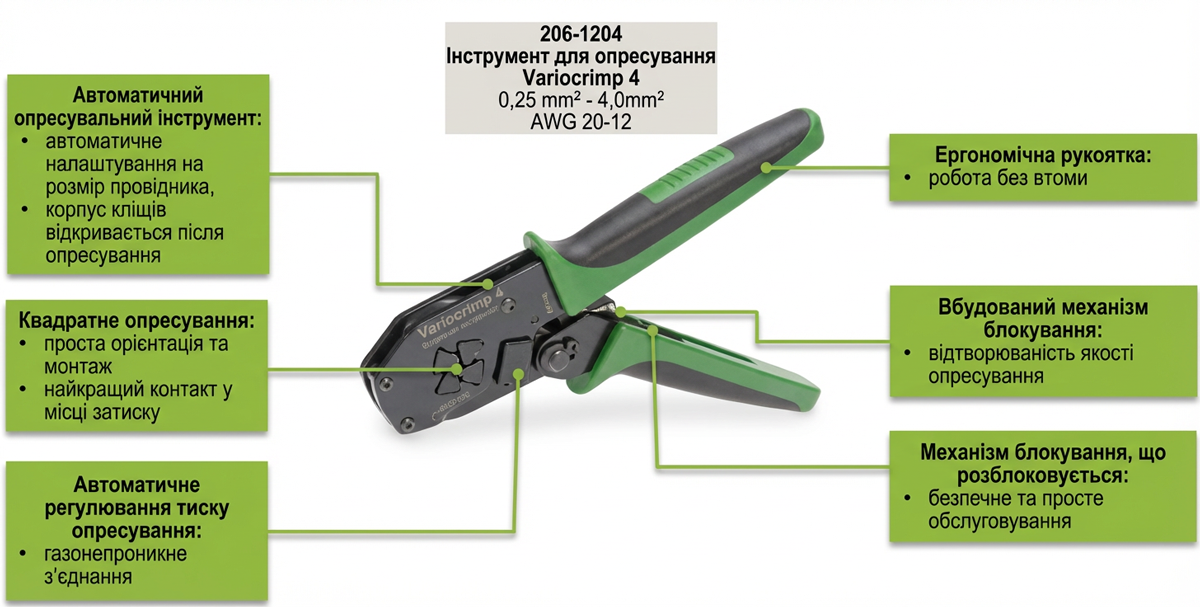

Variocrimp 4 (206-1204)

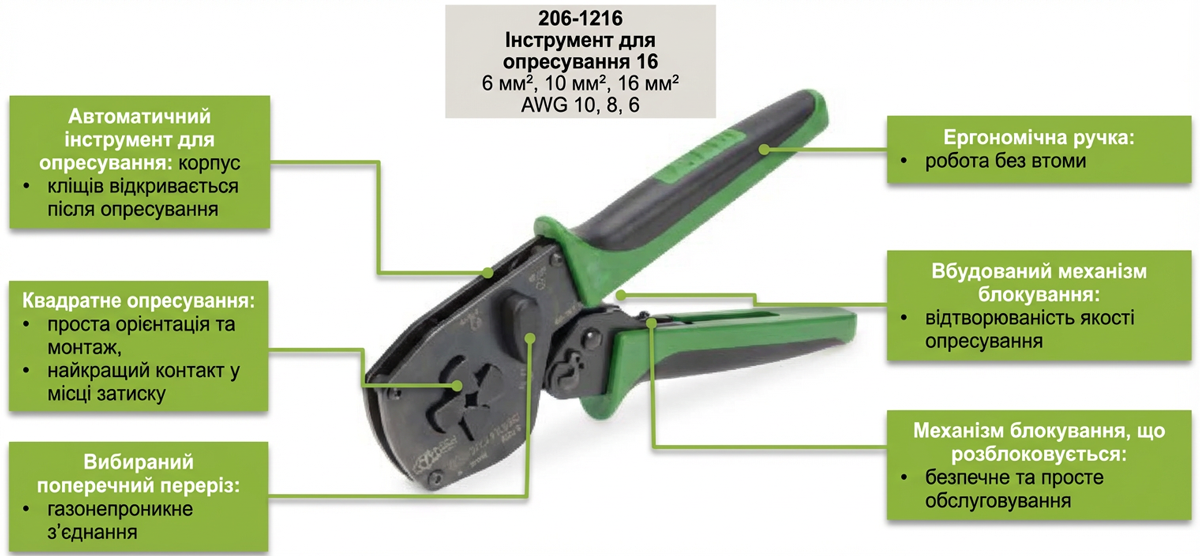

Variocrimp 16 (206-1216)

They crimp cable ferrules into a square shape, which allows for quick connection and disconnection of cables without getting stuck in the terminal. The tools create a gas-tight bond for the cable sleeves, creating a secure electrical connection.
The line of tools is complemented by the crimping tool-25 (206-1225)

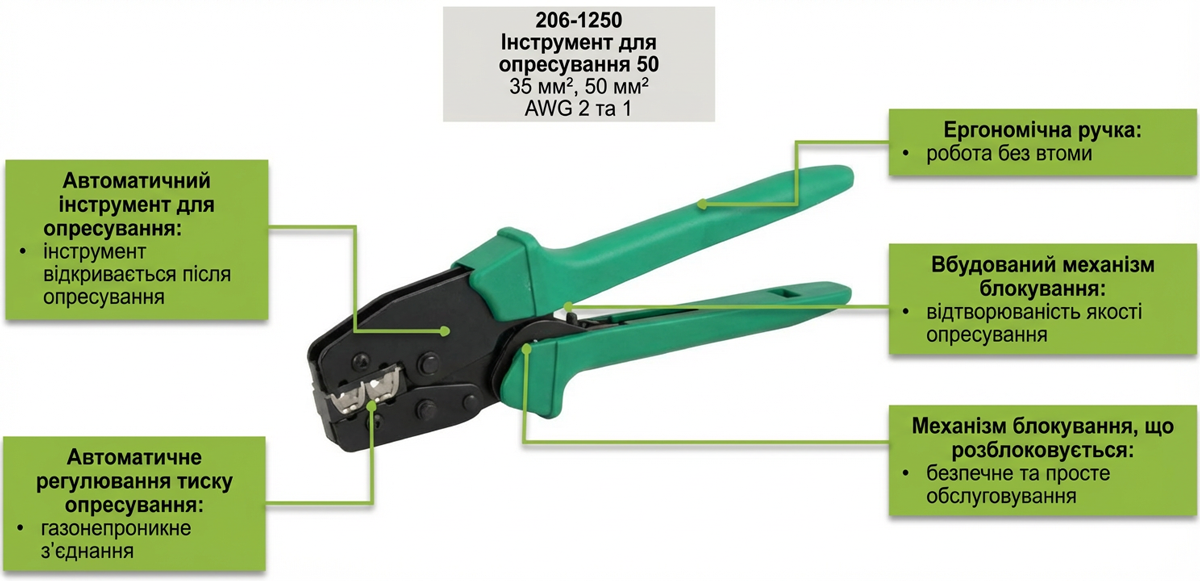

and the crimping tool-50 (206-1250).

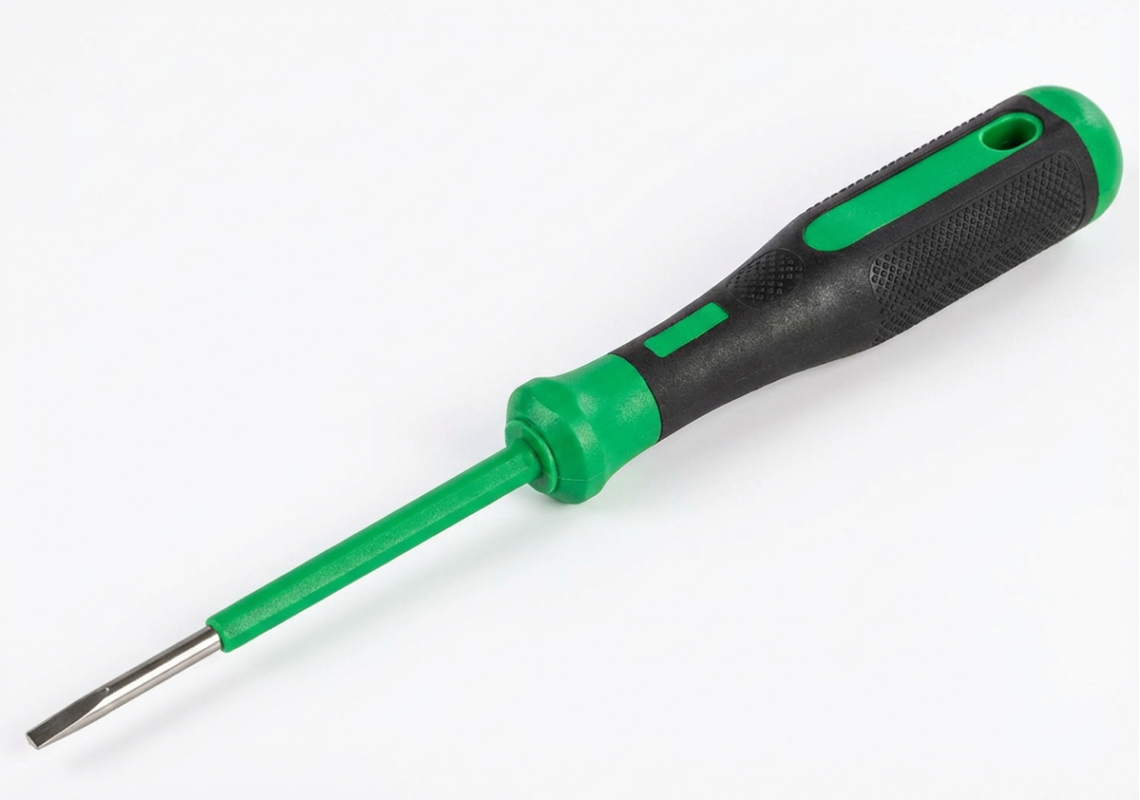

Screwdrivers and tools for working with terminal blocks

Terminal blocks are an integral part of electrical installations, and WAGO recognizes this by offering specially designed screwdrivers and tools for working with them. The screwdrivers are characterized by optimal torque and ease of handling, ensuring reliable tightening of the terminals. The operating tools complement the range, providing convenience when working with terminal blocks. At the same time, these tools provide the efficiency and precision required when working with terminal connections, making WAGO the best choice for professionals in this field.

In the competitive environment of power tools, WAGO is a symbol of German engineering excellence. Tools for crimping ferrules, stripping wires, specialized screwdrivers, and tools for working with terminal blocks testify to WAGO's commitment to providing professionals with tools that enhance precision, reliability, and overall efficiency. And as a result, there is an opportunity to raise the level of electrical projects with WAGO tools, where every connection testifies to the brand's commitment to excellence in craftsmanship and innovation.
