PEM-BR105 - END cap insulated 1.5 - 2.5 mm2 / 10 mm BLUE (100 pcs.)

PEM-BR105 - END cap insulated 1.5 - 2.5 mm2 / 10 mm BLUE (100 pcs.)
PEM-BR105 - END cap insulated 1.5 - 2.5 mm2 / 10 mm BLUE (100 pcs.)
PEM-BR105 - END cap insulated 1.5 - 2.5 mm2 / 10 mm BLUE (100 pcs.)
Pre-Order
Article: PEM-BR105
Brand: PARTEX
1,300.00 грн.
Found it cheaper?
Payment
Delivery
Delivery by Nova Poshta
Delivery by Nova Poshta
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
Pickup (Kyiv)
For free

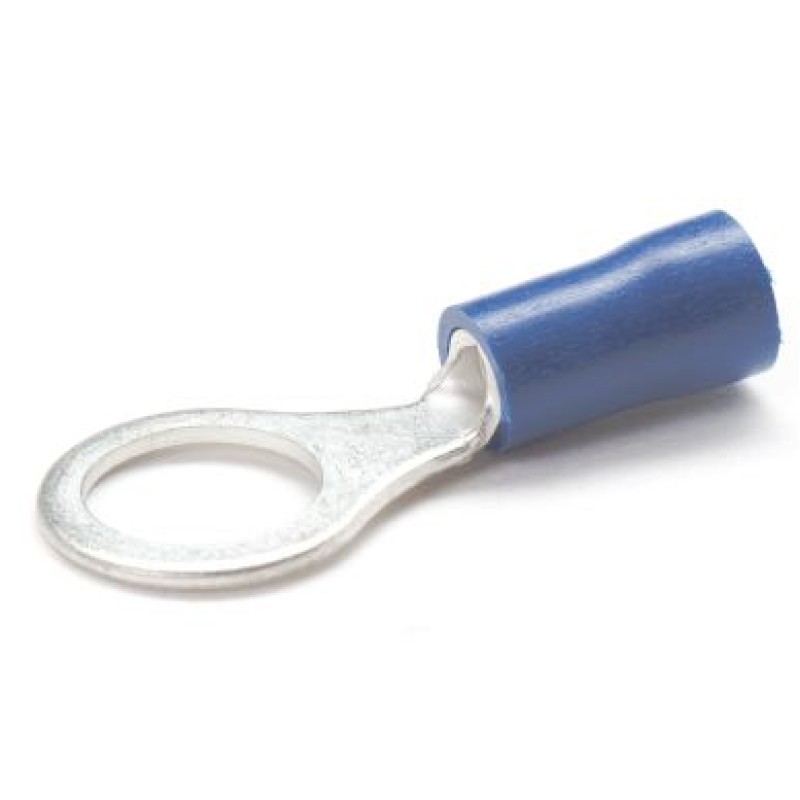

Description PEM-BR105 - END cap insulated 1.5 - 2.5 mm2 / 10 mm BLUE (100 pcs.)

We present factory-insulated lugs with lugs designed to encapsulate copper conductors. They increase the safety and durability of the connection during equipment operation by reducing the heating of conductor and cable insulation. In order to finally fix the component, it must be pressed using a special pressing tool with appropriately matched jaws. Thus, the cable clamp provides protection and resistance to various types of mechanical damage and factors that can pose a potential hazard to the network and connected equipment.

  • A complete range of terminals that combine high quality with affordability
  • High-quality PVC for easy crimping
  • VR stands for increased vibration resistance
  • Available in packs of 100

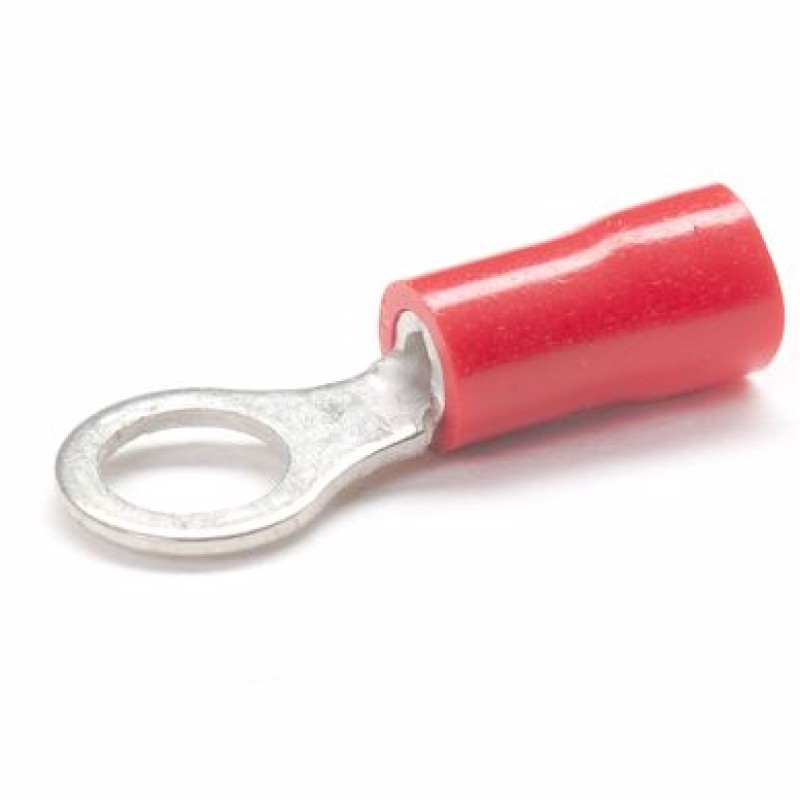

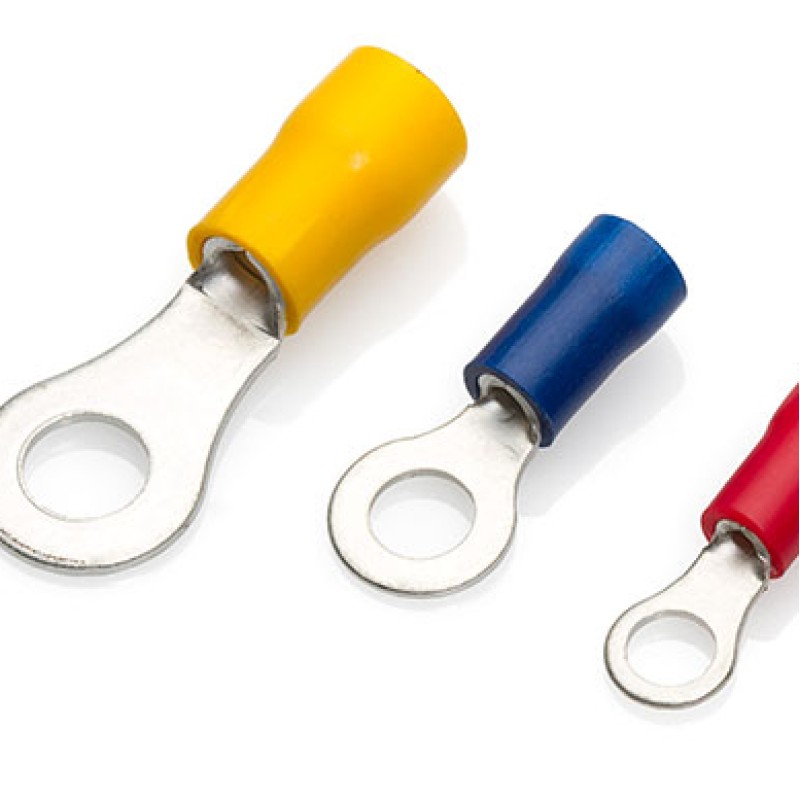

  • Red insulation: for conductors 0.5 - 1.5 mm2
  • Blue insulation: for wires 1.5 - 2.5 mm2
  • Yellow insulation: for 4.0 - 6.0 mm2 wires
  • UL: E163810

Main attributes PEM-BR105 - END cap insulated 1.5 - 2.5 mm2 / 10 mm BLUE (100 pcs.)

Properties
Collar length [E] 11 mm
Copper end cap thickness [T] 0.8 mm
End cap material C1100 copper
End width [B] 13.7 mm
Hole diameter [d2] 10.5 mm
Insulation color Blue
Insulation diameter [D] 4.7 mm
Insulation material PVC
Insulation thickness [t1] 0.8 mm
Total length [L] 31.5 mm
