PEM-BF66/08/VR - INSULATED SOCKET 1.5 - 2.5 mm2 / 6.3 x 0.8 mm BLUE (100 pcs.)

PEM-BF66/08/VR - INSULATED SOCKET 1.5 - 2.5 mm2 / 6.3 x 0.8 mm BLUE (100 pcs.)
PEM-BF66/08/VR - INSULATED SOCKET 1.5 - 2.5 mm2 / 6.3 x 0.8 mm BLUE (100 pcs.)
Pre-Order
Article: PEM-BF66/08/VR
Brand: PARTEX
1088.00 грн.
Found it cheaper?
Payment
Delivery
Delivery by Nova Poshta
Delivery by Nova Poshta
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
Pickup (Kyiv)
For free

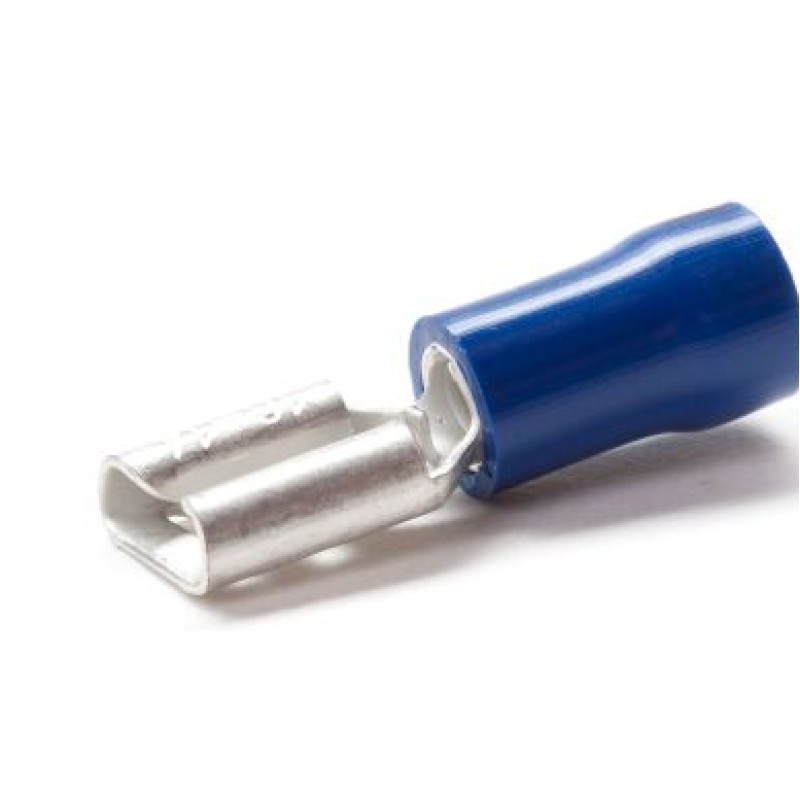

Description PEM-BF66/08/VR - INSULATED SOCKET 1.5 - 2.5 mm2 / 6.3 x 0.8 mm BLUE (100 pcs.)

Flat copper terminals, called plugs, combine with a socket to provide a reliable and durable electrical connection. The partially insulated PEM caps available in our range are a solution used in both the automotive and electrical industries. They are made of high-quality brass, and the copper sleeve is additionally protected by PVC material, making crimping easier and safer. The product is intended for termination of copper conductors. In order to finally fix the tip, it must be crimped using a special press with a suitable tip.

  • A complete range of terminals that combine high quality with affordability
  • High-quality PVC for easy crimping
  • VR stands for increased vibration resistance
  • Available in packs of 100
  • Red insulation: for conductors 0.5 - 1.5 mm2
  • Blue insulation: for wires 1.5 - 2.5 mm2
  • Yellow insulation: for 4.0 - 6.0 mm2 wires
  • UL: E163810

Main attributes PEM-BF66/08/VR - INSULATED SOCKET 1.5 - 2.5 mm2 / 6.3 x 0.8 mm BLUE (100 pcs.)

Properties
Collar length [E] 11 mm
Copper end cap thickness [T] 0.8 mm
End cap material C2680 brass
End width [B] 6.7 mm
Insulation color Blue
Insulation diameter [D] 4.9 mm
Insulation material PVC
Insulation thickness [t1] 0.8 mm
Suitable for slides with a thickness of 0.8 mm
Suitable for slides with a width of 6.4 mm
Total length [L] 22 mm
