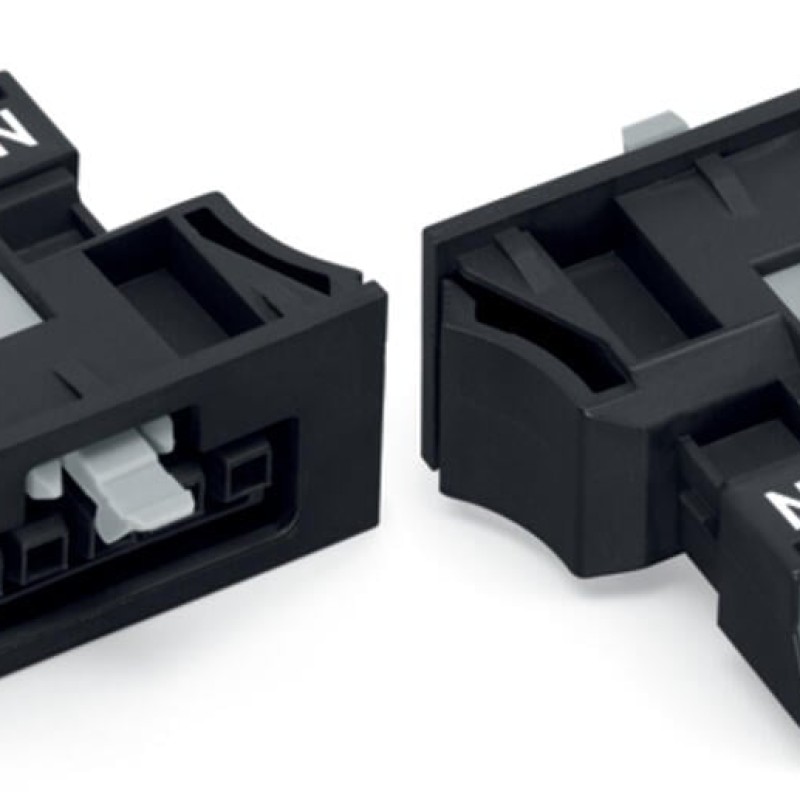

890-705 Snap-in socket;5-pole;Cod. A;black

Name: 890-705 Snap-in socket;5-pole;Cod. A;black
Brand: Wago
Price: 192.85 UAH
Availability: InStock

New

In stock

Article: 890-705

Brand: Wago

192.85 грн.

Found it cheaper?

Short description

Female connector/socket WINSTA® MINI with protection type IP40For signal and power transmission: The WINSTA® MINI female connector/socket with protection type IP40. On PCBs, in control cabinets or for connecting lights –...

Description 890-705 Snap-in socket;5-pole;Cod. A;black

Female connector/socket WINSTA® MINI with protection type IP40

For signal and power transmission: The WINSTA® MINI female connector/socket with protection type IP40. On PCBs, in control cabinets or for connecting lights – pluggable installation connectors from WAGO allow you to make connections according to a huge variety of requirements in next to no time. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected against ingress by solid granular objects with a diameter below 1 mm in accordance with protection type IP40. Thanks to the color coding and mechanical A coding of WINSTA® MINI pluggable installation connectors, you can clearly distinguish different circuits. Especially where space is tight, our smallest pluggable connection system, WINSTA® MINI, conveniently displays its advantageous properties. It is very compact, and, thanks to Push-in CAGE CLAMP® spring pressure connection technology, it also saves time, since the connection is low-maintenance and can be performed without screw connections.

WINSTA® MINI solutions for your electrical installation – protected against mismating and maintenance-free

The WINSTA® Pluggable Connection System is perfectly tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and consequently more efficient, more reliable, and error-free. Use of this pre-assembled system reduces time spent on assembly and installation errors at the construction site. Now you can also cut installation costs without compromising safety and quality: with protection type IP40 eliminates the need for servicing and prevents unnecessary downtime.

pluggable installation connectors with protection against mismating
consistent IP40 protection
for any mains application
exact dimensions
quick replacement of defective units during ongoing operation

Main attributes 890-705 Snap-in socket;5-pole;Cod. A;black

Connection 1

Actuation type Push-in

Conductor entry direction to mating direction 0 °

Connection technology Push-in CAGE CLAMP^®

Fine-stranded conductor 0.25 … 1.5 mm² / 22 … 16 AWG

Fine-stranded conductor; with ferrule; push-in termination 0.75 mm² / 20 AWG

Fine-stranded conductor; with insulated ferrule 0.25 … 0.75 mm² / 22 … 20 AWG

Fine-stranded conductor; with uninsulated ferrule 0.25 … 0.75 mm² / 22 … 20 AWG

Nominal cross-section 1.5 mm² / 16 AWG

Pole number 5

Solid conductor 0.25 … 1.5 mm² / 22 … 16 AWG

Solid conductor; push-in termination 0.75 … 1.5 mm² / 20 … 16 AWG

Stranded conductor 0.25 … 1 mm² / 22 … 18 AWG

Strip length 9 mm

Connection data

Clamping units 5

Total number of potentials 5

Environmental requirements

Continuous operating temperature -35 … +85 °C

Note on continuous operating temperature Insulating parts for temperatures ≤ 105 °C

Processing temperature -5 … +40 °C

Material data

Clamping spring material Chrome-nickel spring steel (CrNi)

Color black

Contact material Copper or copper alloy; surface-treated

Contact plating Tin

Cover color gray

Fire load 0.261 MJ

Flammability class per UL94 V0

Insulation material (main housing) Polyamide (PA66)

Material group I

Weight 9 g

Mechanical data

Coding A

Housing sheet thickness 0.5 … 2 mm

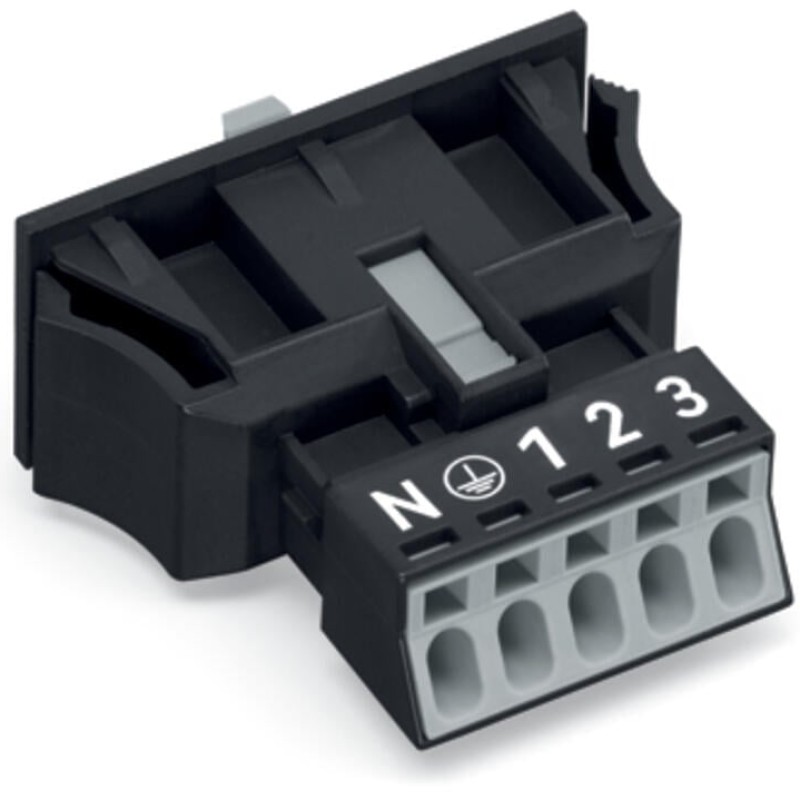

Marking N ⏚ 1 2 3

Mating force of a plug-in connection approx. 20 … 70 N (depending on pole number)

Mounting type Snap-in flange

Number of mating cycles 200, without resistive load

Potential marking N ⏚ 1 2 3

Protection type IP40

Retention force of a plug-in connection Locked: > 80 N

Unmating force of a plug-in connection Unlocked: approx. 20 … 70 N (depending on pole number)

Use General mains applications

Variable coding No

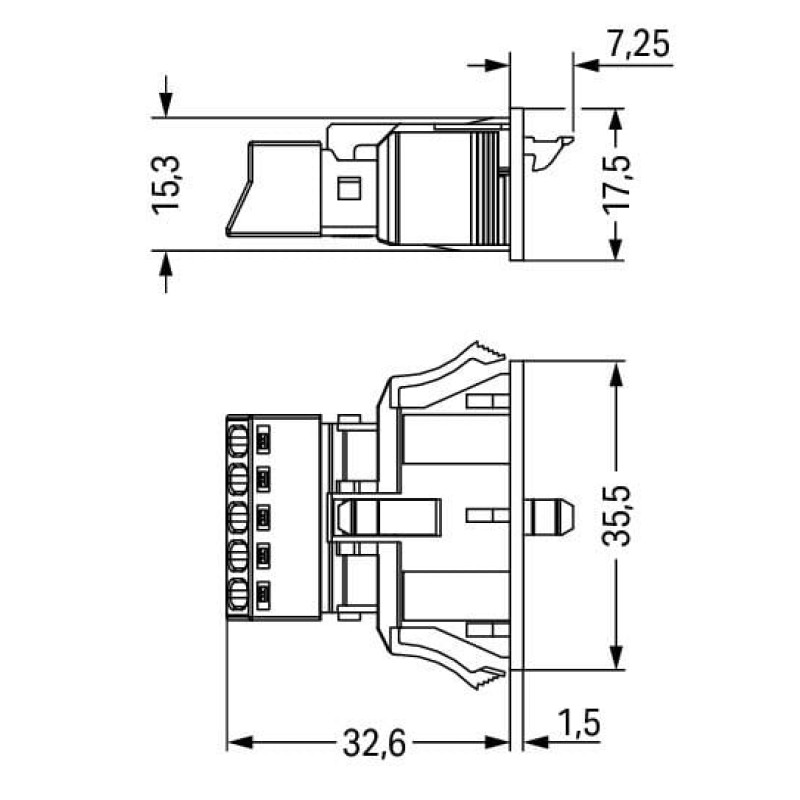

Physical data

Depth 39.85 mm

Height 17.5 mm

Pin spacing 4.4 mm

Width 35.5 mm

Plug-in connection

Connector (connection type) for conductor

Contact type (pluggable connector) Female connector/socket

Locking lever yes

Locking of plug-in connection locking lever

Mismating protection Yes

Note on locking system All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers

Note on mismating protection All WINSTA^® components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180  
c.) plugging while laterally staggered
d.) plugging one pole 
