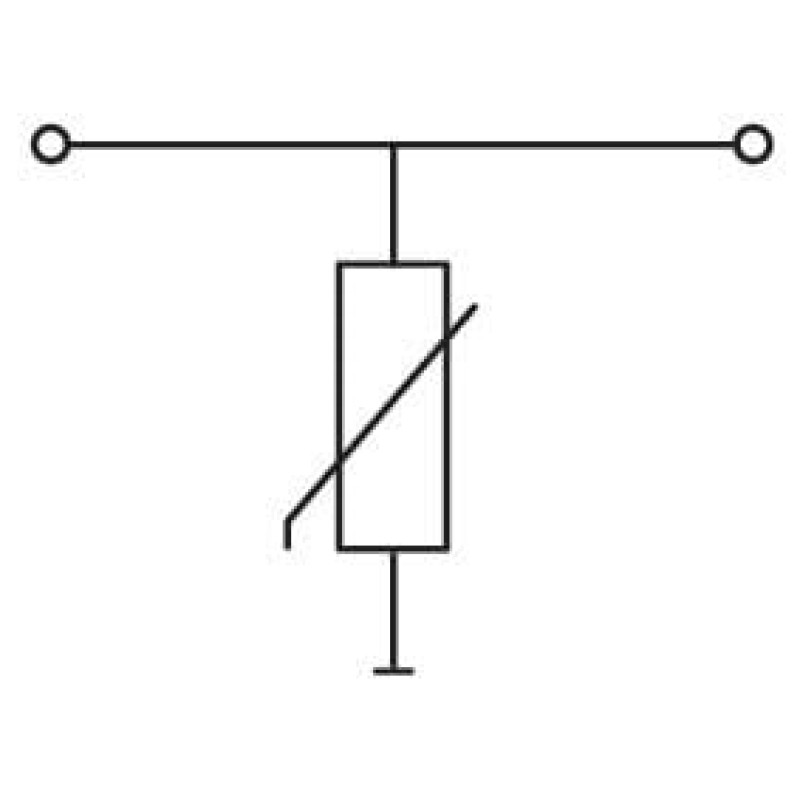

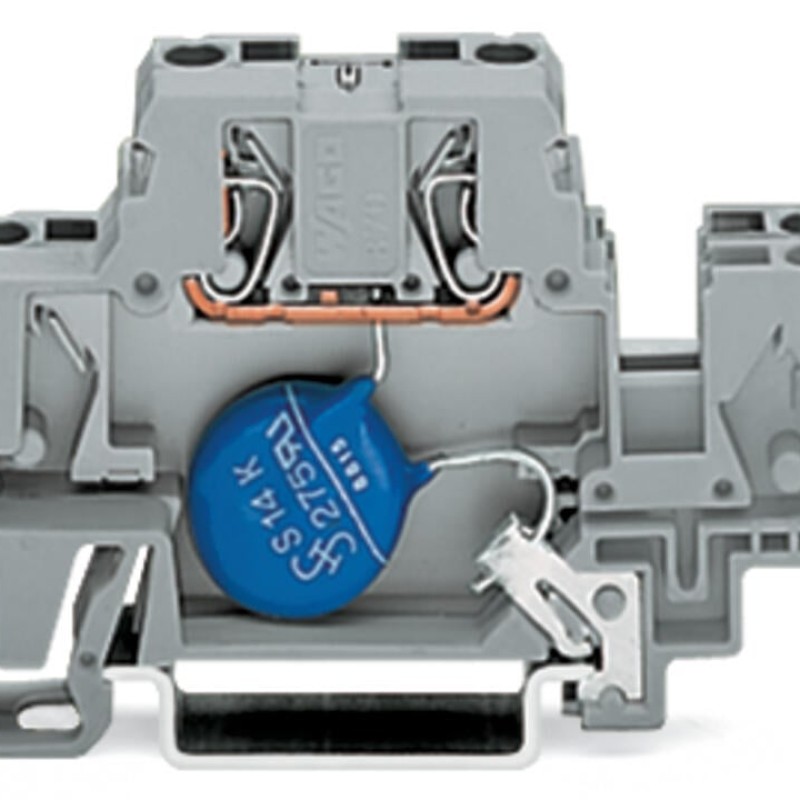

Description 870-523/281-588 Component terminal block;double-deck;with varistor;gray
Main attributes 870-523/281-588 Component terminal block;double-deck;with varistor;gray
Connection data
Connection technology
CAGE CLAMP®
Connections (number)
2
Fine-stranded conductor
0.08 … 4 mm² / 28 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.08 … 1.5 mm² / 28 … 14 AWG
Solid conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Strip length
6 … 7 mm
Environmental requirements
Processing temperature
-35 … +85 °C
Material data
Color
gray
Fire load
0.257 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
12.8 g
Mechanical data
Mounting type
DIN-35 rail
Physical data
Depth from upper-edge of DIN-rail
40 mm
Height
70 mm
Width
10 mm
