Description 862-594 4-conductor chassis-mount terminal strip;without ground contact;4-pole;black

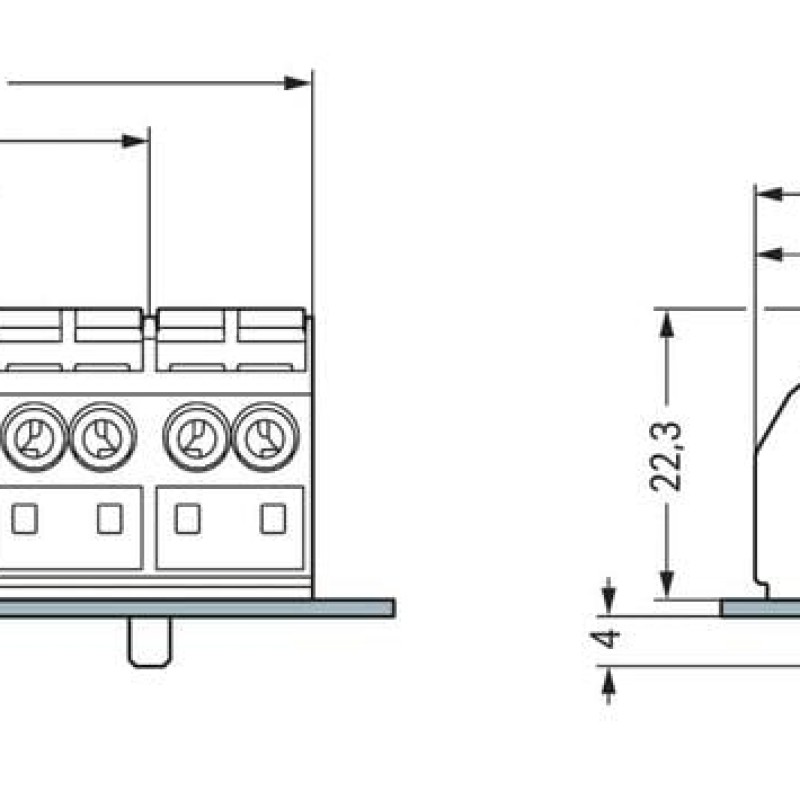

Our chassis-mount terminal strip (item number 862-594) is designed for seamless electrical installations. Strip lengths must be between 10 and 11 mm when connecting conductors to this chassis-mount terminal strip. This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor's ferrule is not necessary. Dimensions: (48 x 27.5 x 35) mm (width x height x depth). Depending on the type of conductor, this chassis-mount terminal strip is suitable for conductor cross sections ranging from 0.5 mm² to 4 mm².
Main attributes 862-594 4-conductor chassis-mount terminal strip;without ground contact;4-pole;black
Connection 1
Actuation type
Push-button
Connectable conductor materials
Copper
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.5 … 4 mm² / 20 … 12 AWG
Fine-stranded conductor; with ferrule; push-in termination
0.75 mm² / 18 AWG
Fine-stranded conductor; with insulated ferrule
0.5 … 1.5 mm² / 20 … 16 AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Pole number
4
Solid conductor
0.5 … 4 mm² / 20 … 12 AWG
Solid conductor; push-in termination
0.75 … 4 mm² / 18 … 12 AWG
Stranded conductor
0.5 … 4 mm² / 20 … 12 AWG
Strip length
10 … 11 mm
Wiring direction
Side-entry wiring
Connection data
Clamping units
16
PE function
without PE contact
Total number of potentials
4
Material data
Color
black
Fire load
0.516 MJ
Flammability class per UL94
V0
Halogen-free
Yes
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
27.4 g
Mechanical data
Marking
plain

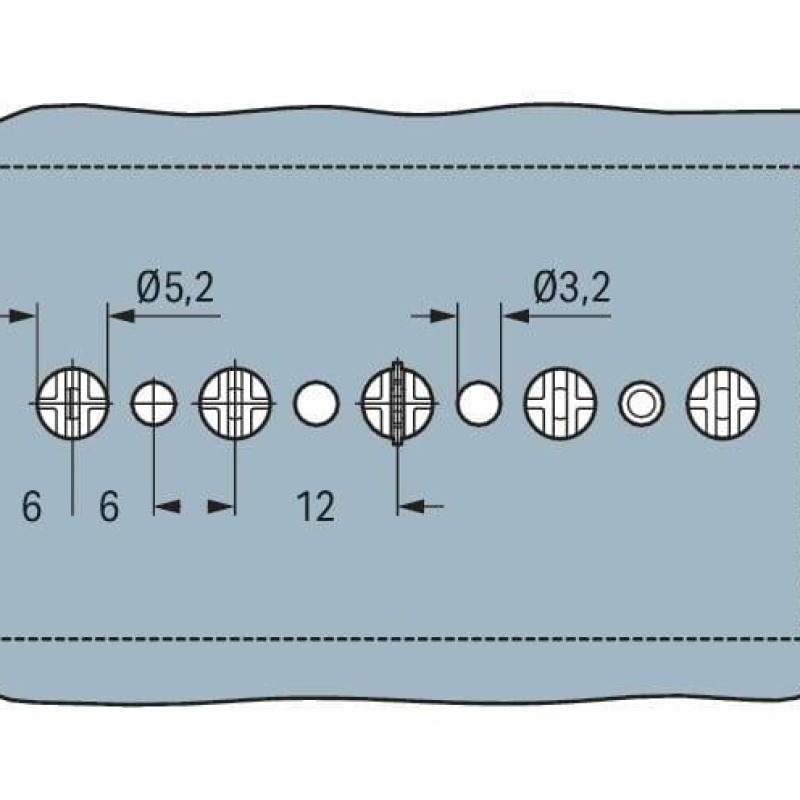

Mounting type
Snap-in foot at position 1+4
Physical data
Depth
35 mm
Height from the surface
22.3 mm
Pin spacing
12 mm
Width
48 mm
