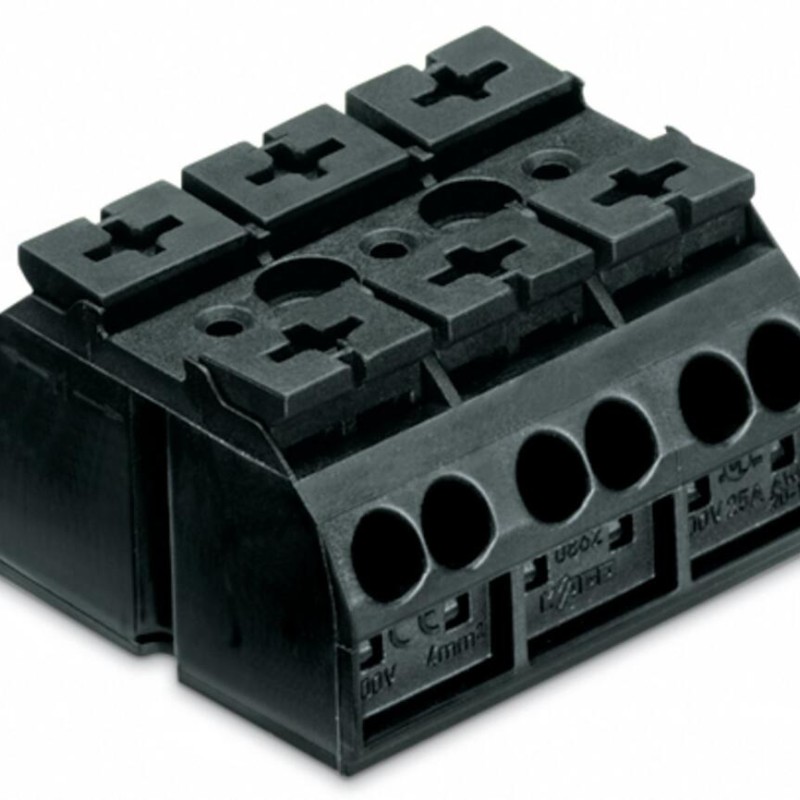

Description 862-593 4-conductor chassis-mount terminal strip;without ground contact;3-pole;black
Enjoy easy electrical installations with this chassis-mount terminal strip (item number 862-593). Conductors should only be connected to this chassis-mount terminal strip if their strip length is between 10 and 11 mm . Featuring conductor terminals along with Push-in CAGE CLAMP®, this product is highly versatile. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. The dimensions are (36 x 27.5 x 35) mm (width x height x depth). This chassis-mount terminal strip is suitable for conductor cross sections ranging from 0.5 mm² to 4 mm².
Main attributes 862-593 4-conductor chassis-mount terminal strip;without ground contact;3-pole;black
Connection 1
Actuation type
Push-button
Connectable conductor materials
Copper
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.5 … 4 mm² / 20 … 12 AWG
Fine-stranded conductor; with ferrule; push-in termination
0.75 mm² / 18 AWG
Fine-stranded conductor; with insulated ferrule
0.5 … 1.5 mm² / 20 … 16 AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Pole number
3
Solid conductor
0.5 … 4 mm² / 20 … 12 AWG
Solid conductor; push-in termination
0.75 … 4 mm² / 18 … 12 AWG
Stranded conductor
0.5 … 4 mm² / 20 … 12 AWG
Strip length
10 … 11 mm
Wiring direction
Side-entry wiring
Connection data
Clamping units
12
PE function
without PE contact
Total number of potentials
3
Material data
Color
black
Fire load
0.438 MJ
Flammability class per UL94
V0
Halogen-free
Yes
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
20.7 g
Mechanical data
Marking
plain

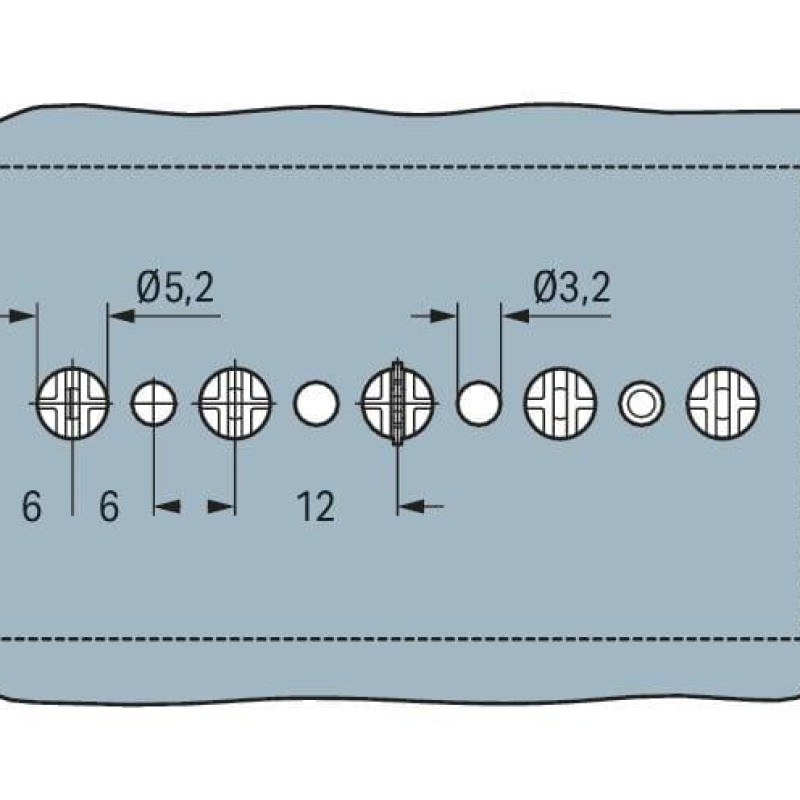

Mounting type
Snap-in foot at position 1+3
Physical data
Depth
35 mm
Height from the surface
22.3 mm
Pin spacing
12 mm
Width
36 mm
