Article: 792-802
Brand: Wago
6,254.16 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

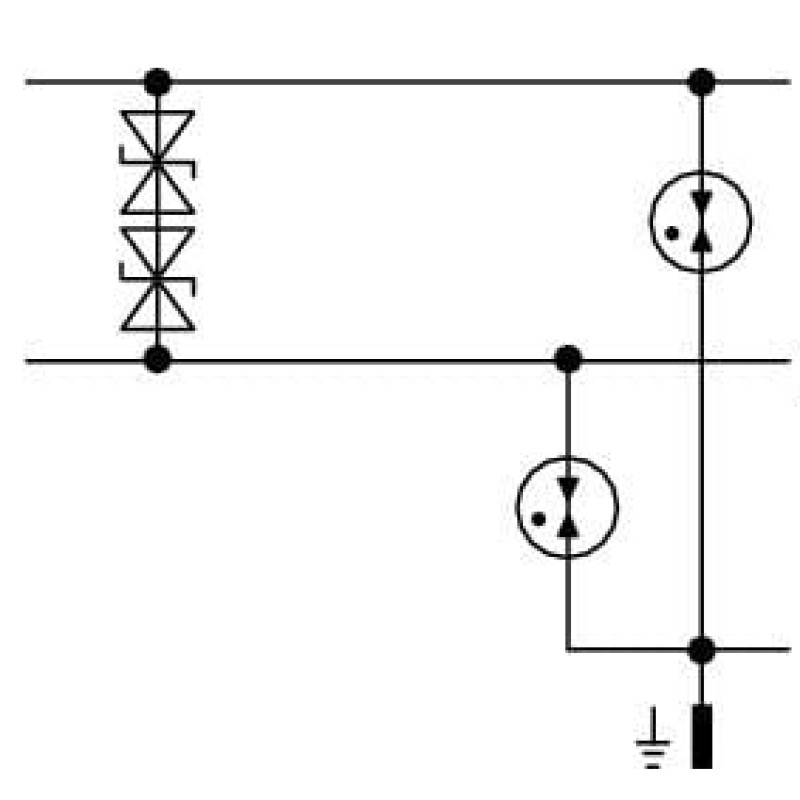

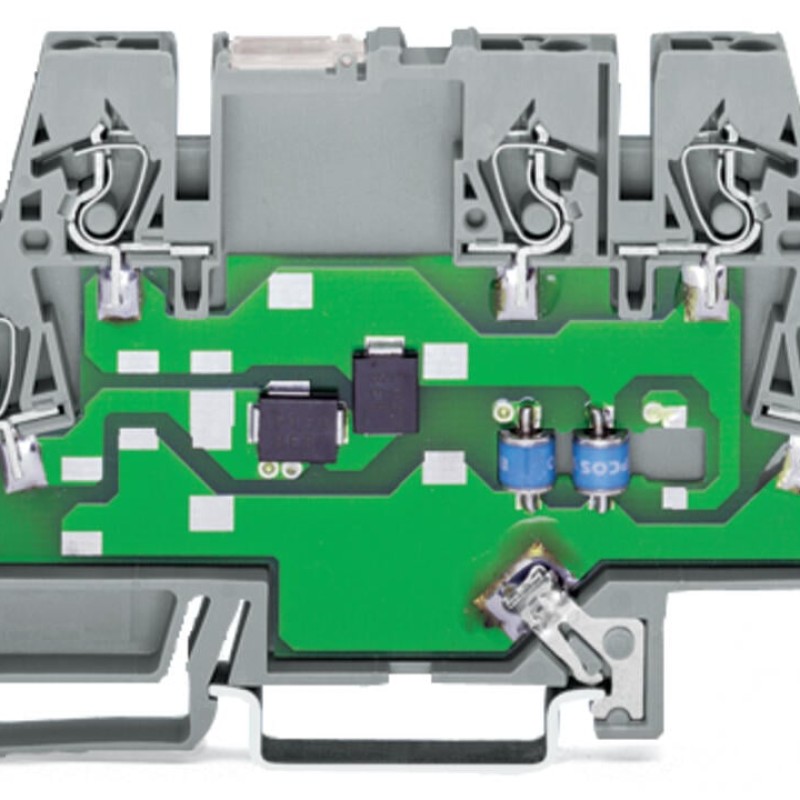

Description 792-802 Surge suppression module for signal technology;Nominal voltage: 24 VDC;for 2 signal paths with common surge arrester
Short description:
Provides surge protection for IT systems and devices in the voltage range up to 60 V (except custom solutions, e.g., telephone systems with ringing voltage).
Overvoltage protection is also possible for DIN-35 rail-mount terminal blocks. Multi-stage surge arresters in rail-mount terminal blocks (792-80x Series) of just 6 mm width ensure cost-effective protection for control and bus technology (e.g., LON® network, PROFIBUS network, binary signals).
Features:- Protect your system against overvoltage
- Slim, space-saving design
- Control operational costs by preventing expensive, unplanned downtime
- High operational reliability and system uptime
Main attributes 792-802 Surge suppression module for signal technology;Nominal voltage: 24 VDC;for 2 signal paths with common surge arrester
Connection data
Connection technology
CAGE CLAMP®
Connections (number)
5
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Solid conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Strip length
5 … 6 mm
Environmental requirements
Ambient temperature (operation)
-40 … +80 °C
Ambient temperature (storage)
-40 … +80 °C
Material data
Weight
37 g
Mechanical data
Mounting type
DIN-35 rail
Physical data

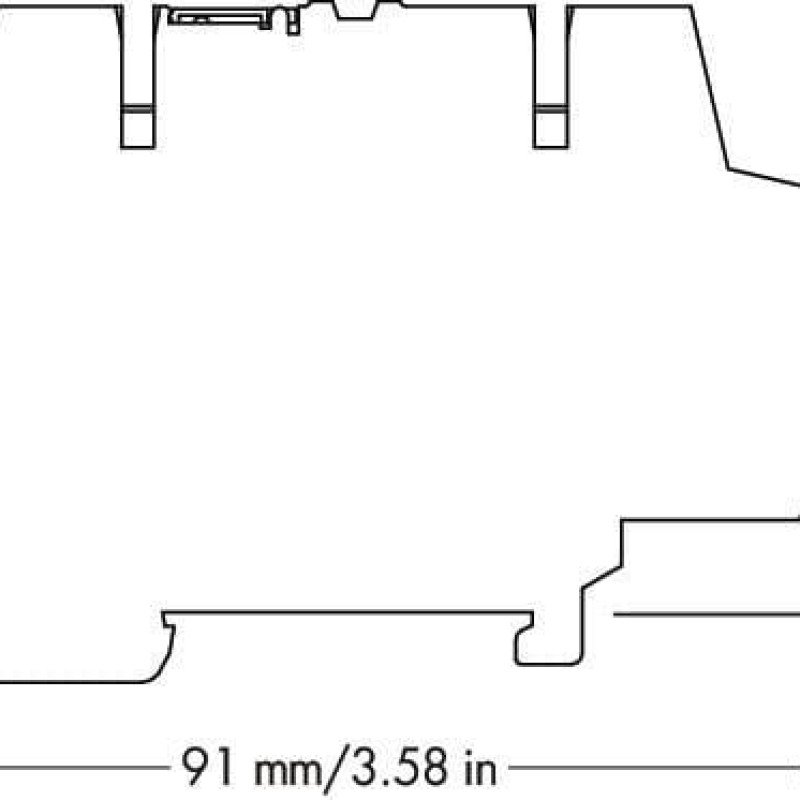

Depth from upper-edge of DIN-rail
56 mm
Height
91 mm
Width
6 mm
Safety and protection
Protection type
IP00; IP20 with end and intermediate plate
Standards and specifications
Standards/specifications
IEC 61643-21
