Article: 787-2861/108-020
Brand: Wago
3638.77 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

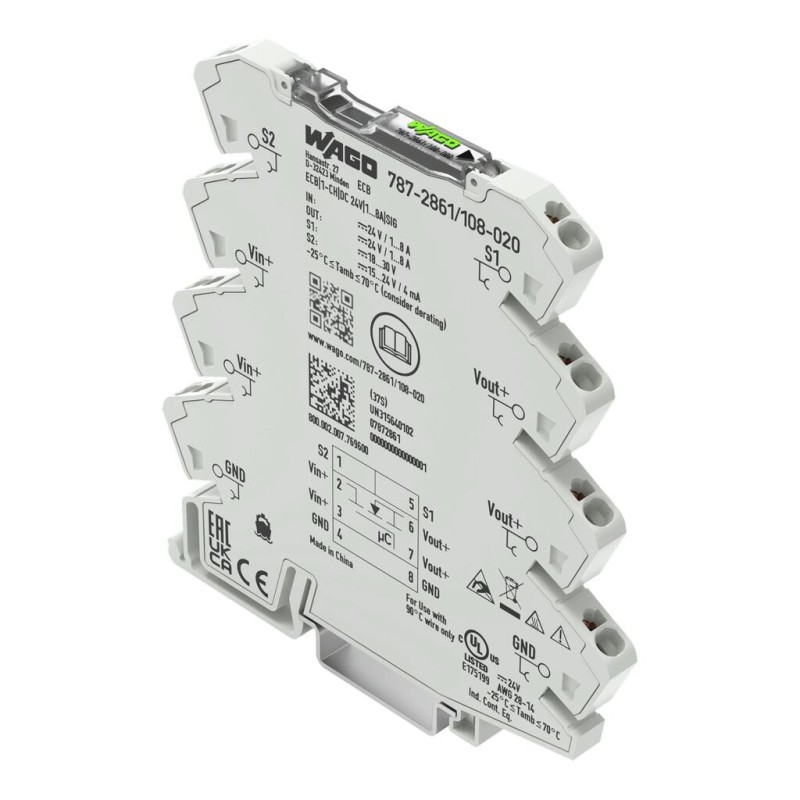

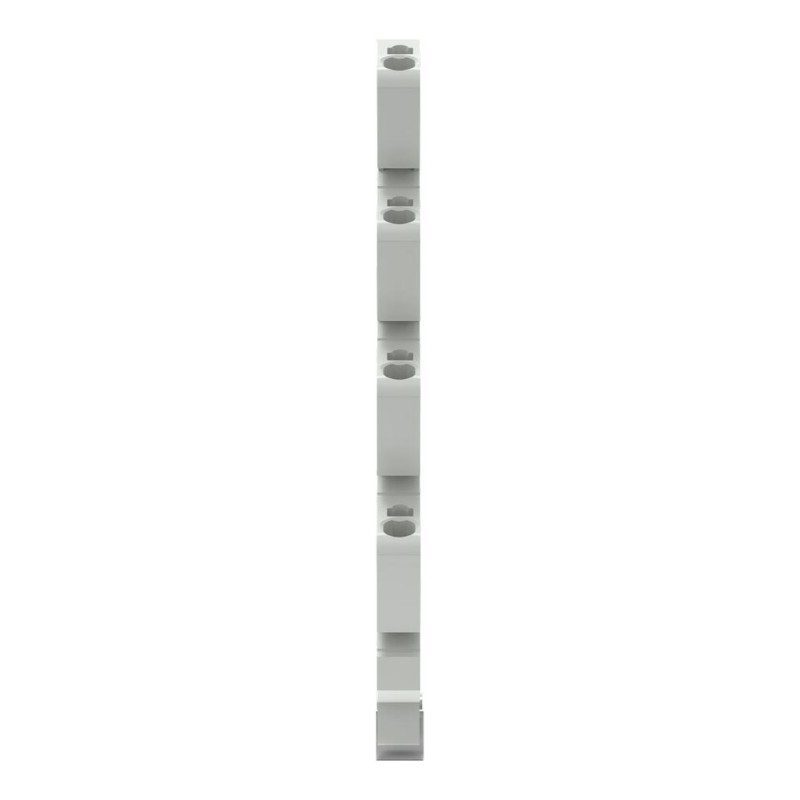

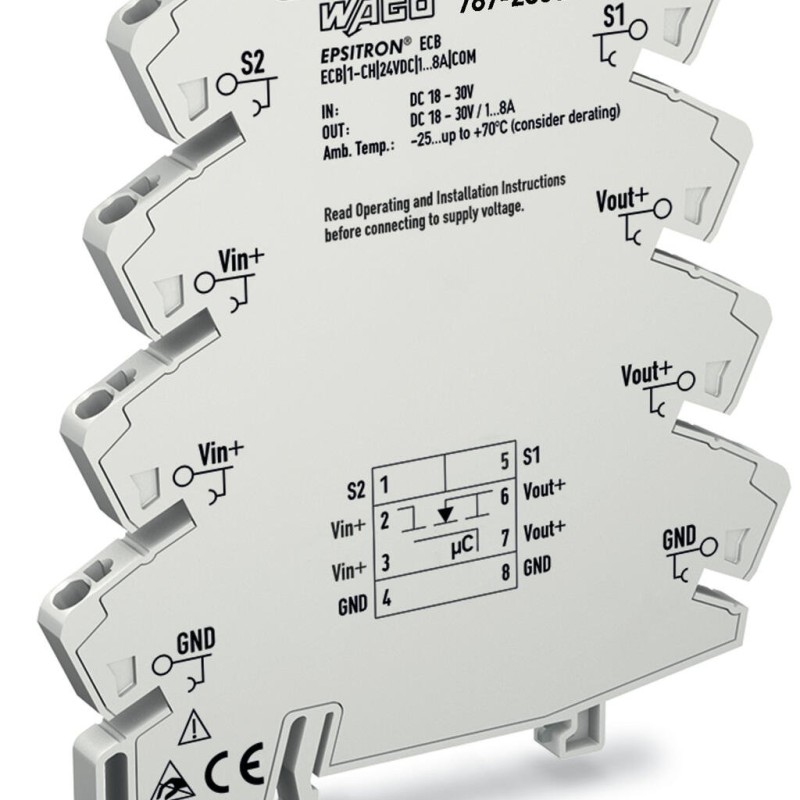

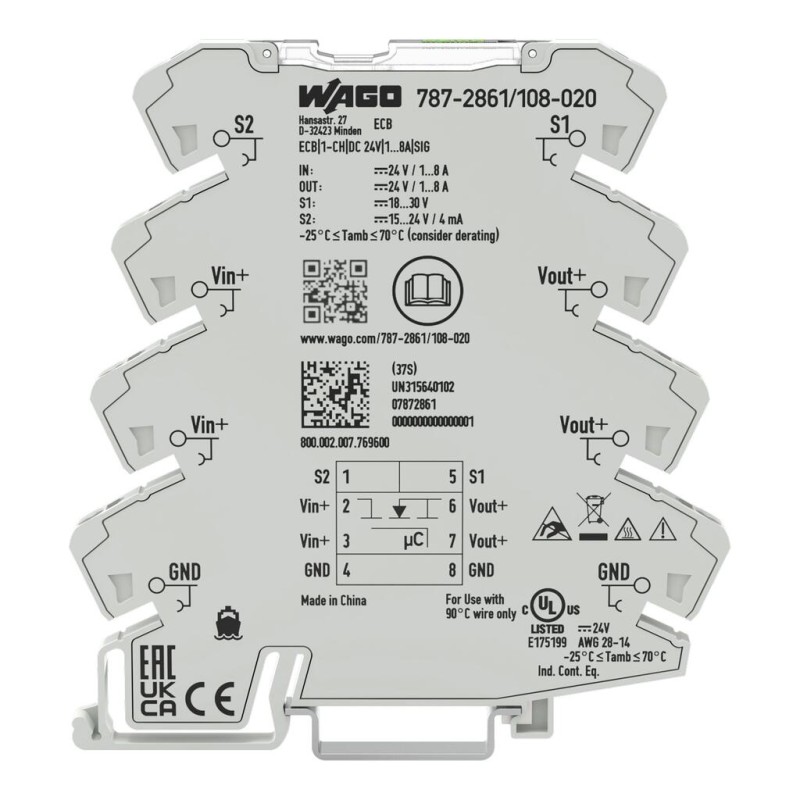

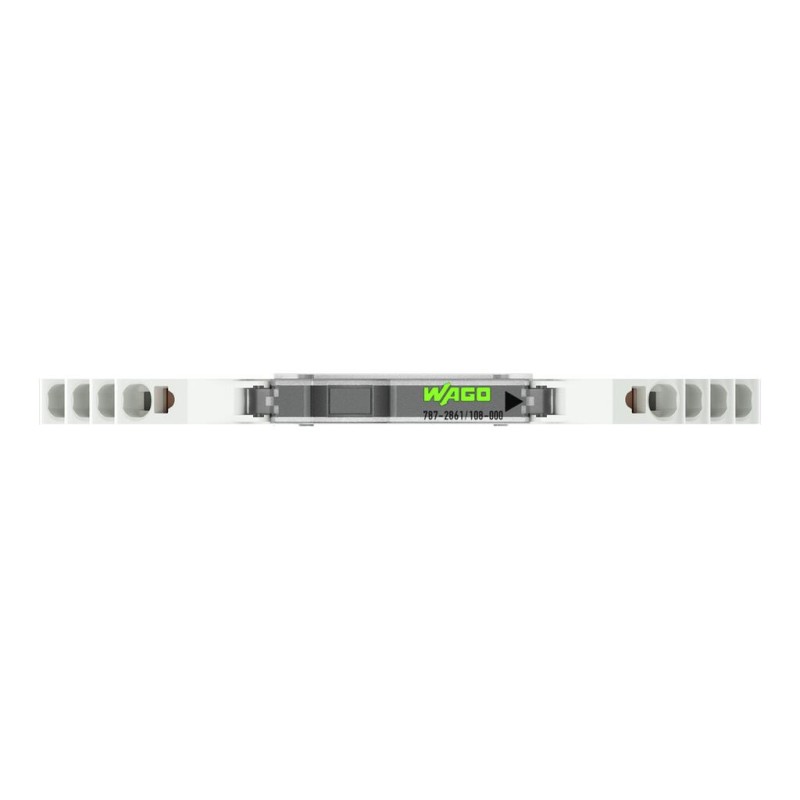

Description 787-2861/108-020 Electronic circuit breaker;1-channel;24 VDC input voltage
Features:- Space-saving ECB with one channel
- Reliably and safely trips in the event of an overload and short circuit on the secondary side
- Switch-on capacity > 50,000 μF
- Enables the use of an economical, standard power supply
- Minimizes wiring via two voltage outputs and maximizes commoning options on both input and output sides (e.g., commoning of the output voltage on 857 and 2857 Series devices)
- Status signal – adjustable as single or group message
- Reset, switch on/off via remote input or local switch
- Prevents power supply overload due to total inrush current thanks to time-delayed switching on during interconnected operation
Main attributes 787-2861/108-020 Electronic circuit breaker;1-channel;24 VDC input voltage
Circuit protection
Internal fuse
T 15 A
Connection data
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.34 … 2.5 mm² / 22 … 14 AWG
Number of jumper slots
8
Solid conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Strip length
9 … 10 mm
WAGO connector
WAGO 857 Series
Efficiency/power losses
Efficiency (typ.)
96 %
Power loss Pₗ
≤ 0.36 W
Environmental requirements
Ambient temperature (operation)
-25 … +70 °C (Device starts at −40 °C (type-tested); derating must be observed)
Ambient temperature (storage)
-40 … +85 °C
Derating
See instruction manual
Relative humidity
10 … 95 % (no condensation permissible)
Input
Input voltage range
DC 18 … 30 V
Nominal input voltage Uᵢ ₙₒₘ
DC 24 V
Material data
Weight
37 g
Mechanical data
Mounting type
DIN-35 rail
Output
Active current limitation
No
Current limitation
No
Default setting
DC 1 A; switched off
Nominal output current Iₒ ₙₒₘ
1 x 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 A (adjustable)
Nominal output voltage Uₒ ₙₒₘ
1 x DC 24 V
Output voltage range
DC 18 … 30 V (Ue − voltage drop)
Switch-on behavior
Time-delayed channel switching (load-dependent, min. 170 ms/max. 500 ms)
Switch-on capacity
> 50000 µF per channel
Total number of channels (module)
1
Trip time
4 ms … 100 s (load-dependent)
Voltage drop
≤ 25 mV (8 A)
Physical data
Depth from upper-edge of DIN-rail
97.8 mm
Height
94 mm
Width
6 mm
Safety and protection
Isolation voltage (connectors – housing)
DC 0.5 kV
MTBF
1,262,142 h (per MIL-HDBK-217F2)
Parallel operation of single channels
Not permitted
Pollution degree
2
Protection class
III
Protection type
IP20; per EN 60529
Reverse voltage protection
No
Series operation
No
Transient suppression (primary)
Suppressor diode (33 V)
Signaling and communication
Operation status indicator
Red LED (tripped channel)
Remote input
18 … 30 VDC signal, switches on/off and resets the channel
Signaling
1 x Status LED (green/yellow/red/blue/violet)
Standards and specifications
Conformity marking
CE
Standards/specifications
UL 61010-2-201
