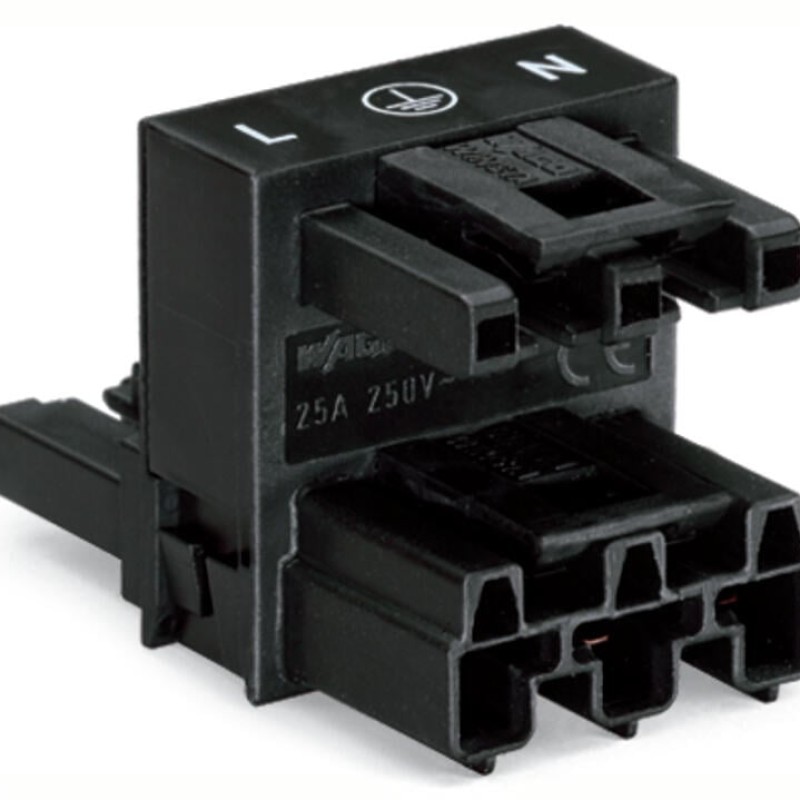

Description 770-633 h-distribution connector;3-pole;Cod. A;black
Distribution connector WINSTA® MIDI with protection against mismating
Use effective pluggable connections instead of laborious screw connections: With the WINSTA® MIDI distribution connector with protection against mismating. On PCBs, in control cabinets or for connecting lights – pluggable installation connectors from WAGO allow you to establish connections according to an enormous variety of requirements in next to no time. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). The WINSTA® MIDI pluggable installation connector with A coding in white or black is normally used for general mains applications in power distribution. Important parameters in the selection of a pluggable installation connector are the rated current and voltage: They provide information about possible domains of use and applications. This product has a current rating of 25 A – as a result it is suitable for robust loads. The WINSTA® MIDI Pluggable Connection System with Push-in CAGE CLAMP® spring pressure connection technology facilitates safe electrification. Due to the included test slot, it is possible to check connections even when they are plugged in. That saves time and reduces installation labor and costs.
Push-in CAGE CLAMP® spring pressure connection technology – pluggable installation instead of laborious screw connections!
WINSTA® is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably. Now you can also lower installation costs without compromising safety and quality: with marking eliminates the need for servicing and prevents unnecessary downtime.
- pluggable installation connectors with protection against mismating
- for automation controllers
- with A coding for use in many general mains applications
- ready to install and use immediately
- rapid, structured electrical installation
Main attributes 770-633 h-distribution connector;3-pole;Cod. A;black
Connection 1
Pole number
3
Connection data
PE function
Preceding PE contact
Total number of potentials
3
Environmental requirements
Continuous operating temperature
-35 … +85 °C
Note on continuous operating temperature
Insulating parts for temperatures ≤ 105 °C
Processing temperature
-5 … +40 °C
Material data
Color
black
Contact material
Copper or copper alloy; surface-treated
Contact plating
Tin
Fire load
0.617 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Weight
22.8 g
Mechanical data
Coding
A
Marking
L ⏚ N
Mating force of a plug-in connection
approx. 20 … 70 N (depending on pole number)
Number of mating cycles
200, without resistive load
Potential marking
L ⏚ N
Protection type
IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
Retention force of a plug-in connection
When locked: > 80 N
Type of distribution box
h-distribution connector, outputs at both ends
Unmating force of a plug-in connection
Unlocked: approx. 20 … 70 N (depending on pole number)
Use
General mains applications
Physical data

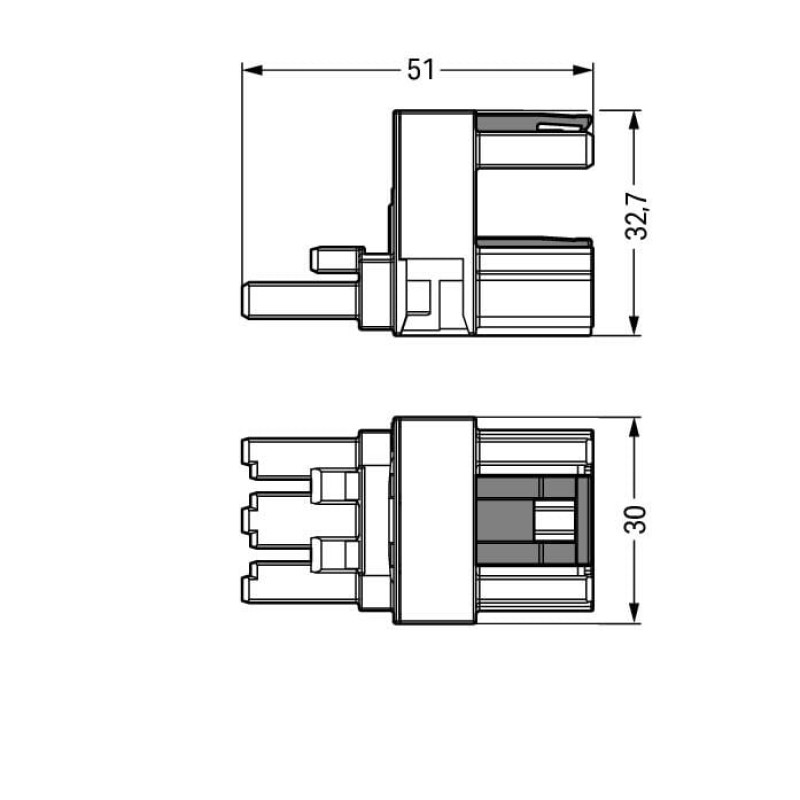

Depth
51 mm
Height
32.7 mm
Pin spacing
10 mm
Width
30 mm
Plug-in connection
Contact type (pluggable connector)
Socket/plug
Locking lever
yes
Locking of plug-in connection
locking lever
Mismating protection
Yes
Note on locking system
All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers
Note on mismating protection
All WINSTA® components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
