Description 770-505 Strain relief housing;5-pole;for 2 cables;black

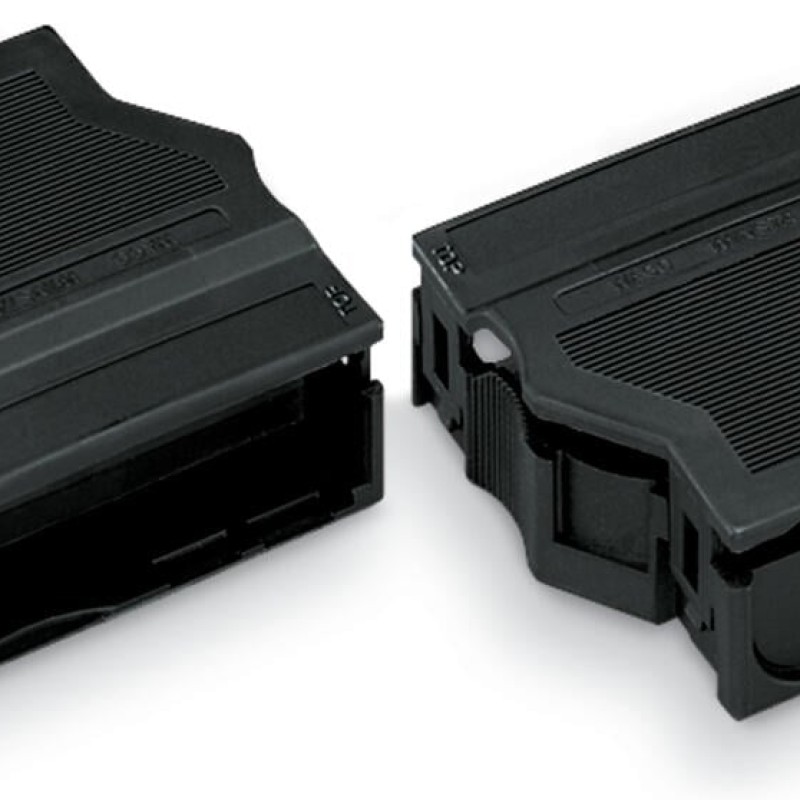

Strain relief housing WINSTA® MIDI 5-pole
The strain relief housing from the WINSTA® MIDI product line guarantees you the greatest possible flexibility in electrical installation. With WAGO, you can enjoy the advantages of a large selection of expansions for the WINSTA® product line. WINSTA® MIDI with Push-in CAGE CLAMP® spring pressure connection technology is used in a broad range of individual products you can use for quick, easy, flexible, and secure installation. The strip length is 55 mm.
WINSTA® MIDI solutions for your electrical installation – protected against mismating and maintenance-free
WINSTA® is the pluggable connection system that is perfectly tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably. Now you can also lower installation expenses without compromising quality and safety: with protection against mismating eliminates the need for servicing and prevents unnecessary downtime.
- simple circuits
- quick replacement of defective units during ongoing operation
Main attributes 770-505 Strain relief housing;5-pole;for 2 cables;black
Connection 1
Connectable sheathed cable diameter
9 … 13 mm
Pole number
5
Strip length (outer insulation)
55 mm
Environmental requirements
Continuous operating temperature
-35 … +85 °C
Note on continuous operating temperature
Insulating parts for temperatures ≤ 105 °C
Processing temperature
-5 … +40 °C
Material data
Color
black
Fire load
0.376 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
13 g

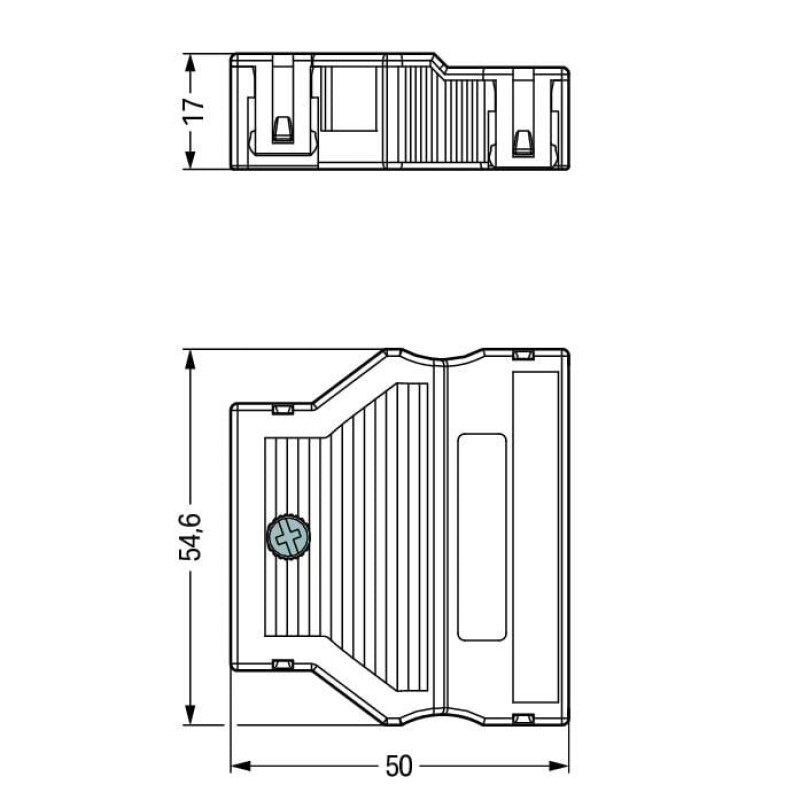

Physical data
Depth
50 mm
Height
17 mm
Pin spacing
10 mm
Width
54.6 mm
