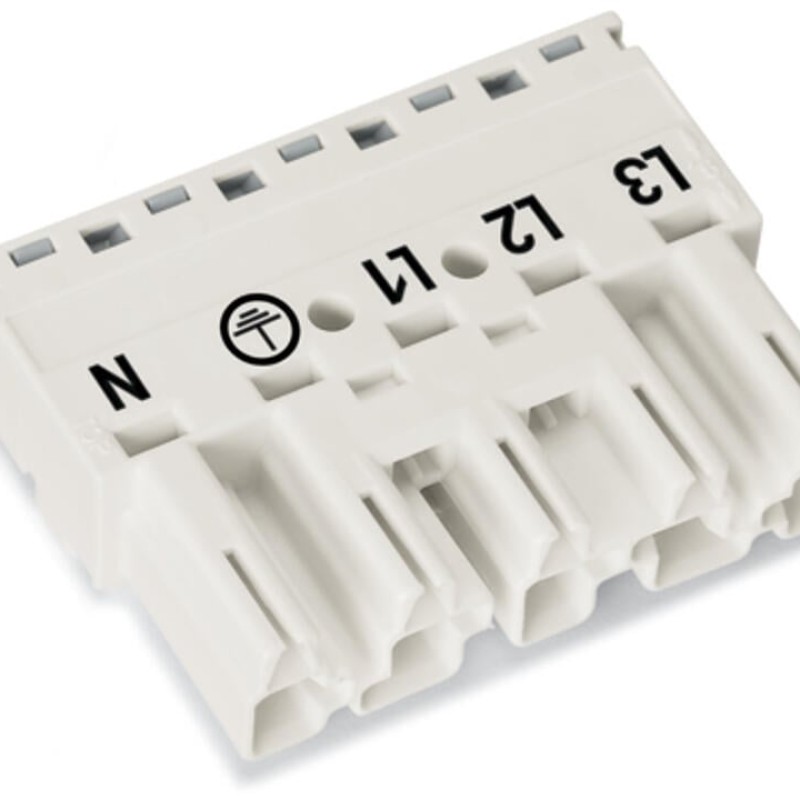

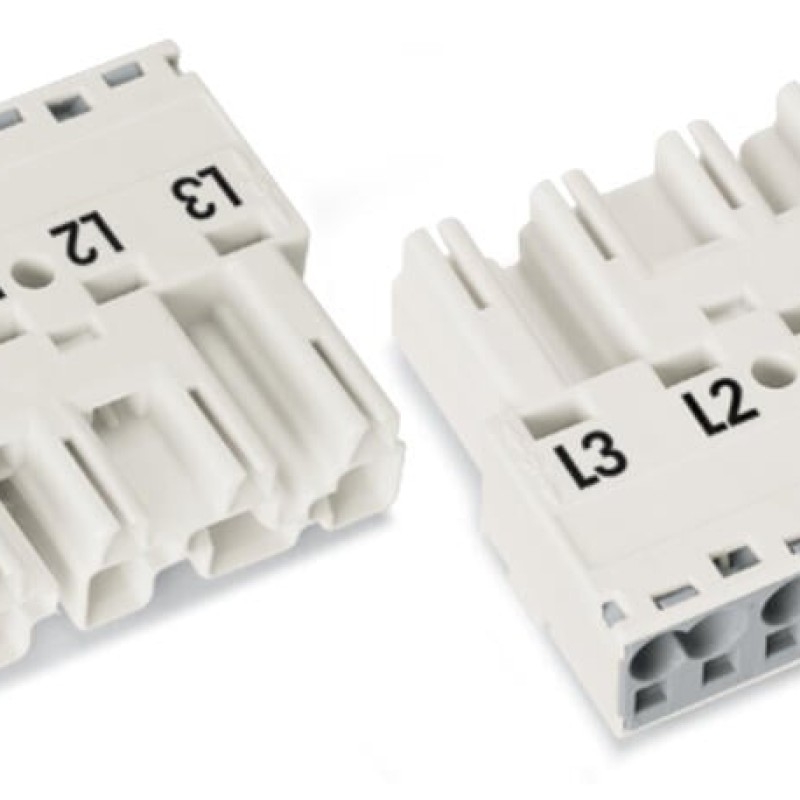

Description 770-235 Plug;5-pole;Cod. A;white
Male connector/plug WINSTA® MIDI rated current 25 A
The WINSTA® MIDI male connector/plug with protection against mismating provides the foundation for assembly of fine-stranded and solid conductors. Whether on PCBs, in control cabinets or for connecting lights – pluggable installation connectors from WAGO allow you to make connections according to an enormous variety of requirements in seconds. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20 (When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). General mains applications for almost any domain of use can be realised with WINSTA® MIDI pluggable installation connectors with A coding. This pluggable installation connector can be used for electrical currents up to 25 A. Thus the product is especially suitable for high power loads. The WINSTA® MIDI product line offers flexibility for the electrical installation. Through its Push-in CAGE CLAMP® spring pressure connection technology, it ensures error-free, time-saving installation and offers customization and flexibility for meeting various installation requirements.
WINSTA® MIDI solutions for your electrical installation – protected against mismating and maintenance-free
The WINSTA® Pluggable Connection System is ideally tailored to the strict requirements of building installation. It makes electrical installation pluggable, and thus more efficient, even more reliable, and error-free. Using this pre-assembled system decreases assembly times and errors during installation at the construction site. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with protection against mismating from WAGO.
- protection against mismating eliminates errors
- pre-assembled versions
- for any mains application
- ready to install and use immediately
- convenient installation and commissioning
Main attributes 770-235 Plug;5-pole;Cod. A;white
Connection 1
Actuation type
Push-in
Conductor entry direction to mating direction
0 °
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.5 … 4 mm² / 20 … 12 AWG
Fine-stranded conductor; with ferrule; push-in termination
1.5 mm² / 16 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm² / 20 … 16 AWG
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5 mm² / 20 … 14 AWG
Nominal cross-section
4 mm² / 12 AWG
Pole number
5
Solid conductor
0.5 … 4 mm² / 20 … 12 AWG
Solid conductor; push-in termination
1.5 … 4 mm² / 16 … 12 AWG
Stranded conductor
0.5 … 2.5 mm² / 20 … 14 AWG
Strip length
9 mm
Connection data
Clamping units
10
PE function
Preceding PE contact
Total number of potentials
5
Environmental requirements
Continuous operating temperature
-35 … +85 °C
Note on continuous operating temperature
Insulating parts for temperatures ≤ 105 °C
Processing temperature
-5 … +40 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
white
Contact material
Copper or copper alloy; surface-treated
Contact plating
Tin
Cover color
gray
Fire load
0.386 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
16.3 g
Mechanical data
Coding
A
Marking
L3 L2 L1 ⏚ N
Mating force of a plug-in connection
approx. 20 … 70 N (depending on pole number)
Number of mating cycles
200, without resistive load
Potential marking
L3 L2 L1 ⏚ N
Protection type
IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
Retention force of a plug-in connection
Locked: > 80 N
Unmating force of a plug-in connection
Unlocked: approx. 20 … 70 N (depending on pole number)
Use
General mains applications
Variable coding
Yes
Physical data
Depth
37.5 mm
Height
12.9 mm
Pin spacing
10 mm
Width
50 mm
Plug-in connection
Connector (connection type)
for conductor
Contact type (pluggable connector)
Male connector/plug
Locking lever
Can be retrofitted
Locking of plug-in connection
locking lever
Mismating protection
Yes
Note on locking system
All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers
Note on mismating protection
All WINSTA® components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
