Article: 762-4103
Brand: Wago
94953.94 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

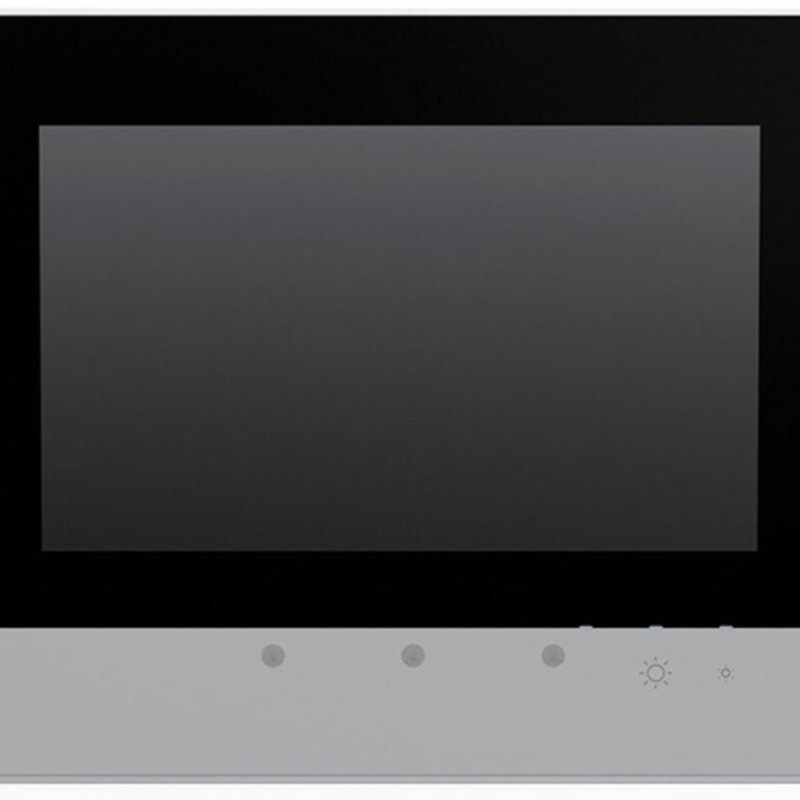

Description 762-4103 Touch Panel 600;17.8 cm (7.0");800 x 480 pixels
PIO1 hardware configuration
- 2 x ETHERNET port for connecting to field devices and the engineering tool
- 2 x USB port for optional connection of a USB stick, mouse or keyboard
Main attributes 762-4103 Touch Panel 600;17.8 cm (7.0");800 x 480 pixels
Connection data
Connection technology: communication/fieldbus
Web browser: 2 x RJ-45; 2 x USB 2.0 host (type A)
Connection technology: supply
1 x Included female connector (734-103) with three CAGE CLAMP® connections
Environmental requirements
Ambient temperature (operation)
-20 … +55 °C (when mounted vertically; −20 … +50 °C, other mounting positions)
Ambient temperature (storage)
-20 … +80 °C
Fire load
0.003 MJ
Mounting type
Clamping elements (included) or VESA mount (4 x M4x8)
Note on protection type
IP65 (front side); IP20 (rear side), per EN 60529
Protection type
IP65
Relative humidity (without condensation)
90 %
Material data
Fire load
0.003 MJ
Weight
982 g
Mechanical data
Mounting type
Clamping elements (included) or VESA mount (4 x M4x8)
Physical data
Depth
58 mm
Height
167 mm
Panel cutout (W x H)
(198 x 152) mm
Width
213 mm
Technical data
Brightness
450 cd/m2
Communications
Web browser (HTML5)
Contrast ratio
800:1
Control Elements
Resistive touch panel, two capacitive keys, proximity sensor
Display
Resistive touchscreen
Display colors
16 million colors
Display diagonal
17.8 cm (7 inches)
ETHERNET protocols
SSH
Graphics resolution
(800 x 480) px
Indicators
Three-color LED (red, green, blue)
Internal memory (flash)
4096 MB
Main memory (RAM)
2,048 MB
Operating power
8.6 W, without USB load; 13.7 W, with USB load
Operating system
Real-time Linux (with PREEMPT_RT patch)
Processor
ARM® Cortex® A9 Quad-Core 1.0 GHz
Supply voltage
24 VDC, SELV (18 … 31.2 V); with reverse voltage protection
Type of memory card
microSD (max. 2 GB); microSDHC (max. 32 GB)
Viewing angle (horizontal/vertical)
89° / 89°
Visualization
Web server
