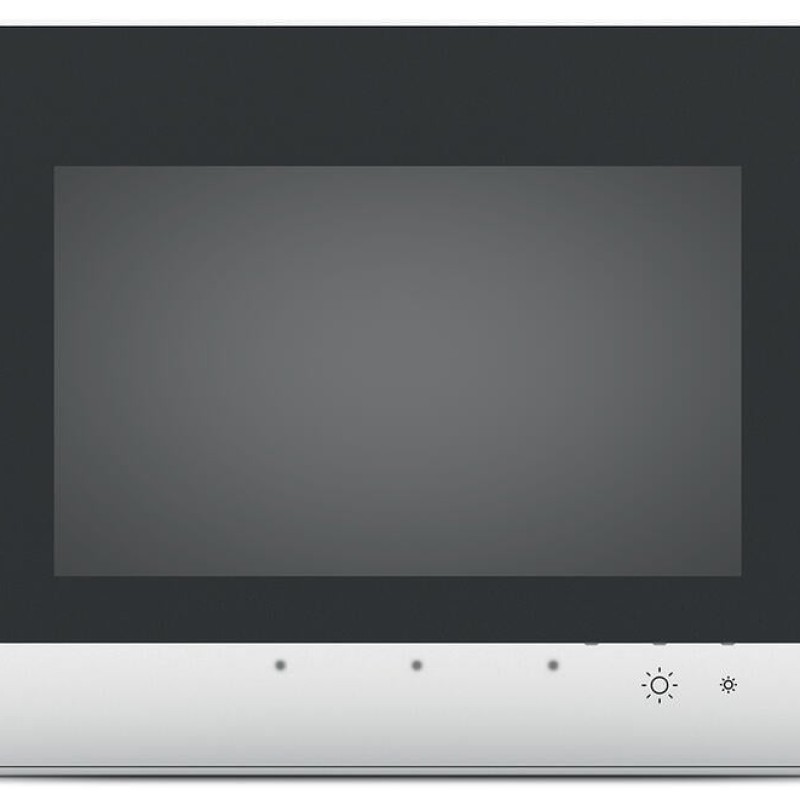

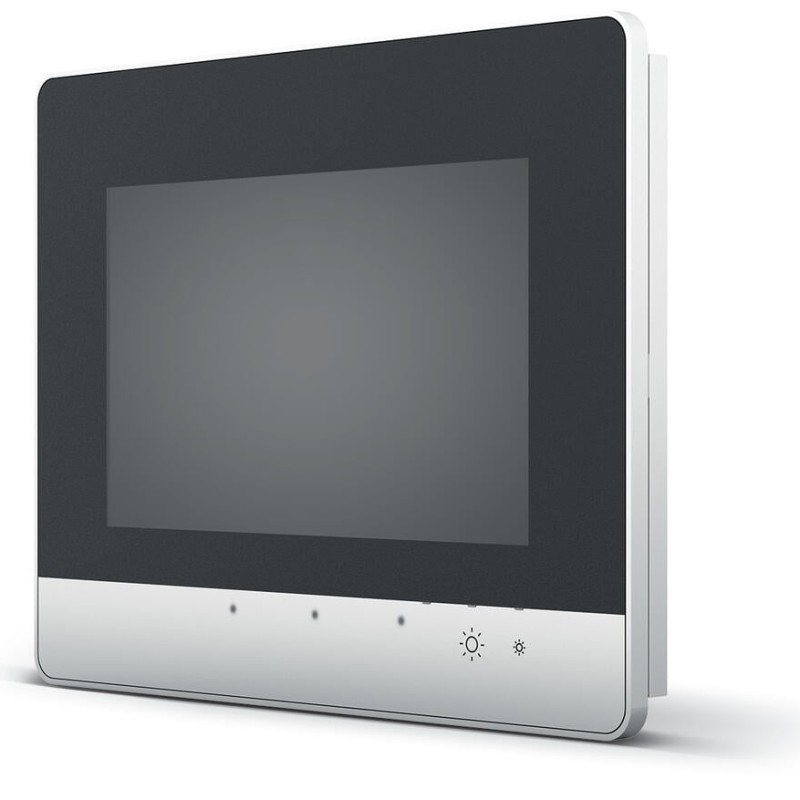

Description 762-3002 Web Panel;17.8 cm (7.0");800 x 480 pixels
Specifically configured as a Web browser, the Web Panel directly connects to controllers with their own Webservers.
The e!COCKPIT (CODESYS 3) or CODESYS 2.3 Web visualization has been specifically optimized for the Web Panel.
Note: Web visualization on e!DISPLAY is no longer supported starting with CODESYS V3 IDE 3.5.16.xx.
Main attributes 762-3002 Web Panel;17.8 cm (7.0");800 x 480 pixels
Connection data
Connection technology: communication/fieldbus
Modbus (TCP): 2 x RJ-45; USB: 2 x USB 2.0 host (type A)
Environmental requirements
Ambient temperature (operation)
0 … +55 °C
Ambient temperature (storage)
-20 … +80 °C
Fire load
0.003 MJ
Mounting type
Clamping elements (included) or VESA mount (4 x M4x8)
Note on protection type
IP65 (front side); IP20 (rear side), per EN 60529
Protection type
IP65
Relative humidity (without condensation)
90 %
Material data
Conformity marking
CE
Fire load
0.003 MJ
Front panel
Anodized aluminum, polyester film
Housing material
Anodized aluminum
Weight
1262 g
Mechanical data
Mounting type
Clamping elements (included) or VESA mount (4 x M4x8)
Physical data
Depth
58 mm
Height
167 mm
Panel cutout (W x H)
(198 x 152) mm
Width
213 mm
Technical data
Brightness
450 cd/m2
Communications
Web browser (CODESYS2)
Contrast ratio
800:1
Control Elements
Resistive touch panel, two capacitive keys, proximity sensor
Display
Resistive touchscreen
Display colors
16 million colors
Display diagonal
17.8 cm (7 inches)
ETHERNET protocols
SSH
Graphics resolution
(800 x 480) px
HBT (Half Brightness Time)
30,000 h
Indicators
Three-color LED (red, green, blue)
Input current (max.) (24 V)
290 mA
Internal memory (flash)
1024 MB
Main memory (RAM)
512 MB
Operating power
7.3 W (max.)
Operating system
Linux®
Processor
ARM® Cortex™ A8 600 MHz
Supply voltage
24 VDC, SELV (18 … 31.2 V); with reverse voltage protection
Transmission rate
ETHERNET: 10/100 Mbit/s
Type of memory card
microSD (max. 2 GB); microSDHC (max. 32 GB)
Viewing angle (horizontal/vertical)
89° / 89°
Visualization
Web-Visu
