Description 757-303 M8 sensor/actuator box;10-way;3-pole
- M8 sensor/actuator box, 10-way
- 3-pole (1 signal per contact)
- M16 connector (14‑pole)
- Green LED operating indicator
- Yellow LED status indicator
- incl. marking strips (WMB markers can also be used)
- incl. M8 protective caps (2 pcs)
Main attributes 757-303 M8 sensor/actuator box;10-way;3-pole
Connection data
Connection technology: inputs/outputs
10 x M8 socket; 3-pole
Connection technology: trunk cable
1 x M16 plug; 14-pole
Environmental requirements
Ambient temperature (operation)
-25 … +80 °C
Note on protection type
per EN 60529 (NEMA 6 & 6P) in fully locked position with its plugs or protective caps
Pollution degree
3 per VDE 0110
Protection type
IP67
Shock resistance
per IEC 60068-2-27
Vibration resistance
per IEC 60068-2-6
Material data
Encapsulation
Fully encapsulated with conformal coating (UL 94 V0)
Housing material
PA 66 (UL 94 V0); RAL 7035; silicon and halogen free
Material properties of the connections
Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles
Mechanical data
Mounting type
Screw mounting
Weight
160 g

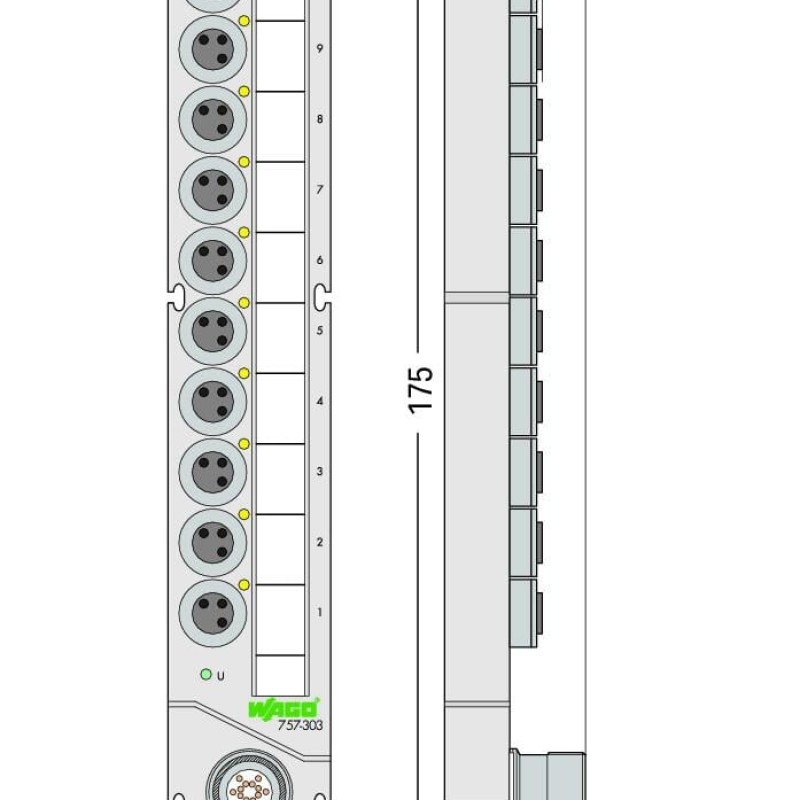

Physical data
Depth
175 mm
Height
26 mm
Width
30 mm
Technical data
Contact resistance (max.)
0.01 Ω
Current carrying capacity (signal connections)
2 A
Current carrying capacity (supply connections)
6 A
Functionally separated potential groups
Kontakt/Kontakt
Indicators
LED yellow: Signal status (1 x per contact); LED (U) green: Sensor/actuator box status
Insulation resistance
>109 Ω
Rated value of electrical isolation
500 V
Signal characteristics
PNP
Supply voltage
10 … 30 VDC; Rated voltage: 32 V ~ rms
