757-144 M12 sensor/actuator box;4-way;4-pole

Name: 757-144 M12 sensor/actuator box;4-way;4-pole
Brand: Wago
Price: 3505.18 UAH
Availability: OutOfStock

Pre-Order

Article: 757-144

Brand: Wago

3,505.18 грн.

Found it cheaper?

Short description

M12 sensor/actuator box, 4-way4-pole (1 signal per contact)M23 connector (12‑pole)Green LED operating indicatorYellow LED status indicatorincl. markers (10 pcs)incl. M12 protective caps (2 pcs) ...

Brief Attributes

Connection technology: inputs/outputs - 4 x M12 socket; 4-pole; incl. ground

Connection technology: trunk cable - 1 x M23 plug; 12-pole

Ambient temperature (operation) - -25 … +80 °C

Note on protection type - per EN 60529 (NEMA 6 & 6P) in fully locked position with its plugs or protective caps

Pollution degree - 3 per VDE 0110

Encapsulation - Fully encapsulated with conformal coating (UL 94 V0)

Housing material - PA 66 (UL 94 V0); RAL 7035; silicon and halogen free

Material properties of the connections - Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles

See all attributes

Payment

Delivery

Delivery by Nova Poshta

The nearest branch addresses can be viewed on the map.

from

150.00 грн.

Pickup (Kyiv)

For free

Description 757-144 M12 sensor/actuator box;4-way;4-pole

M12 sensor/actuator box, 4-way
4-pole (1 signal per contact)
M23 connector (12‑pole)
Green LED operating indicator
Yellow LED status indicator
incl. markers (10 pcs)
incl. M12 protective caps (2 pcs)

Main attributes 757-144 M12 sensor/actuator box;4-way;4-pole

Connection data

Connection technology: inputs/outputs 4 x M12 socket; 4-pole; incl. ground

Connection technology: trunk cable 1 x M23 plug; 12-pole

Environmental requirements

Ambient temperature (operation) -25 … +80 °C

Note on protection type per EN 60529 (NEMA 6 & 6P) in fully locked position with its plugs or protective caps

Pollution degree 3 per VDE 0110

Protection type IP67

Shock resistance per IEC 60068-2-27

Vibration resistance per IEC 60068-2-6

Material data

Encapsulation Fully encapsulated with conformal coating (UL 94 V0)

Housing material PA 66 (UL 94 V0); RAL 7035; silicon and halogen free

Material properties of the connections Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles

Mechanical data

Mounting type Screw mounting

Weight 180 g

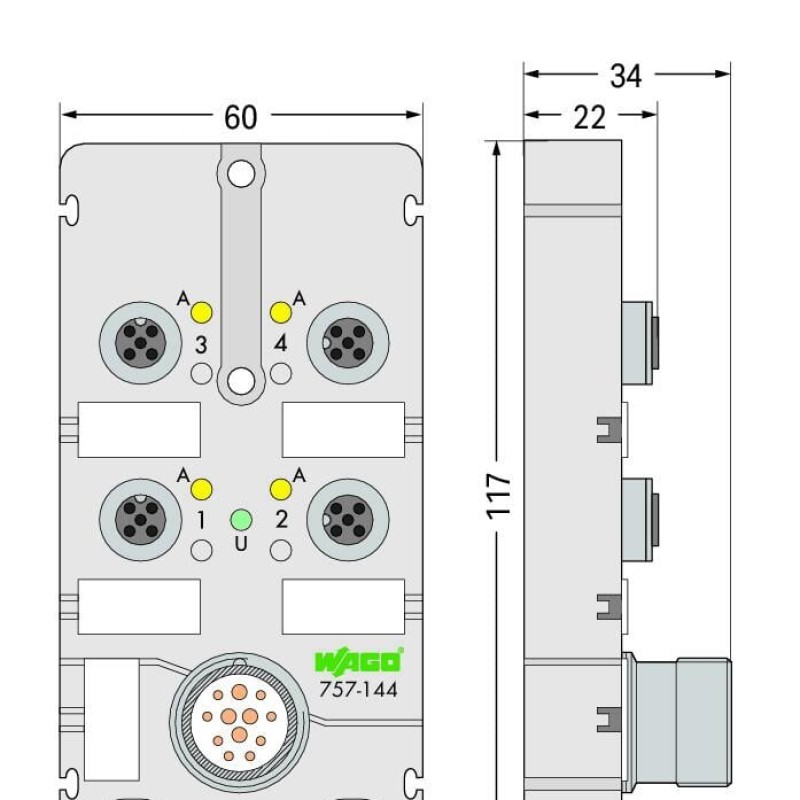

Physical data

Depth 117 mm

Height 34 mm

Width 60 mm

Technical data

Contact resistance (max.) 0.01 Ω

Current carrying capacity (signal connections) 2 A

Current carrying capacity (supply connections) 9 A

Functionally separated potential groups Kontakt/Kontakt
