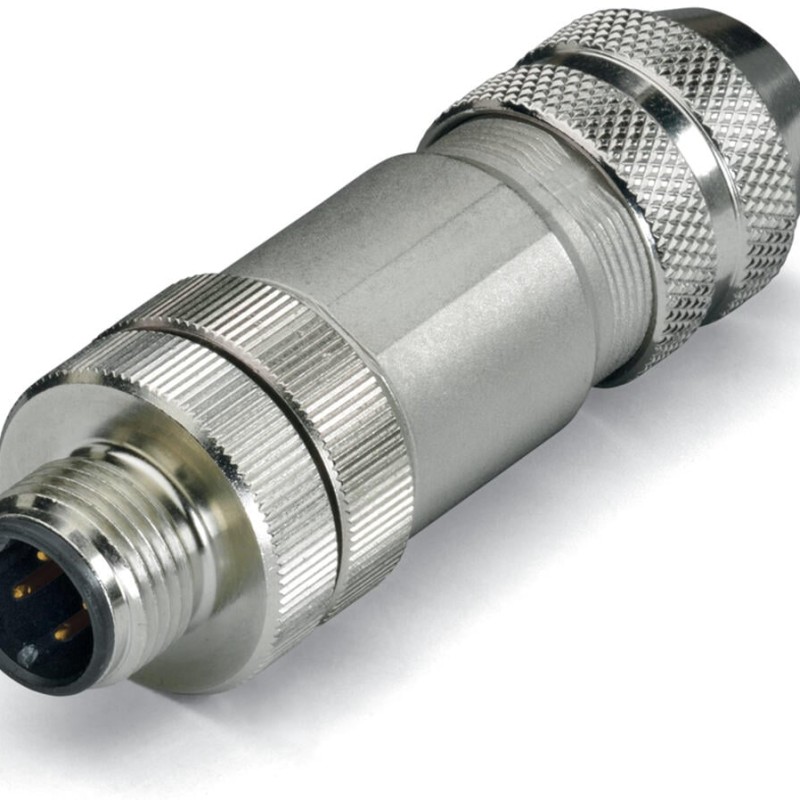

756-9501/060-000 Fitted pluggable connector;4-pole, shielded;M12 plug, straight, D-coded

756-9501/060-000 Fitted pluggable connector;4-pole, shielded;M12 plug, straight, D-coded
756-9501/060-000 Fitted pluggable connector;4-pole, shielded;M12 plug, straight, D-coded
756-9501/060-000 Fitted pluggable connector;4-pole, shielded;M12 plug, straight, D-coded
In stock
Article: 756-9501/060-000
Brand: Wago
1452.73 грн.
Payment
Delivery
Delivery by Nova Poshta
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
Pickup (Kyiv)
For free

Description 756-9501/060-000 Fitted pluggable connector;4-pole, shielded;M12 plug, straight, D-coded

Main attributes 756-9501/060-000 Fitted pluggable connector;4-pole, shielded;M12 plug, straight, D-coded

Connection data
Connection type 1 Spring clamp technology
Solid conductor 0.14 … 0.5 mm² / 20 AWG
Environmental requirements
Ambient temperature (operation) -25 … +85 °C
Note on protection type in locked state
Pollution degree 3
Protection type IP67

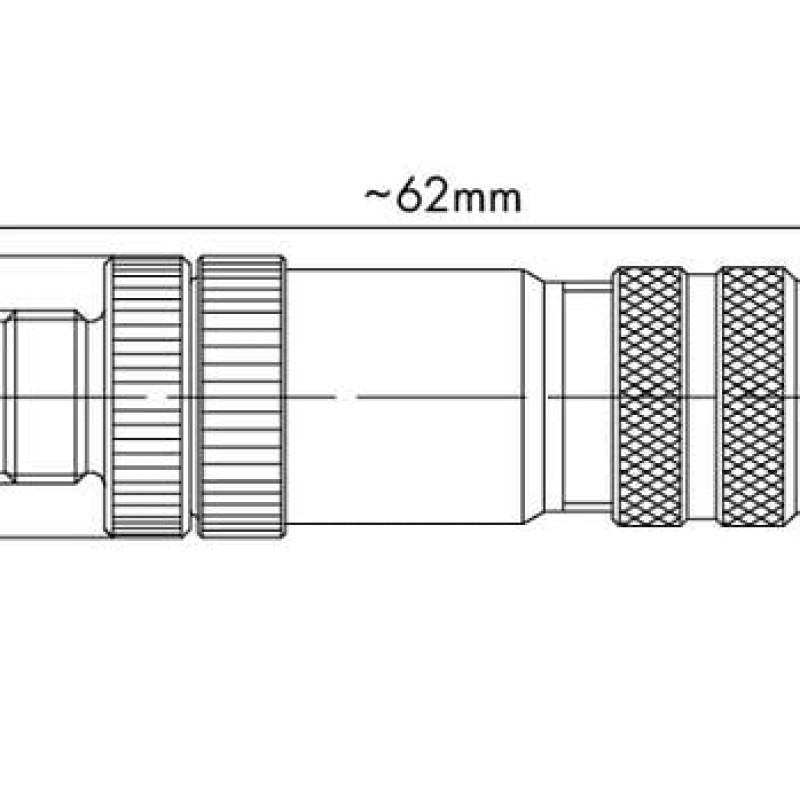

Mechanical data
Connectable sheathed cable diameter 6 … 8 mm
Contact material CuZn
Contact plating Gold
Dichtungsmaterial Sealing ring: neoprene; O-ring: Viton
Housing material Die-cast zinc, nickel-plated
Mating cycles (max.) 100
Weight 4.3 g
Technical data
Cable connection direction to mating direction 0 °
Connection point (shielded) yes
Connection type M12 plug

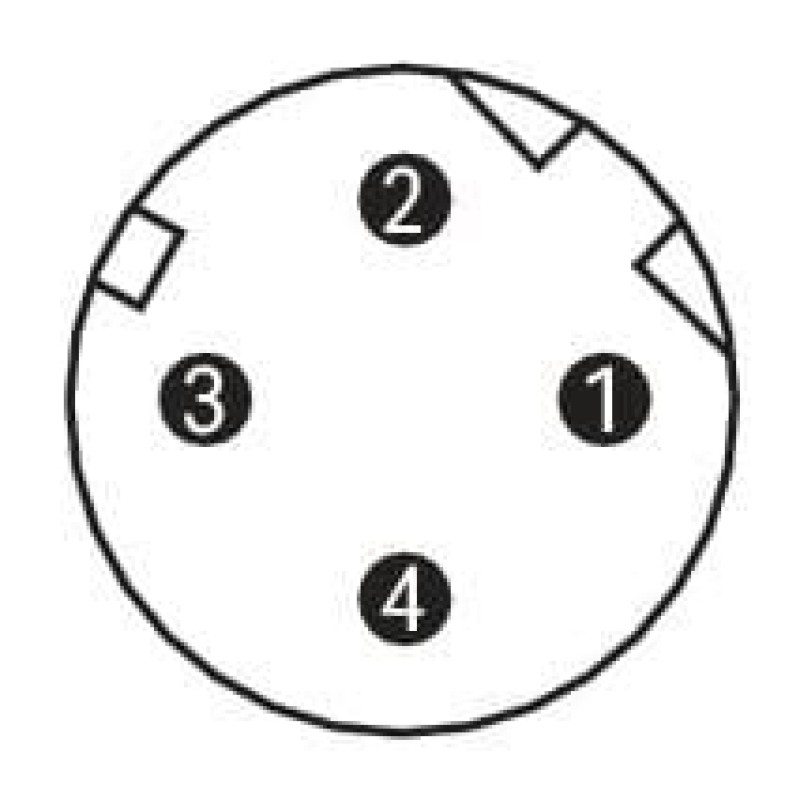

Connector interface coding (cable/adapter) 1 1 D-coded
Contact resistance ≤3 mΩ
Pole number 4
