Article: 756-9206/040-000
Brand: Wago
469.07 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

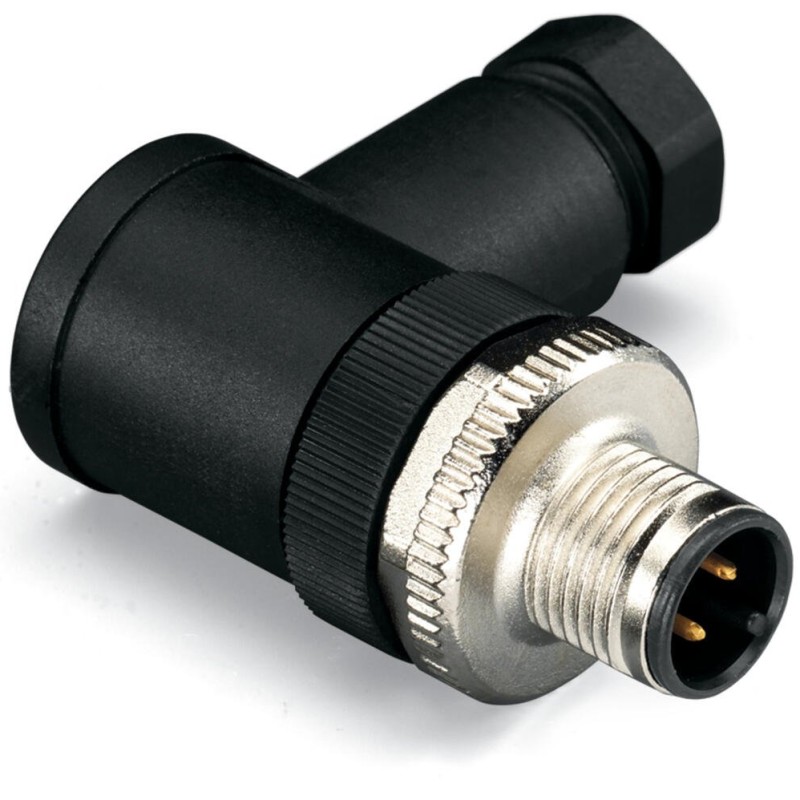

Description 756-9206/040-000 Fitted pluggable connector;4-pole;M12 plug, right angle
Main attributes 756-9206/040-000 Fitted pluggable connector;4-pole;M12 plug, right angle
Connection data
Connection type 1
Screw clamp technology
Solid conductor
0.25 … 0.75 mm²
Environmental requirements
Ambient temperature (operation)
-25 … +85 °C
Note on protection type
in locked state
Pollution degree
3
Protection type
IP67
Mechanical data
Connectable sheathed cable diameter
6 … 8 mm
Contact material
CuZn
Contact plating
Gold
Dichtungsmaterial
Sealing ring: neoprene
Housing material
Polybutylene terephthalate (PBT)
Mating cycles (max.)
100
Weight
24 g
Technical data
Cable connection direction to mating direction
90 °
Connection type

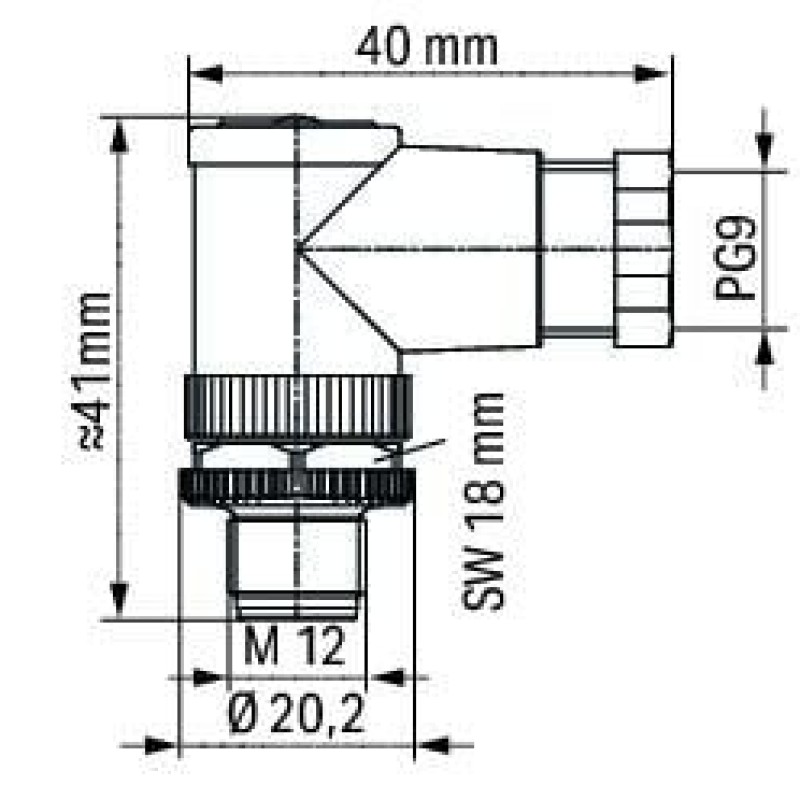

M12 plug
Connector interface coding (cable/adapter) 1 1
A-coded
Contact resistance
≤3 mΩ

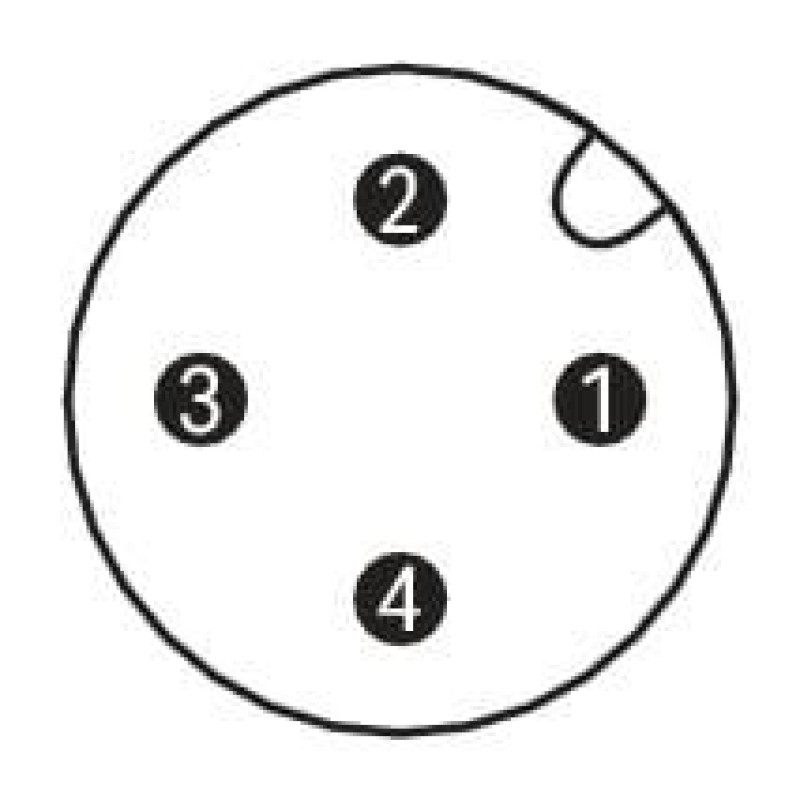

Pole number
4
