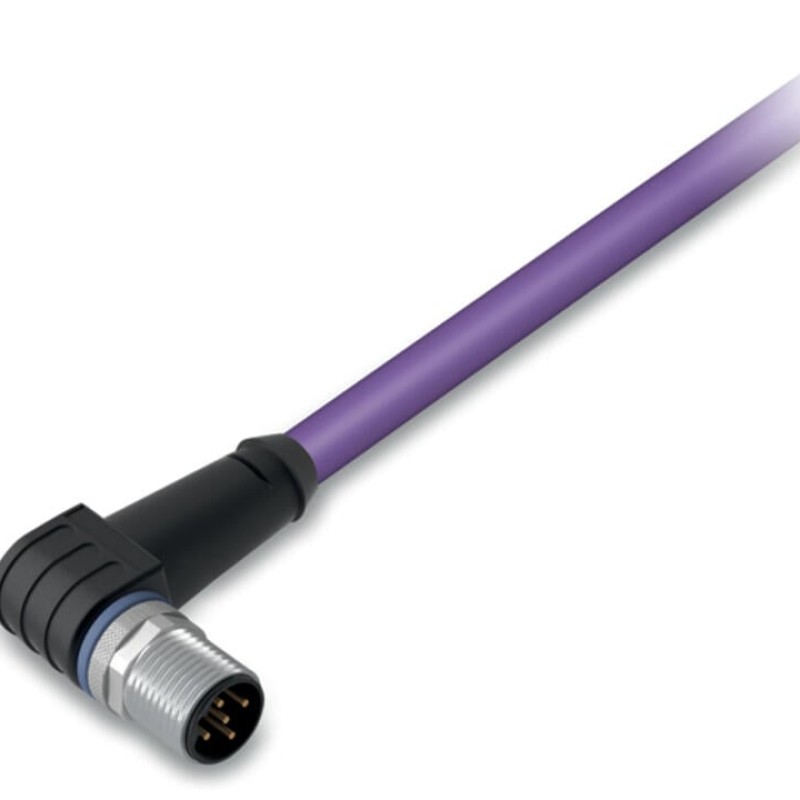

Description 756-1404/060-020 CANopen/DeviceNet cable;M12A plug; angled;5-pole;violet
Short description:
- PUR VT, halogen-free
- Suitable for drag chains
- High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
- High chemical resistance
- Cable used: UL listed
Main attributes 756-1404/060-020 CANopen/DeviceNet cable;M12A plug; angled;5-pole;violet
Environmental requirements
Ambient (operating) temperature (dynamic)
-40 … +80 °C
Ambient (operating) temperature (static)
-40 … +80 °C
Pollution degree
3/2 per IEC 60664-1
Protection type
IP67
Mechanical data
Bending cycles
5 Mio.
Bending radius
5 x cable diameter (min.)
Color
violet
Conductor configuration
Bare copper wire (19 x 0.125 mm)
Conductor insulation
Halogen-free PE
Drag chain capability
yes
Housing material
TPU/TPU, black (~ RAL 9005)
Shield
tinned copper braid, optical coverage approx. 85 %
Tightening torque
1 Nm
Type code
L-02YC11Y 2xAWG24 + 2xAWG22/1.4-120 VI FRNC, shielded
Weight
151 g
Technical data
Cable connection direction to mating direction
90 °

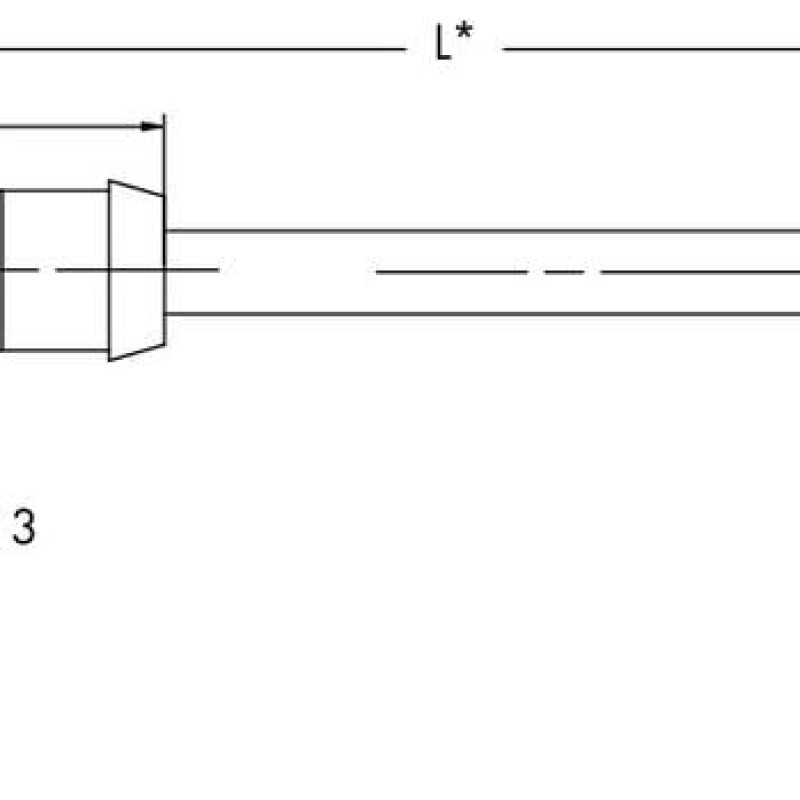

Cable length
2 m
Communication/fieldbus
CANopen
Communication/fieldbus (2)
DeviceNet
Conductor resistance
≤ 57 Ω/km (22 AWG) + ≤ 79 Ω/km (24 AWG)
Connection type
M12 plug - free end
Connector interface coding (cable/adapter) 1 1
A-coded
Contact resistance
10 mΩ
Insulation resistance
≥ 2 x 108 Ω/km
Operating current
4 A
Operating voltage
≤ 300 V

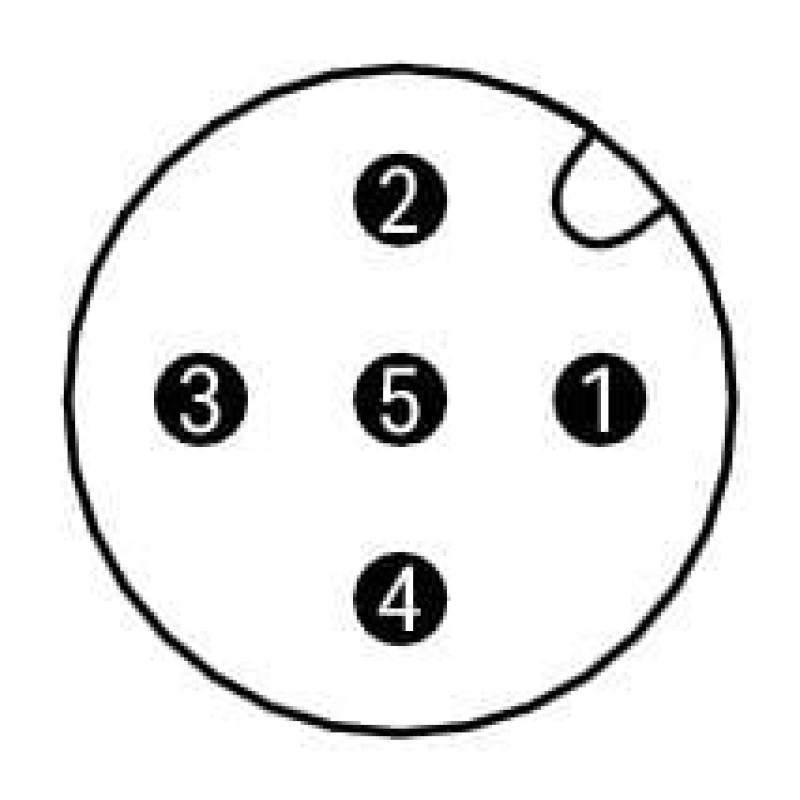

Pole number
5
Rated surge voltage
2 kV
