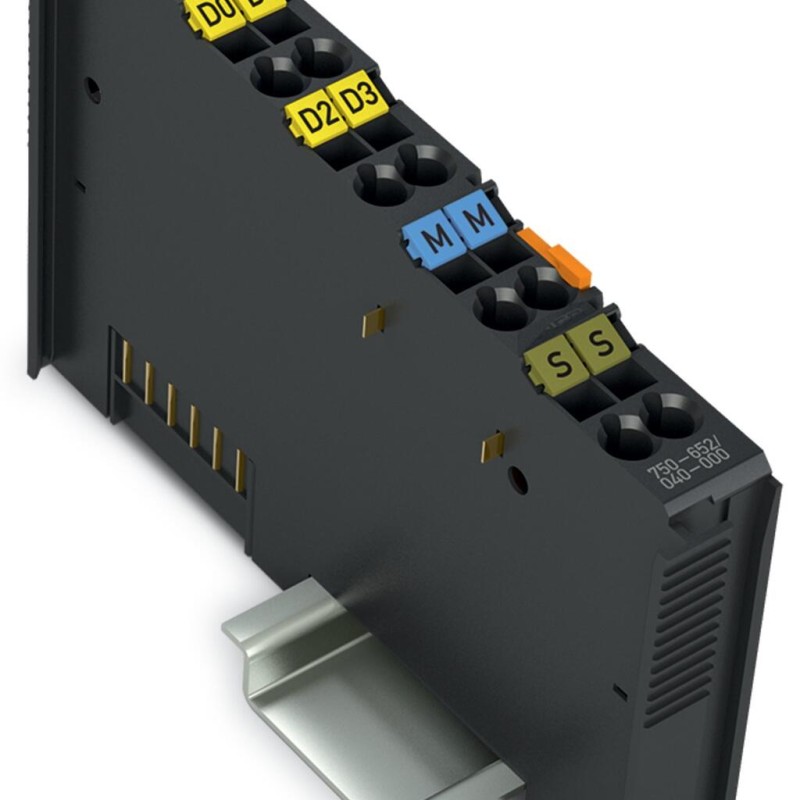

Description 750-652/040-000 RS-232/485 Serial Interface;Extreme;dark gray

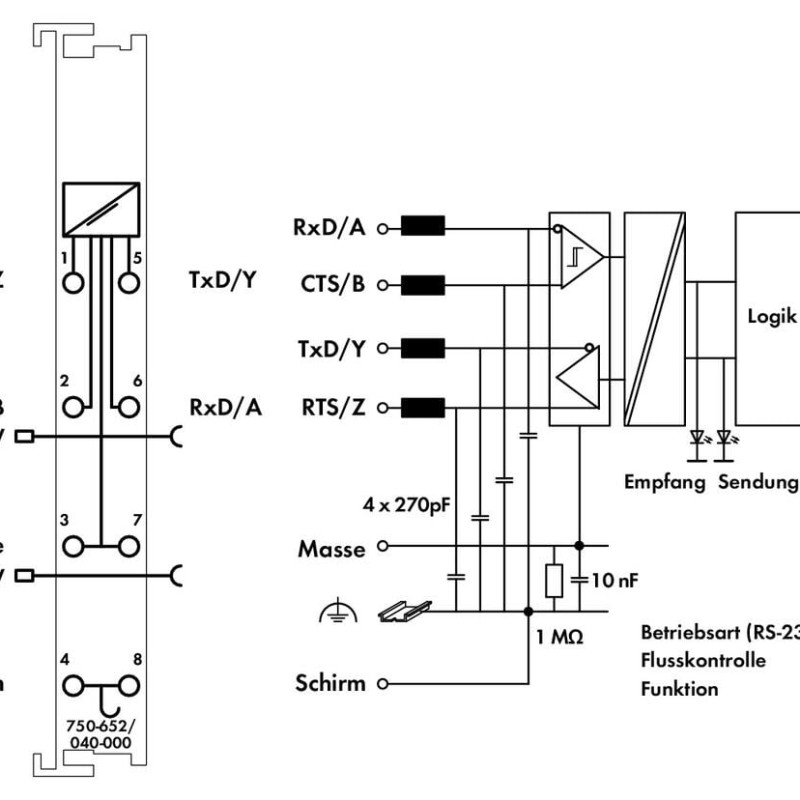

This serial interface module connects RS-485, RS-422 or RS-232 interface devices to the WAGO I/O System 750. It also provides gateways between the serial interface and the fieldbus systems supported by the WAGO I/O System 750. No higher protocol level is required by the module. Communication to the associated fieldbus master is completely transparent, which provides a wide range of applications for the serial interface module. If required, communication protocols can be configured via fieldbus master.
The 2560-byte input buffer provides high data baud rates. At lower baud rates, the data received in lower priority tasks is evaluated without data loss.
The 512-byte output buffer provides fast transmission of larger data strings.
The module can be configured via WAGO-I/O-CHECK or GSD files. Both flexible baud rate and data width selection perfectly adapt to the application.
The device is ideal for operation in extreme environments thanks to:
- An extended temperature range
- Greater immunity to impulse voltages and electromagnetic interference
- Higher vibration and shock resistance
Main attributes 750-652/040-000 RS-232/485 Serial Interface;Extreme;dark gray
Connection data

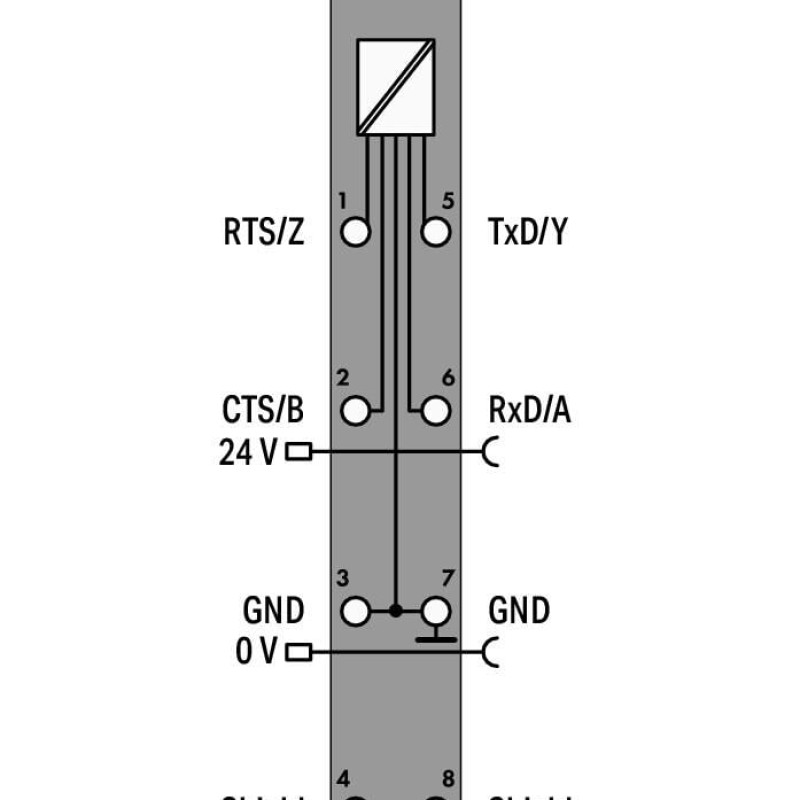

Connection technology: inputs/outputs
8 x CAGE CLAMP®
Connection type 1
Inputs/Outputs
Fine-stranded conductor
0.25 … 2.5 mm² / 24 … 14 AWG
Solid conductor
0.25 … 2.5 mm² / 24 … 14 AWG
Strip length
8 … 9 mm
Environmental requirements
Ambient temperature (operation)
-40 … +70 °C
Ambient temperature (storage)
-40 … +85 °C
EMC emission of interference
per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
EMC immunity to interference
per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;
EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
Exposure to pollutants
Per IEC 60068-2-42 and IEC 60068-2-43
Mounting position
Horizontal left, horizontal up, vertical top and vertical bottom
Operating altitude
without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
Permissible H₂S contaminant concentration
10 ppm
Permissible SO₂ contaminant concentration
25 ppm
Pollution degree
2 per IEC 61131-2
Protection type
IP20
Relative humidity (with condensation)
Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
Relative humidity (without condensation)
95 %
Shock resistance
per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
Vibration resistance
per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
Material data
Color
dark gray
Conformity marking
CE
Fire load
0.958 MJ
Housing material
Polycarbonate; polyamide 6.6
Weight
49 g
Mechanical data
Mounting type
DIN-35 rail
Physical data
Depth
67.8 mm
Depth from upper-edge of DIN-rail
60.6 mm
Height
100 mm
Width
12 mm
Technical data
Bit transfer
RS-485/-422: ISO 8482 / DIN 66259 - 4; RS-232: EIA/TIA-232-F
Buffer
2560 bytes for reception / 512 bytes for transmission
Current carrying capacity (power jumper contacts)
10 A
Current consumption (5 V system supply)
85 mA
Data width
8, 24 or 48 bytes (parameterizable)
Derating
Derating (supply voltage):
Ambient temperatures under laboratory conditions: (−25 … +30 %);
for −40 … +55 °C: 24 V (−25 … +20 %);
for +55 … +70 °C: 24 V (−25 … +10 %);
Lower limit in all temperature ranges: −27.5 % (including 15 % resi
Ambient temperatures under laboratory conditions: (−25 … +30 %);
for −40 … +55 °C: 24 V (−25 … +20 %);
for +55 … +70 °C: 24 V (−25 … +10 %);
Lower limit in all temperature ranges: −27.5 % (including 15 % resi
Indicators

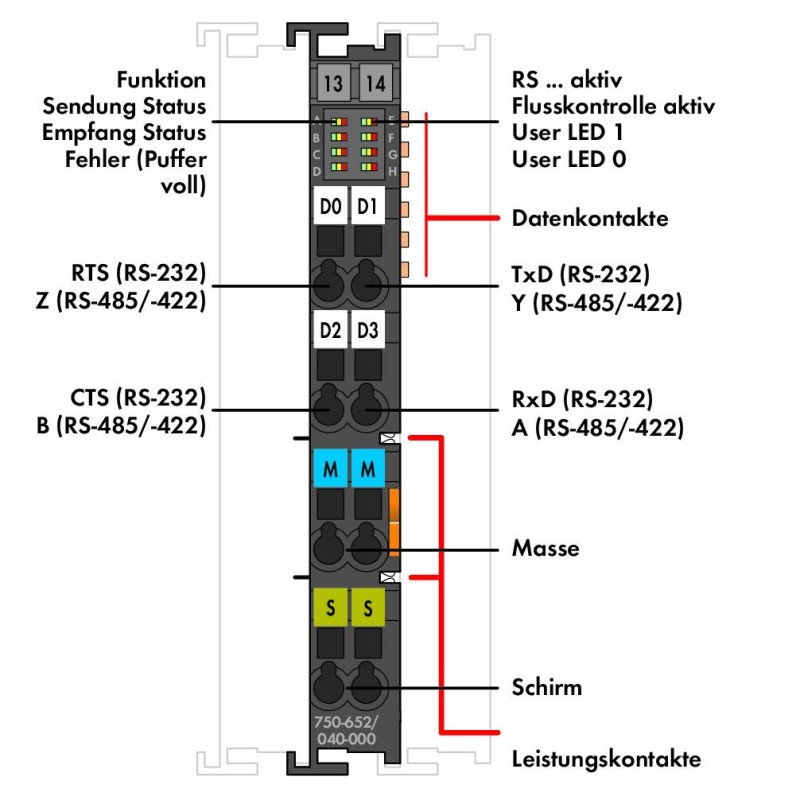

LED (A-H) green/yellow/red: function, transmission status, reception status, error (buffer full), RS … active, flow control active, user LED 1, user LED 0
Line length
RS-485/-422: approx. 1000 m (max.), RS-232: 40 m (max.), data exchange mode/DMX: 100 m (max.) twisted-pair cable
Number of data bits
7/8, adjustable
Number of incoming power jumper contacts
2
Number of outgoing power jumper contacts
2
Number of stop bits
1/2, adjustable
Rated surge voltage
1 kV
Signal type
RS-422 / RS-485
Supply voltage (field)
24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact); Derating must be observed!
Supply voltage (system)
5 VDC; via data contacts
Transmission channels
1 TxD / 1 RxD, full duplex, half duplex, 7- or 8-bit data, 1 or 2 stop bits
Transmission rate
300/115.2 kBd
