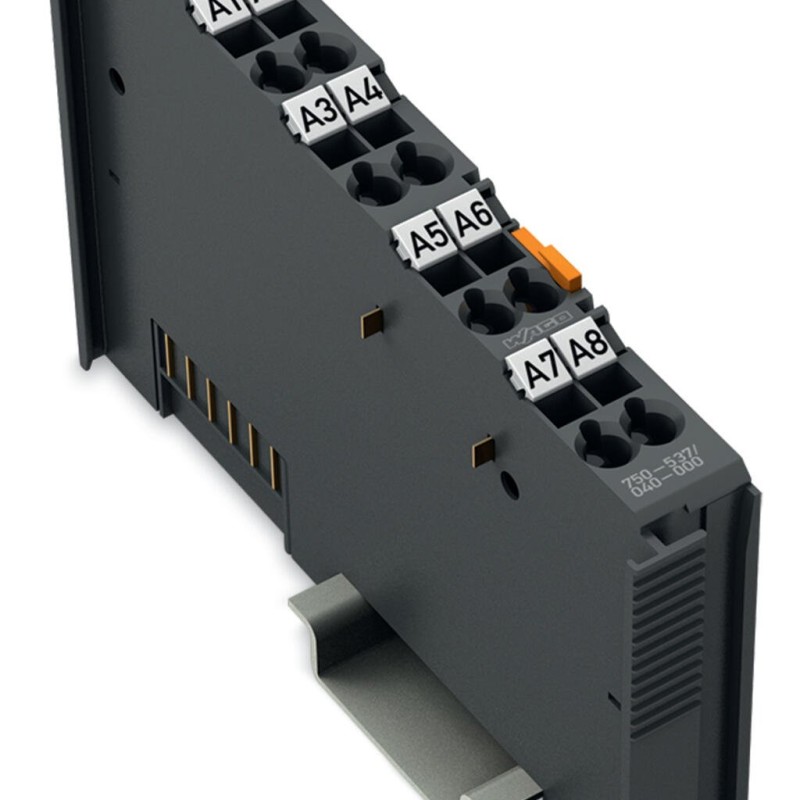

Description 750-537/040-000 8-channel digital output;24 VDC;0.5 A;dark gray
This digital output module transmits control signals from the automation device to the connected actuators.
All outputs are short-circuit-protected.
The module detects the following errors: overload, short circuit and wire break.
Status and diagnostics are displayed via LEDs.

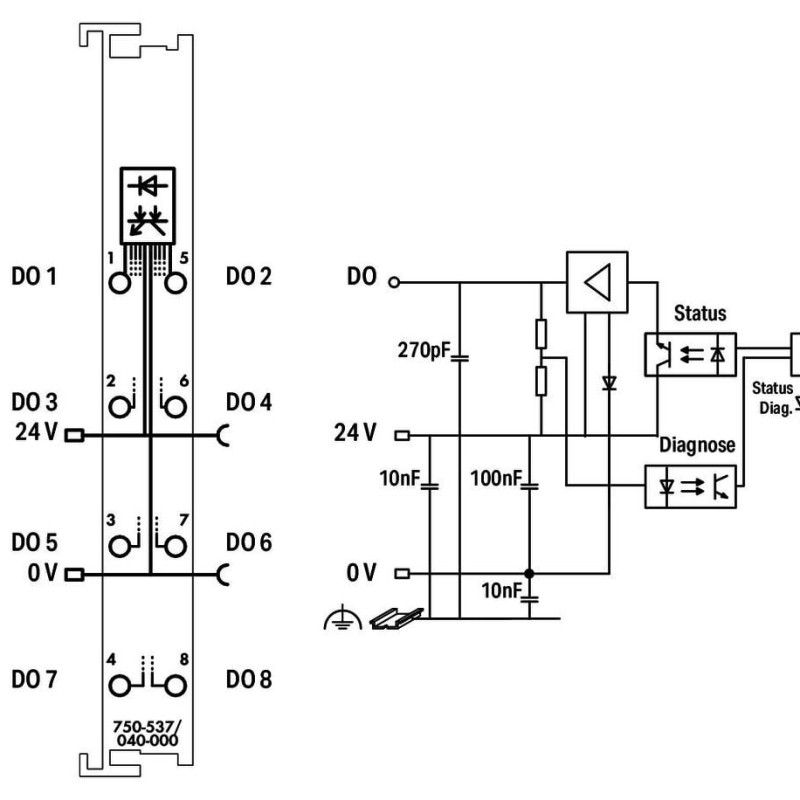

This module has eight output channels and eight actuators may be connected to it.
Field and system levels are electrically isolated.
The device is ideal for operation in extreme environments thanks to:
- An extended temperature range
- Greater immunity to impulse voltages and electromagnetic interference
- Higher vibration and shock resistance
Main attributes 750-537/040-000 8-channel digital output;24 VDC;0.5 A;dark gray
Connection data
Connection technology: inputs/outputs
8 x CAGE CLAMP® (outputs)
Connection type 1
Output
Fine-stranded conductor
0.25 … 2.5 mm² / 24 … 14 AWG
Solid conductor
0.25 … 2.5 mm² / 24 … 14 AWG
Strip length
8 … 9 mm
Environmental requirements
Ambient temperature (operation)
-40 … +70 °C
Ambient temperature (storage)
-40 … +85 °C
EMC emission of interference
per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
EMC immunity to interference
per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;
EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
Exposure to pollutants
per IEC 60068-2-42 and IEC 60068-2-43
Mounting position
Horizontal left, horizontal up, vertical top and vertical bottom
Operating altitude
without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
Permissible H₂S contaminant concentration
10 ppm
Permissible SO₂ contaminant concentration
25 ppm
Pollution degree
2 per IEC 61131-2
Protection type
IP20
Relative humidity (with condensation)
Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
Relative humidity (without condensation)
95 %
Shock resistance
per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
Vibration resistance
per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
Material data
Color
dark gray
Conformity marking
CE
Fire load
0.958 MJ
Housing material
Polycarbonate; polyamide 6.6
Weight
50.2 g
Mechanical data
Mounting type
DIN-35 rail
Physical data
Depth
67.8 mm
Depth from upper-edge of DIN-rail
60.6 mm
Height
100 mm
Width
12 mm
Technical data

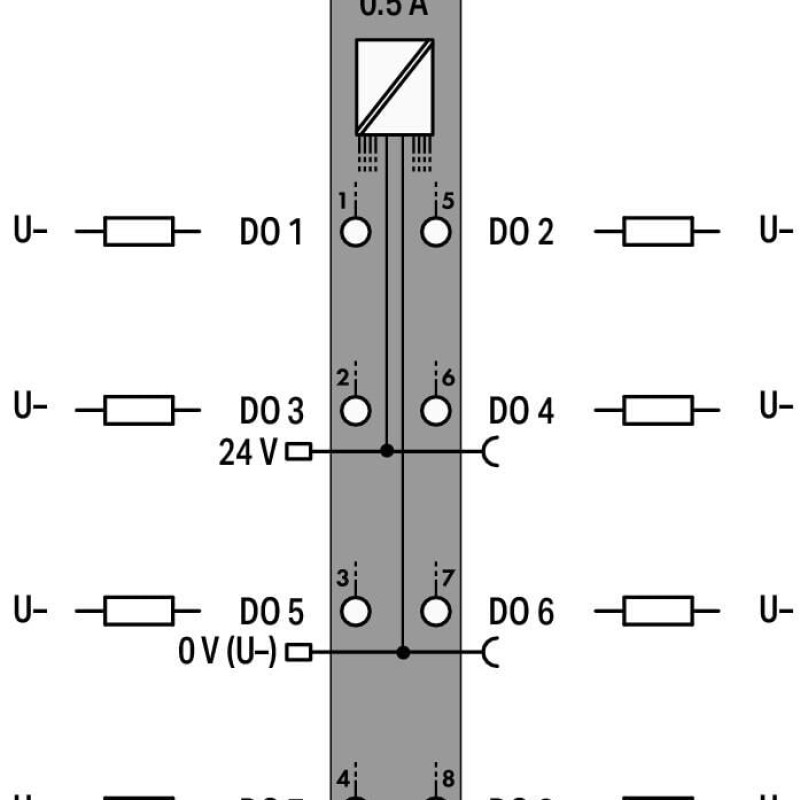

Actuator connection
8 x (1-wire)
Current carrying capacity (power jumper contacts)
10 A
Current consumption (5 V system supply)
50 mA
Current consumption, field supply (module with no external load)
16 mA
Derating
Derating (supply voltage):
Ambient temperatures under laboratory conditions: (−25 … +30 %);
for −40 … +55 °C: 24 V (−25 … +20 %);
for +55 … +70 °C: 24 V (−25 … +10 %);
Lower limit in all temperature ranges: −27.5 % (including 15 % resi
Ambient temperatures under laboratory conditions: (−25 … +30 %);
for −40 … +55 °C: 24 V (−25 … +20 %);
for +55 … +70 °C: 24 V (−25 … +10 %);
Lower limit in all temperature ranges: −27.5 % (including 15 % resi
Diagnostics
Open circuit, short circuit, overload
Dielectric strength
510 VAC / 775 VDC; per EN 60870-2-1
Indicators
LED (A-H) green/red: Status/diagnostics DO 1 … DO 8
Input data width (internal) max.
8 Bit
Interference-free with safety function
Yes
Load type
Resistive, inductive, lamp load
Number of digital outputs
8
Number of incoming power jumper contacts
2
Number of outgoing power jumper contacts
2
Open-circuit detection
0.1 mA
Output characteristic
high-side switching
Output current
short-circuit-protected
Output current per channel
0.5 A
Output data width (internal) max.
8 Bit
Rated surge voltage
1 kV
Short-circuit limitation (typ.) PWM
12 A
Signal type
Digital
Signal type (voltage)
24 VDC
Supply voltage (field)
24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact); Derating must be observed!
Supply voltage (system)
5 VDC; via data contacts
Switching frequency (max.)
1 kHz
Total number of channels (module)
8
