Description 750-1416/040-000 8-channel digital input;24 VDC;0.2 ms;dark gray

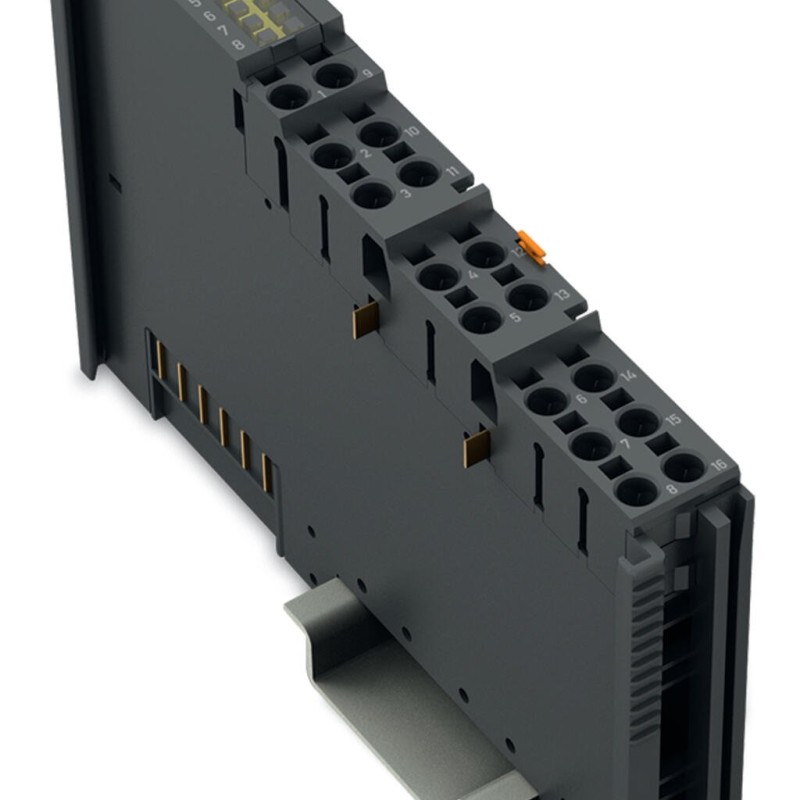

This digital input module is a 2-wire device featuring eight channels in a width of just 12 mm (0.47 inch).
It receives binary control signals from digital field devices (e.g., sensors, encoders, switches or proximity sensors).
The module features Push-in CAGE CLAMP® connections enabling solid conductors to be connected by simply pushing them in.

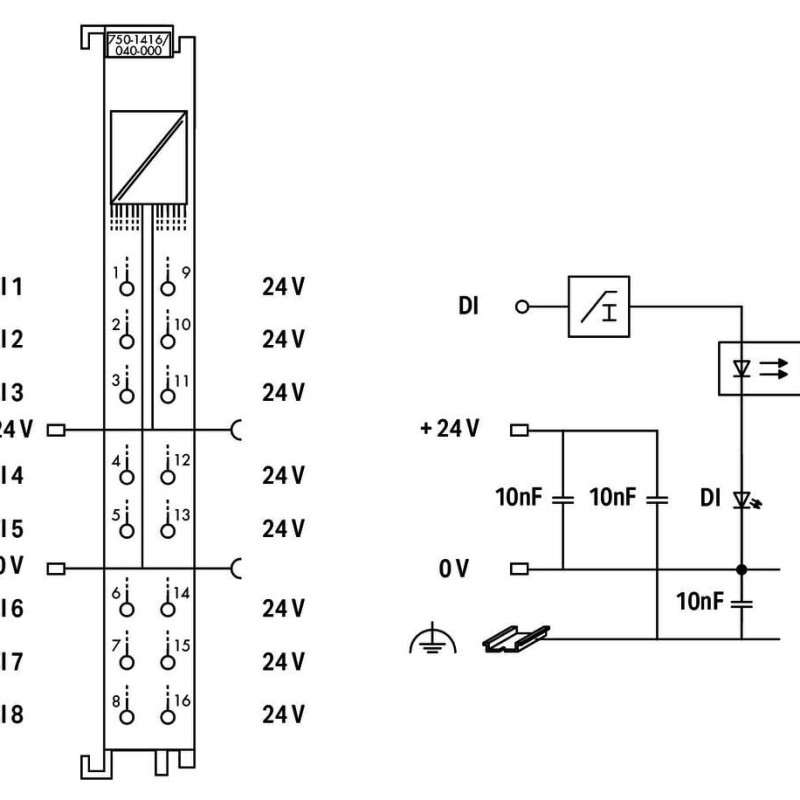

Each input channel has a noise-rejection RC filter with 0.2 ms time constant.

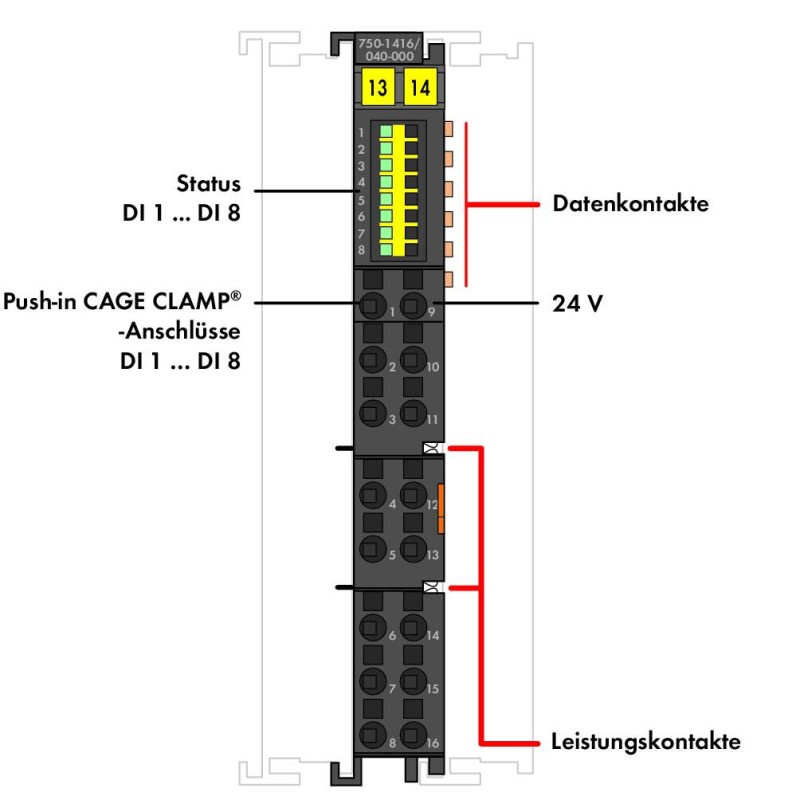

A green LED indicates the signal state of each channel.
Field and system levels are electrically isolated.
An operating tool with a 2.5 mm blade (210-719) is required to open the Push-in CAGE CLAMP® connections.
The device is ideal for operation in extreme environments thanks to:
- An extended temperature range
- Greater immunity to impulse voltages and electromagnetic interference
- Higher vibration and shock resistance
Main attributes 750-1416/040-000 8-channel digital input;24 VDC;0.2 ms;dark gray
Connection data
Connection technology: inputs/outputs
16 x Push-in CAGE CLAMP® (inputs)
Connection type 1
Input
Fine-stranded conductor
0.25 … 1.5 mm² / 24 … 16 AWG
Solid conductor
0.25 … 1.5 mm² / 24 … 16 AWG
Strip length
8 … 9 mm
Environmental requirements
Ambient temperature (operation)
-40 … +70 °C
Ambient temperature (storage)
-40 … +85 °C
EMC emission of interference
per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
EMC immunity to interference
per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;
EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
Exposure to pollutants
per IEC 60068-2-42 and IEC 60068-2-43
Mounting position
Horizontal left, horizontal up, vertical top and vertical bottom
Operating altitude
without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
Permissible H₂S contaminant concentration
10 ppm
Permissible SO₂ contaminant concentration
25 ppm
Pollution degree
2 per IEC 61131-2
Protection type
IP20
Relative humidity (with condensation)
Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
Relative humidity (without condensation)
95 %
Shock resistance
per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
Vibration resistance
per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
Material data
Color
dark gray
Conformity marking
CE
Fire load
0.835 MJ
Housing material
Polycarbonate; polyamide 6.6
Weight
47 g
Mechanical data
Mounting type
DIN-35 rail
Physical data
Depth
69 mm
Depth from upper-edge of DIN-rail
61.8 mm
Height
100 mm
Width
12 mm
Technical data
Current carrying capacity (power jumper contacts)
10 A
Current consumption (5 V system supply)
6 mA
Current consumption, field supply (module with no external load)
2 mA
Derating
Derating (supply voltage):
Ambient temperatures under laboratory conditions: (−25 … +30 %);
for −40 … +55 °C: 24 V (−25 … +20 %);
for +55 … +70 °C: 24 V (−25 … +10 %);
Lower limit in all temperature ranges: −27.5 % (including 15 % resi
Ambient temperatures under laboratory conditions: (−25 … +30 %);
for −40 … +55 °C: 24 V (−25 … +20 %);
for +55 … +70 °C: 24 V (−25 … +10 %);
Lower limit in all temperature ranges: −27.5 % (including 15 % resi
Dielectric strength
510 VAC / 775 VDC; per EN 60870-2-1
Indicators
LED (1-8) green: Status DI 1 … DI 8
Input characteristic
Type 3
Input current per channel for signal (0) type.
1.6 mA
Input current per channel for signal (1) max.
4.6 mA
Input current per channel for signal (1) min.
4.3 mA
Input current per channel for signal (1) typ.
4.5 mA
Input data width (internal) max.
8 Bit
Input filter (digital)
0.2 ms
Number of digital inputs
8
Number of incoming power jumper contacts
2
Number of outgoing power jumper contacts
2
Rated surge voltage
1 kV

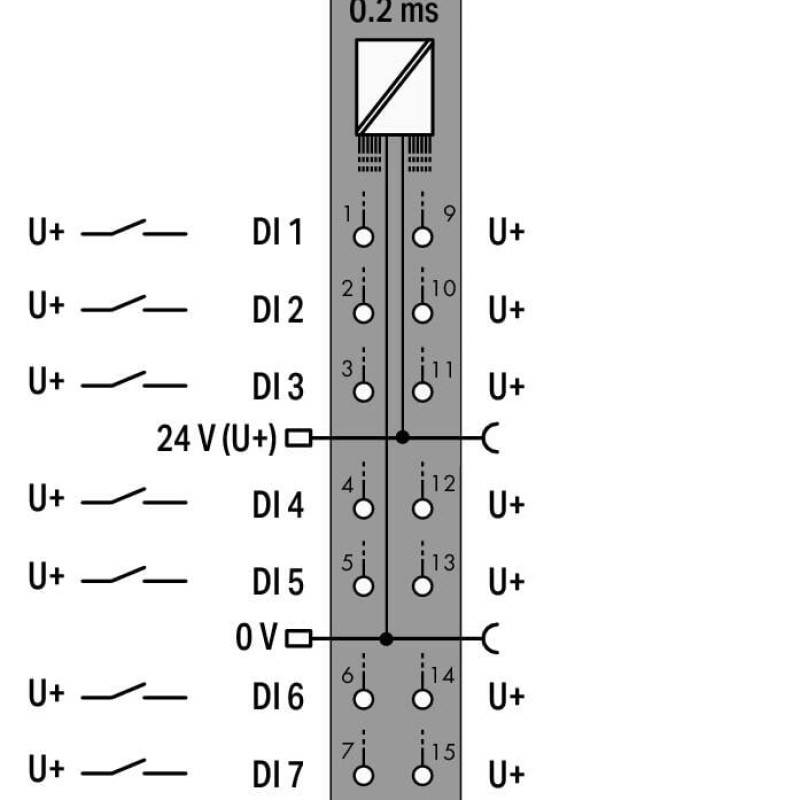

Sensor connection
8 x (2-wire)
Signal type
Voltage
Signal type (voltage)
24 VDC
Supply voltage (field)
24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact); Derating must be observed!
Supply voltage (system)
5 VDC; via data contacts
Total number of channels (module)
8
Voltage range for signal (0)
−3 … +5 VDC
Voltage range for signal (1)
11 … 30 VDC
