Article: 709-581
Brand: Wago
674.90 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

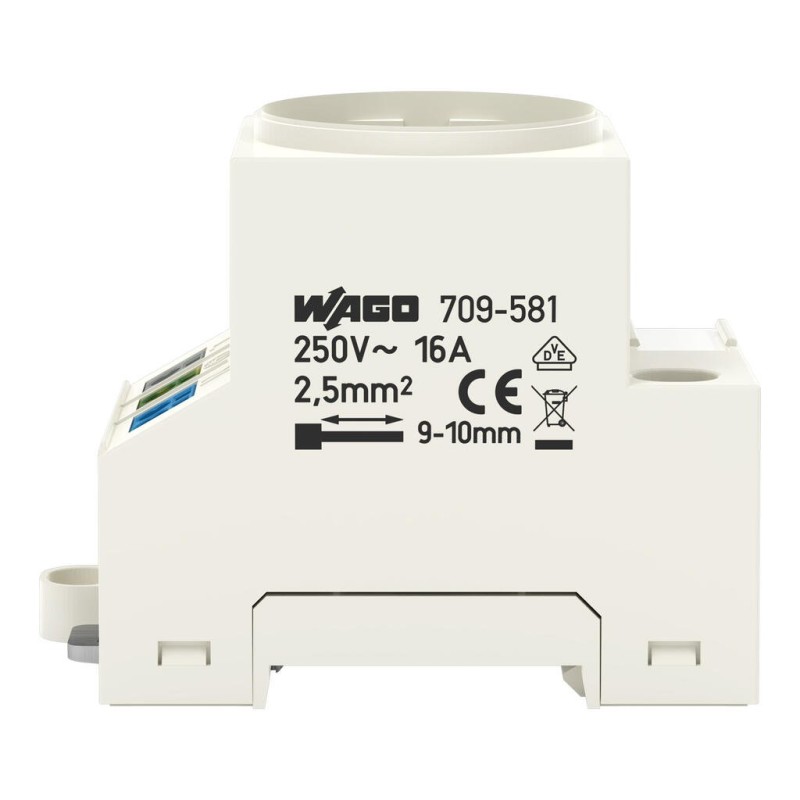

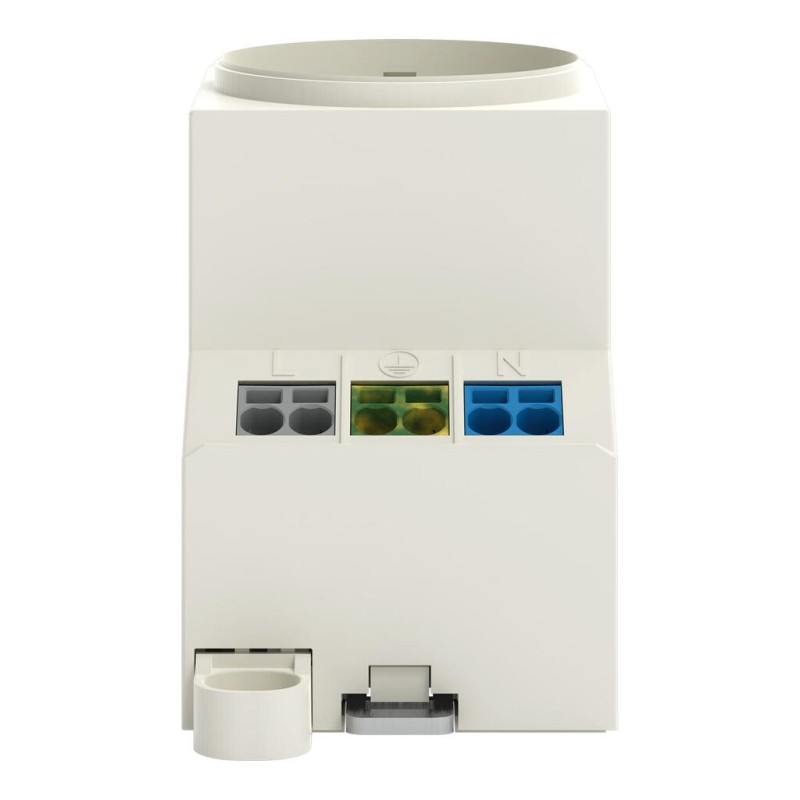

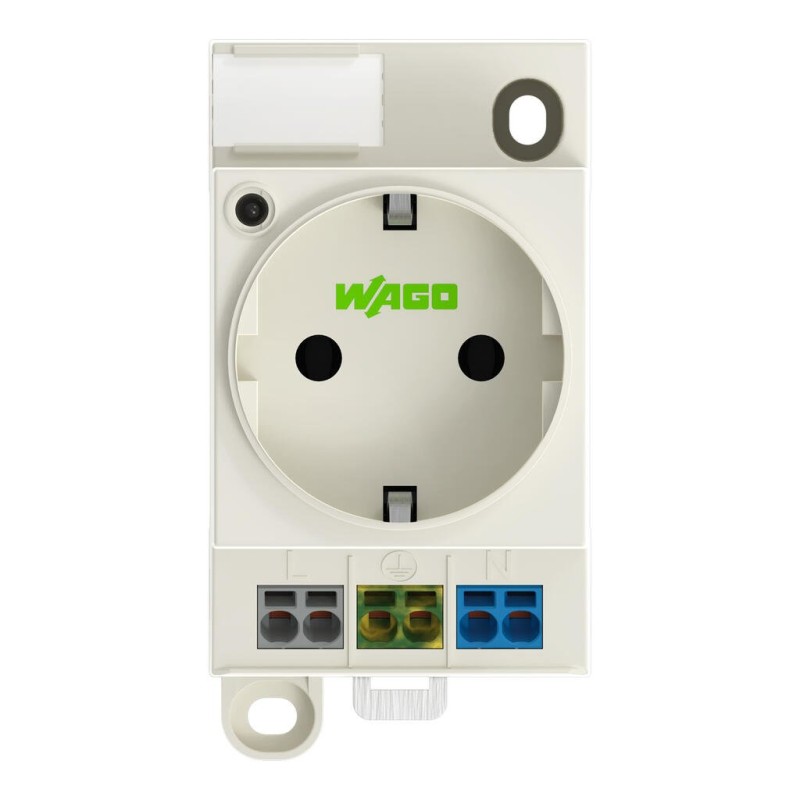

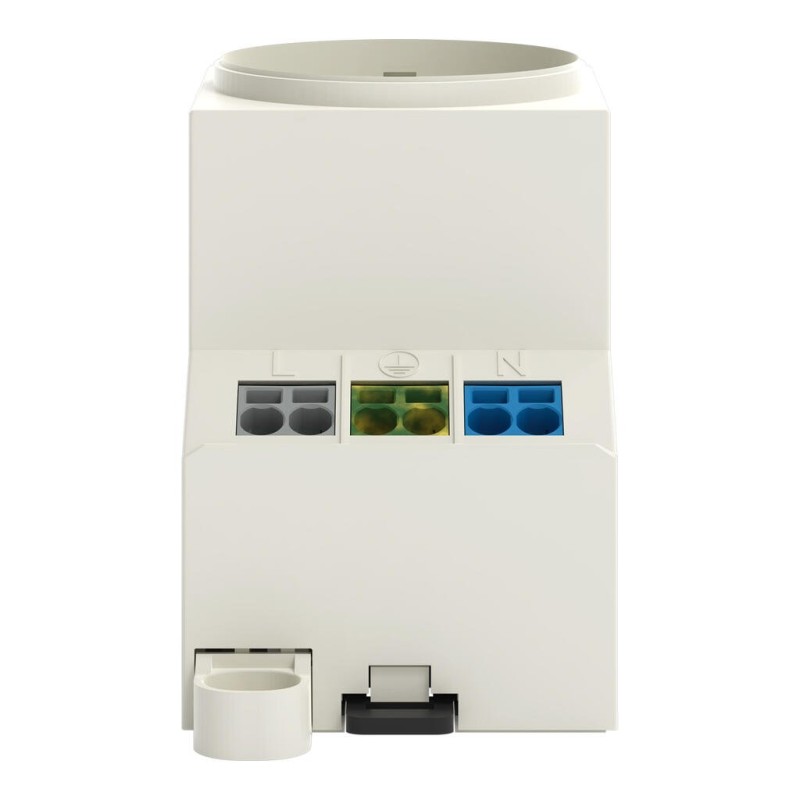

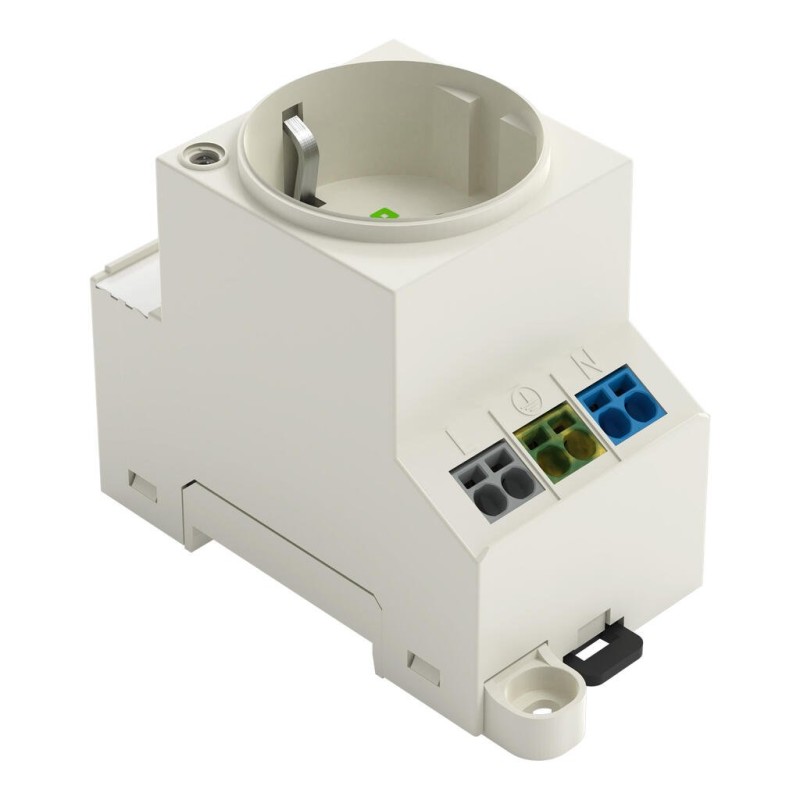

Description 709-581 Switchgear cabinet outlet;for DIN-rail and screw mounting;for plug, type F, CEE 7/4 (Schuko);light gray
Main attributes 709-581 Switchgear cabinet outlet;for DIN-rail and screw mounting;for plug, type F, CEE 7/4 (Schuko);light gray
Connection data
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.2 … 2.5 mm² / 24 … 14 AWG
Fine-stranded conductor; with insulated ferrule
2.5 mm² / 14 AWG
Solid conductor
0.2 … 2.5 mm² / 24 … 14 AWG
Stranded conductor
0.2 … 2.5 mm² / 24 … 14 AWG
Strip length
9 … 10 mm
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
light gray
Contact material
Copper alloy
Contact plating
Sn
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
81.6 g

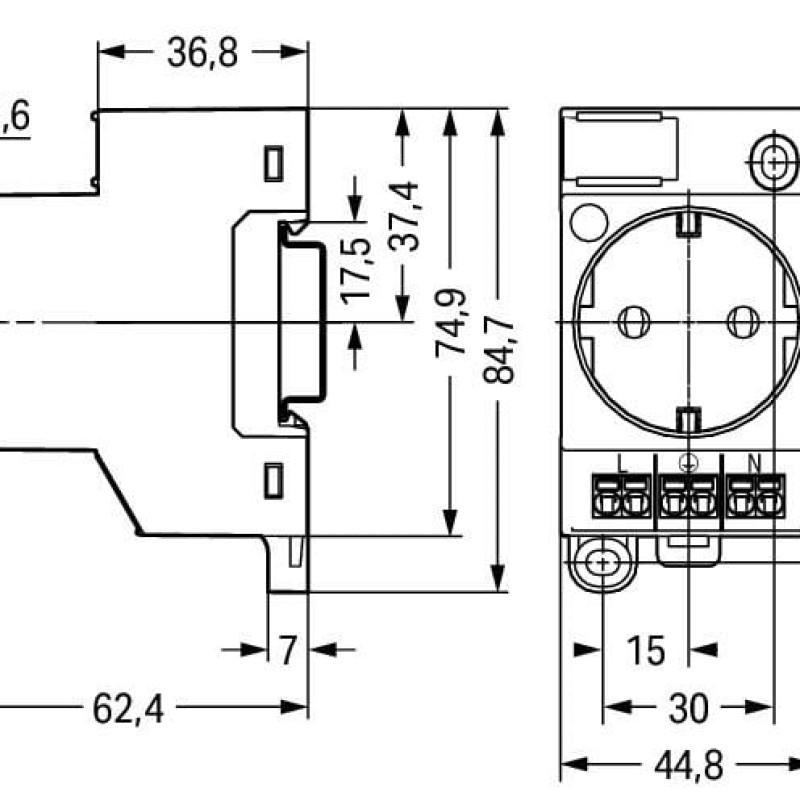

Physical data
Depth
84.7 mm
Height
65 mm
Height from the surface
65 mm
Height from upper-edge of DIN-rail
59.8 mm
Width
45 mm
Technical data
Number of spacings
3 -fach
Type of fastening
DIN-35 rail
