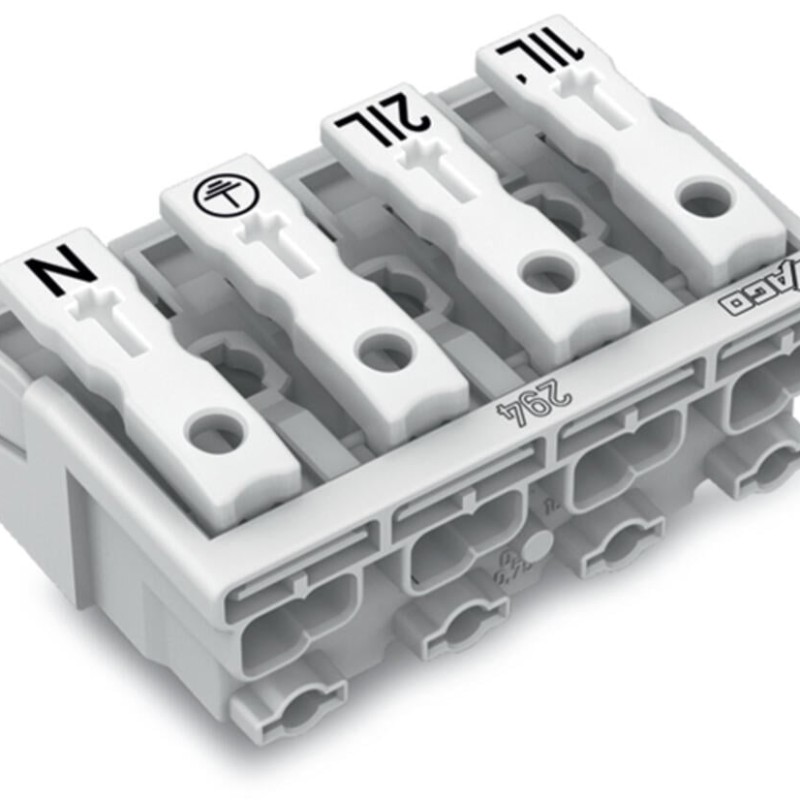

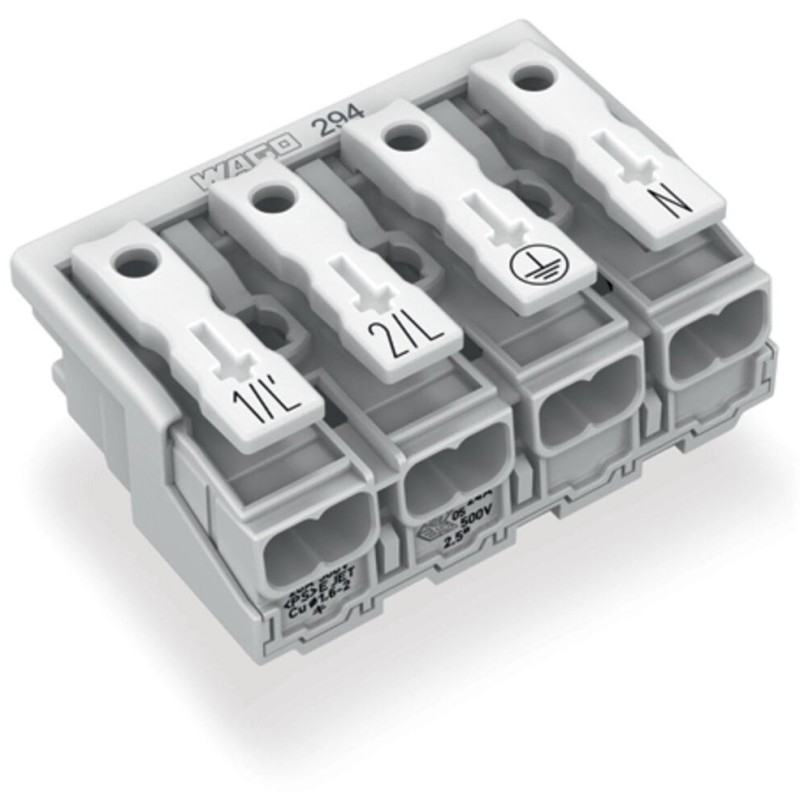

Description 294-5024 Lighting connector;push-button, external;without ground contact;white
- External connection of solid, stranded and fine-stranded conductors
- Universal conductor termination (AWG, metric)
- Third contact located at the bottom of internal connection end
- Strain relief plate can be retrofitted
Main attributes 294-5024 Lighting connector;push-button, external;without ground contact;white
Connection 1
Actuation type
Push-button
Connectable conductor materials
Copper
Connection technology
Push-in CAGE CLAMP®
Connection type 1
External 1
Fine-stranded conductor
0.5 … 2.5 mm² / 18 … 14 AWG
Fine-stranded conductor; with ferrule; push-in termination
0.5 mm² / 18 AWG
Fine-stranded conductor; with insulated ferrule
0.5 … 1.5 mm² / 18 … 16 AWG
Fine-stranded conductor; with uninsulated ferrule
0.5 … 1.5 mm² / 18 … 16 AWG
Number of connection points
2
Pole number
4
Solid conductor
0.5 … 2.5 mm² / 18 … 12 AWG
Solid conductor; push-in termination
0.5 … 2.5 mm² / 18 … 12 AWG
Stranded conductor
0.5 … 2.5 mm² / 18 … 14 AWG
Strip length
8 … 9 mm
Wiring direction
Side-entry wiring
Connection 2
Actuation type 2
Push-in
Connection technology 2
PUSH WIRE®
Connection type 2
Internal 2
Fine-stranded conductor; with insulated ferrule 2
0.5 … 1 mm² / 18 … 16 AWG
Fine-stranded conductor; with uninsulated ferrule 2
0.5 … 1.5 mm² / 18 … 14 AWG
Number of connection points 2
1
Solid conductor 2
0.5 … 2.5 mm² / 18 … 14 AWG
Strip length 2
8 … 9 mm
Connection 3
Actuation type 3
Push-in
Connection technology 3
PUSH WIRE®
Connection type 3
Internal 3
Fine-stranded conductor; with insulated ferrule 3
0.5 … 0.75 mm² / 18 AWG
Fine-stranded conductor; with uninsulated ferrule 3
0.5 … 1 mm² / 18 AWG
Number of connection points 3
1
Solid conductor 3
0.5 … 1.5 mm² / 18 … 16 AWG
Strip length 3
8 … 9 mm
Connection 4
Actuation type 4
Push-in
Connection technology 4
PUSH WIRE®
Connection type 4
Internal 4
Number of connection points 4
1
Solid conductor 4
0.5 … 0.75 mm² / 18 AWG
Strip length 4
8 … 9 mm
Connection data
Clamping units
20
Number of connection types
4
PE function
without PE contact
Total number of potentials
4
Environmental requirements
T-shaped marking
T85
Temperature stability
120 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
white
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.242 MJ
Flammability class per UL94
V0
Halogen-free
Yes
Insulation material (main housing)
Polycarbonate (PC)
Material group
IIIa
Weight
12.2 g
Mechanical data
Marking
1/L´-2/L-⏚-N
Mounting type
Snap-in foot

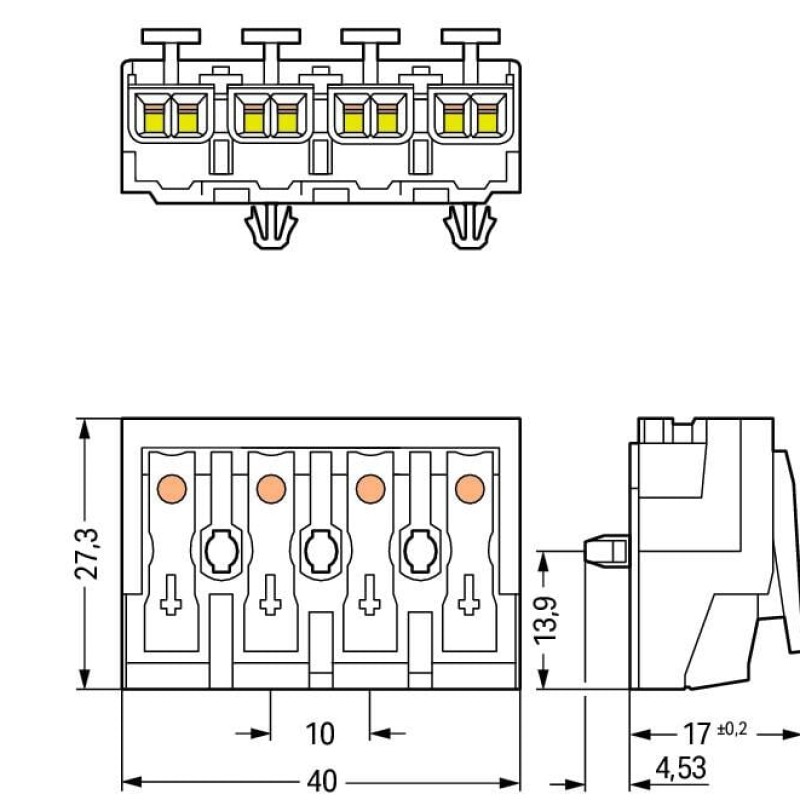

Physical data
Depth
27.3 mm
Height
21.53 mm
Height from the surface
17 mm
Pin spacing
10 mm
Width
40 mm
