280-502/281-613 Component terminal block;double-deck;with varistor;gray

280-502/281-613 Component terminal block;double-deck;with varistor;gray
280-502/281-613 Component terminal block;double-deck;with varistor;gray
280-502/281-613 Component terminal block;double-deck;with varistor;gray
Pre-Order
Article: 280-502/281-613
Brand: Wago
516.88 грн.
Found it cheaper?
Payment
Delivery
Delivery by Nova Poshta
Delivery by Nova Poshta
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
Pickup (Kyiv)
For free

Description 280-502/281-613 Component terminal block;double-deck;with varistor;gray

Short description:

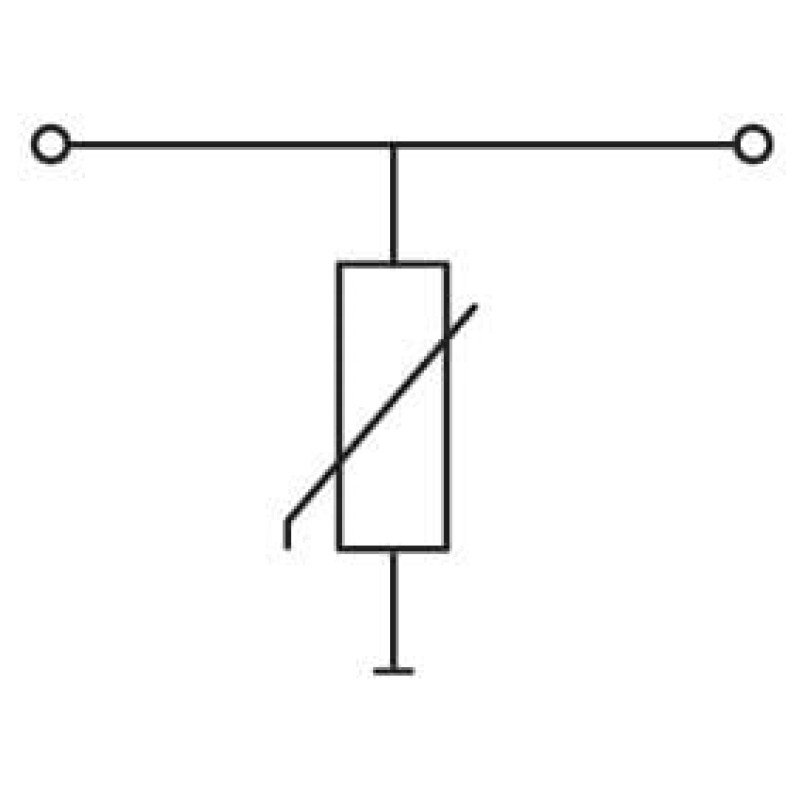

WAGO's component terminal block with single-stage surge suppression device and direct connection to DIN-35 rail is equipped with a varistor.
Features:
  • Protect your system against overvoltage
  • Slim, space-saving design
  • Control operational costs by preventing expensive, unplanned downtime
  • High operational reliability and system uptime

Main attributes 280-502/281-613 Component terminal block;double-deck;with varistor;gray

Connection data
Connection technology CAGE CLAMP®
Connections (number) 2
Fine-stranded conductor 0.08 … 2.5 mm² / 28 … 14 AWG
Solid conductor 0.08 … 2.5 mm² / 28 … 14 AWG
Strip length 8 … 9 mm
Environmental requirements
Processing temperature -35 … +85 °C
Material data
Color gray
Fire load 0.246 MJ
Flammability class per UL94 V0
Insulation material (main housing) Polyamide (PA66)
Material group I
Weight 8.4 g
Mechanical data
Design with direct connection to DIN-rail
Mounting type DIN-35 rail
Physical data
Depth from upper-edge of DIN-rail 58.5 mm
Height 64 mm
Width 5 mm
