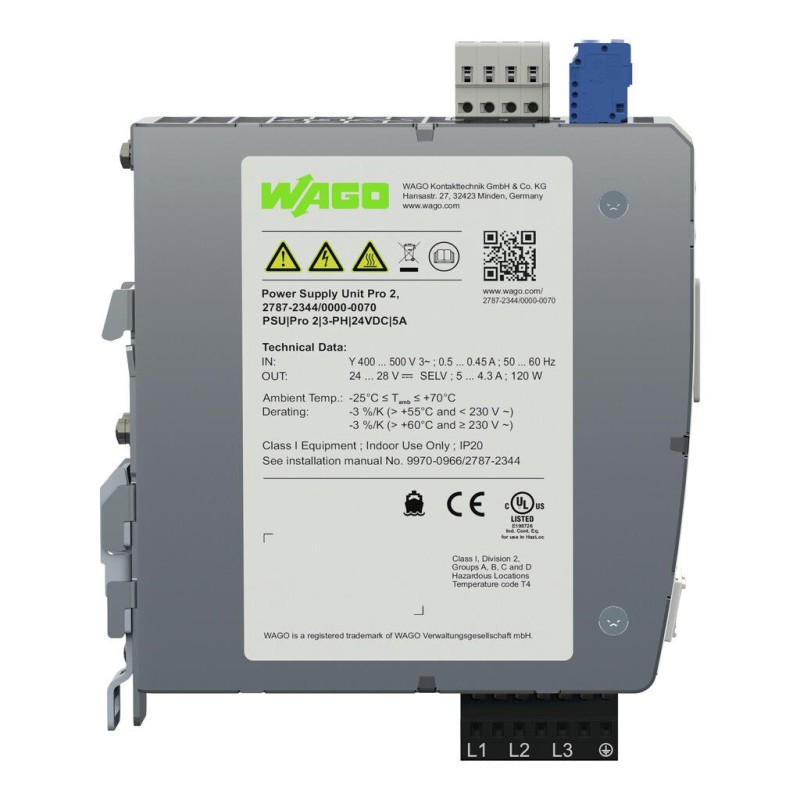

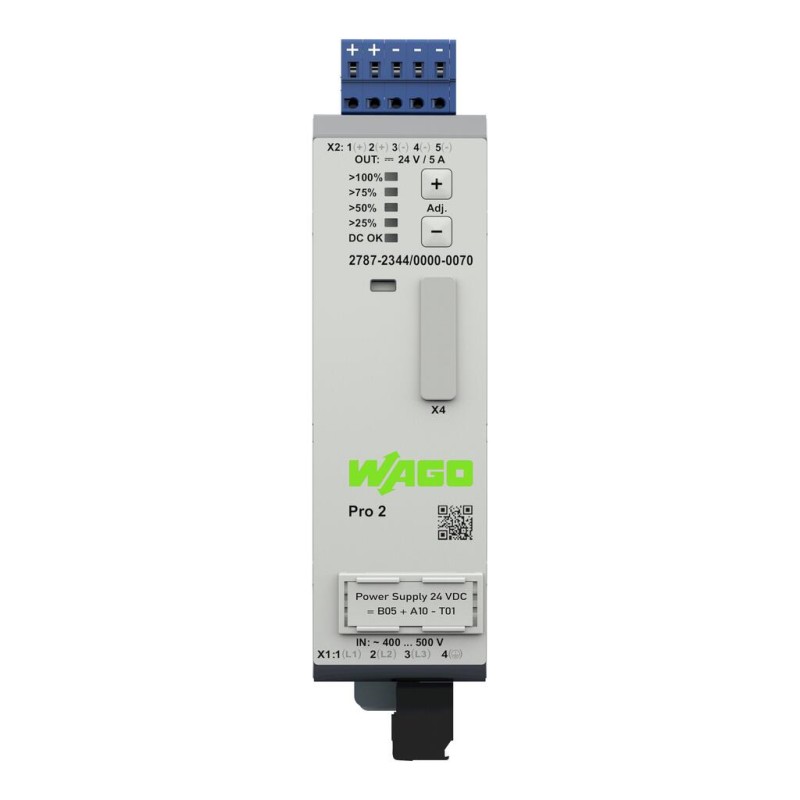

2787-2344/000-070 Power supply;Pro 2;3-phase

Name: 2787-2344/000-070 Power supply;Pro 2;3-phase
Brand: Wago
Price: 16698.00 UAH
Availability: OutOfStock

Pre-Order

Article: 2787-2344/000-070

Brand: Wago

16698.00 грн.

Found it cheaper?

Short description

Features:Power supply with TopBoost, PowerBoost and configurable overload behaviorConfigurable digital signal input and output, optical status indication, function keysCommunication interface for configuration and monito...

Description 2787-2344/000-070 Power supply;Pro 2;3-phase

Features:

Power supply with TopBoost, PowerBoost and configurable overload behavior
Configurable digital signal input and output, optical status indication, function keys
Communication interface for configuration and monitoring
Optional connection to IO-Link, EtherNet/IP^TM, Modbus TCP or Modbus RTU
Suitable for both parallel and series operation
Natural convection cooling when horizontally mounted
Pluggable connection technology
Electrically isolated output voltage (SELV/PELV) per EN 61010-2-201/UL 61010-2-201
Coated PCBs, resistant to flowing mixed gas per ISA S71.04:1985, G3 Group A
Marker slot for WAGO marking cards (WMB) and WAGO marking strips

Main attributes 2787-2344/000-070 Power supply;Pro 2;3-phase

Circuit protection

Backup fusing (recommended) 3 x 16 A (for USA/Canada: 3 x 15 A)

Backup fusing (required) An external DC fuse is required for the DC input voltage.

Connection data

Connection technology CAGE CLAMP^®

Connection technology 2 Push-in CAGE CLAMP^®

Connection type 1 Input/signaling

Connection type 2 Output

Fine-stranded conductor 0.08 … 2.5 mm² / 28 … 12 AWG

Fine-stranded conductor 2 0.5 … 10 mm² / 20 … 8 AWG

Fine-stranded conductor; with insulated ferrule 0.25 … 1.5 mm² / 20 … 16 AWG

Fine-stranded conductor; with insulated ferrule 2 0.5 … 6 mm²

Fine-stranded conductor; with uninsulated ferrule 0.25 … 2.5 mm² / 20 … 14 AWG

Fine-stranded conductor; with uninsulated ferrule 2 0.5 … 6 mm²

Solid conductor 0.08 … 2.5 mm² / 28 … 12 AWG

Solid conductor 2 0.5 … 10 mm² / 20 … 8 AWG

Strip length 8 … 9 mm

Strip length 2 13 … 15 mm

WAGO connector WAGO 721 Series

WAGO connector 2 WAGO 831 Series

Efficiency/power losses

Efficiency (typ.) 92.5 % (230 VAC; 5 A; 25 °C)

Environmental requirements

Ambient temperature (operation) -25 … +70 °C (Device starts at −40 °C (type-tested))

Ambient temperature (storage) -40 … +85 °C

Climatic category 3K3 (per EN 60721)

Derating See instruction leaflet

Operating altitude (max.) 5000 m

Relative humidity 5 … 96 % (no condensation permissible)

Input

Input current Iₗ ≤ 3 x 0.4 A (400 VAC; 24 VDC / 5 A)

Input voltage range 3 x AC 340 … 550 V

Inrush current ≤ 15 A (after 1 ms)

Mains failure hold-up time ≥ 20 ms (3 x 400 VAC)

Nominal input voltage Uᵢ ₙₒₘ 3 x AC 400 … 500 V (connection without neutral conductor)

Nominal mains frequency range 50 … 60 Hz

Phases 3

Power factor correction (PFC) Active

Material data

Weight 650 g

Mechanical data

Mounting type DIN-35 rail

Output

Current limitation 1.1 x I_{o nom} (typ.)

Default setting DC 24 V

Deviation ≤ 1 %

Nominal output current Iₒ ₙₒₘ 5 A (24 VDC)

Nominal output power 120 W

Nominal output voltage Uₒ ₙₒₘ DC 24 V (SELV)

Output voltage range DC 24 … 28 V (adjustable)

Overload behavior TopBoost/PowerBoost/Time-limited constant current mode (other overload behaviors can be set)

PowerBoost DC 7.5 A (5 s)

Residual ripple ≤ 70 mV (peak-to-peak)

TopBoost Up to 600 %

Physical data

Depth from upper-edge of DIN-rail 130 mm

Height 130 mm

Note (dimensions) Height without connector

Width 40 mm

Safety and protection

Isolation voltage (pri.-PE, AC) 2,200 V

Isolation voltage (pri.-sec., AC) 3,510 V

Isolation voltage (sec.-PE) DC 0.5 kV

MTBF > 1,400,000 h (per IEC 61709)

Open-circuit-proof Yes

Overvoltage category III (≤ 2000 m a.s.l.); II (> 2000 m a.s.l.)

Overvoltage protection; secondary ≤ 35 VDC (in the event of a fault)

Parallel operation Yes

Pollution degree 2

Protection class I

Protection type IP20; per EN 60529

Protective coating Coated PCBs

Series operation Yes

Short-circuit-protected Yes

Transient suppression (primary) Yes

Signaling and communication

Communications USB (750-923 Communication Cable)

Signaling Digital signal input and output (DI/DO)

Standards and specifications

Conformity marking CE

Standards/specifications UL 61010-2-201
