Article: 2773-2401/995-020
Brand: Wago
0.00 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

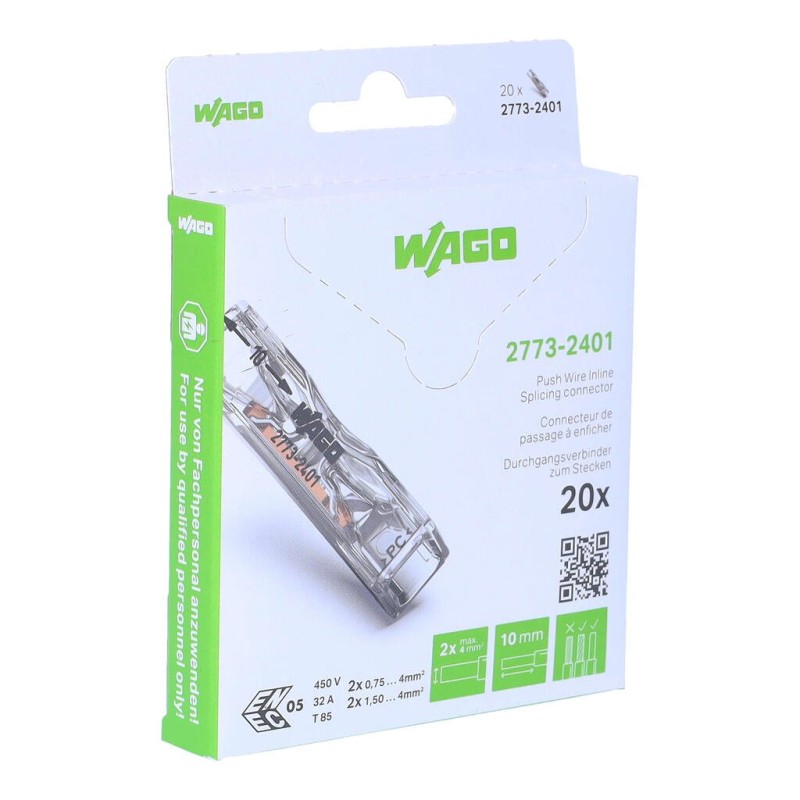

Description 2773-2401/995-020 PUSH WIRE® Inline Splicing Connector;for solid and stranded conductors;max. 4 mm²;transparent
Push wire® inline splicing connector (item number 2773-2401/995-020) simplifies electrical installations. This series of PUSH WIRE® connectors ensures safe and quick connections in both surface-mounted and flush-mounted junction boxes in any building, regardless of installation complexity. Ensure that the strip lengths are between 10 and 11 mm when connecting conductors to push wire® inline splicing connector. Our splicing connector is rated for 450 V and is designed to handle a rated current of up to 32 A. As such, it is suitable for high-load applications. Featuring conductor terminals along with PUSH WIRE®, this product outperforms the competition. Our PUSH WIRE® connection uses the stiffness of the conductor to overcome the clamping spring's contact force, allowing faster and easier conductor clamping. Dimensions: (6.15 x 6.8 x 29.5) mm (width x height x depth). Depending on the conductor type, push wire® inline splicing connector is suitable for conductor cross sections ranging from 0.75 mm² to 4 mm².
Tin is used for coating the contact surfaces.
Main attributes 2773-2401/995-020 PUSH WIRE® Inline Splicing Connector;for solid and stranded conductors;max. 4 mm²;transparent
Connection 1
Actuation type
Push-in
Conductor diameter
1.6 … 2 mm / 18 … 12 AWG
Connection technology
PUSH WIRE®
Fine-stranded conductor; with insulated ferrule
0.75 … 1.5 mm² / 18 … 16 AWG
Fine-stranded conductor; with uninsulated ferrule
1 … 1.5 mm² / 16 AWG
Solid conductor
0.75 … 4 mm² / 18 … 12 AWG
Stranded conductor
1.5 … 4 mm²
Strip length
10 … 11 mm
Wiring direction
Side-entry wiring
Connection data
Clamping units
2
Total number of potentials
1
Environmental requirements
Ambient temperature (operation)
+85 °C
Continuous operating temperature
105 °C
Processing temperature
-35 … +60 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
transparent
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Cover color
transparent
Fire load
0.038 MJ
Flammability class per UL94
V2
Insulation material (main housing)
Polycarbonate (PC)
Material group
IIIa
Weight
1.5 g
Weight of insulation material
0.8 g
Physical data
Depth
29.5 mm
Height
6.8 mm
Width
6.15 mm
