2762-2008/211-1000 CODESYS License;Control Standard;L

Description 2762-2008/211-1000 CODESYS License;Control Standard;L

This application-based license is specifically designed for use with CODESYS Virtual Control for Linux SL. It includes 2048 I/O channels and supports an application size of up to 6 MB. Suitable hardware platforms include WAGO Edge Computers (Order No.: 752-9400; 752-9401; 752-9800; 752-9412; 752-9813).

These licenses are hardware-independent and can be used across multiple products, offering maximum flexibility when selecting devices. Another advantage is the scaling of licenses based on application metrics, meaning you only pay for the CODESYS features you actually use.

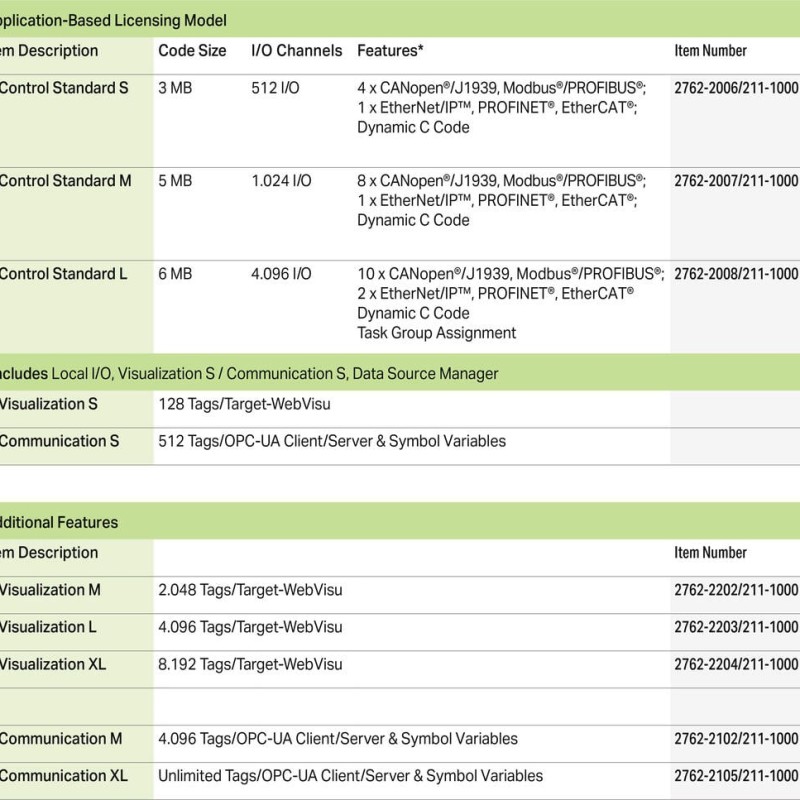

Overview of application metrics for determining the appropriate license:

Standard S

EtherCAT/Profinet/EthernetIP: 1 instance

CANopen/Profibus/Modbus/J1939: 4 instances

Number of input/output channels: 512

Code size: 3 MB

incl. visualization S

incl. Management Communication S (e.g., OPC UA)

Reloadable C code

Standard M

EtherCAT/Profinet/EthernetIP: 1 instance

CANopen/Profibus/Modbus/J1939: 8 instances

Number of input/output channels: 1024

Code size: 5 MB

incl. visualization S

incl. Management Communication S (e.g., OPC UA)

Reloadable C code

Standard L

EtherCAT/Profinet/EthernetIP: 2 instances

CANopen/Profibus/Modbus/J1939: 10 instances

Number of input/output channels: 4096

Code size: 6 MB

incl. visualization S

incl. Management Communication S (e.g., OPC UA)

Reloadable C code

Core assignment of IEC task groups

Visualization S: License for target and web visualization with up to 128 tags

Management Communication S: OPC UA license for client and server with up to 512 tags

Licensing

Single Device License: The license can be used on the controller where the CODESYS runtime system is installed.

The license is activated in a software-based container (soft container) that is permanently bound to the controller.

Note: Without a license, the software will run in demo mode for two hours. After that, a manual restart is required.

Please note that the use of these application-based licenses requires CODESYS Development System V3.5.19.7 or higher and CODESYS Virtual Control SL Runtime Software Version 4.12.0.0 or higher.

Source: The required software can be obtained from the WAGO Download Center:

CODESYS: https://downloadcenter.wago.com/latest-of-productgroup/codesys

Runtime: https://downloadcenter.wago.com/software/latest/runtime-codesys-virtual-control-linux

Demo Mode

A controller without a license runs in demo mode for two hours. After this period, the runtime system will shut down and must be restarted manually. The functionality of demo mode is not restricted, but unlicensed functions have a shorter demo runtime (e.g., fieldbuses operate for 30 minutes).

License Check

When an application-based license is available on the controller, all criteria are checked against the limit stored in the license. If any criteria exceed the defined limit, the application download or boot application loading will be blocked. No transition to demo mode occurs.

This prevents the system from reverting to a time-limited demo mode during production.
