Article: 2206-8033
Brand: Wago
216.04 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

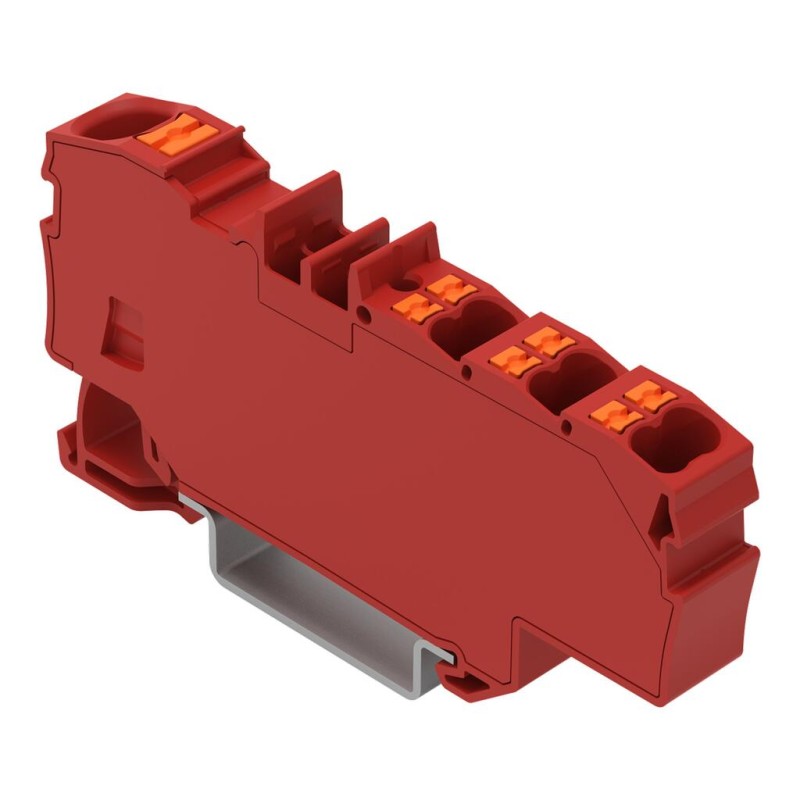

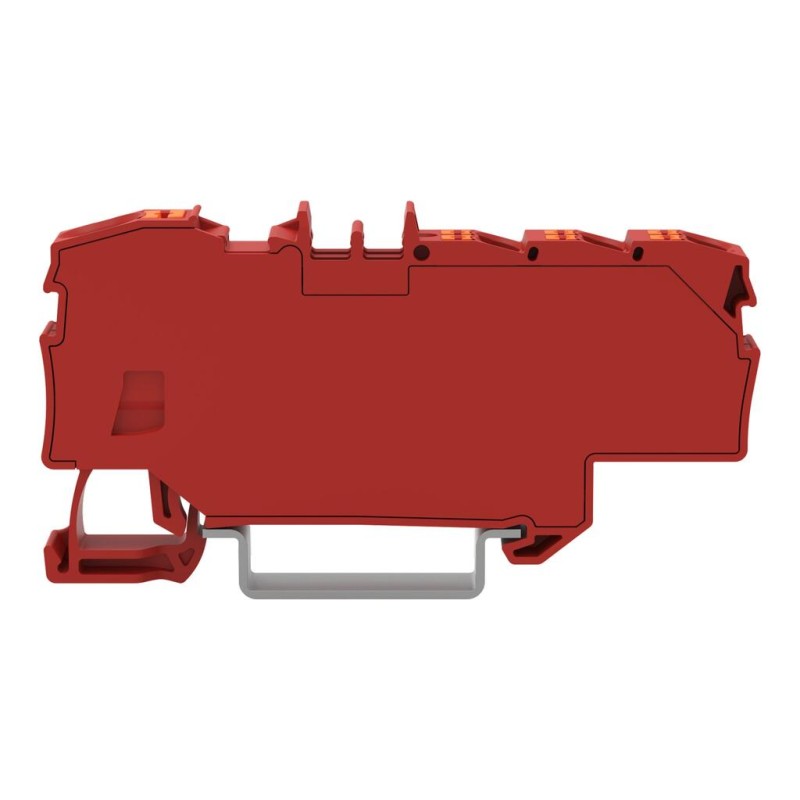

Description 2206-8033 Distribution terminal block;with push-button;1 x 6 mm² / 6 x 1.5 mm²;red
TOPJOB® S Distribution Terminal Block
- Potential distribution up to 57 A and 800 V
- Combine with all TOPJOB® S Rail-Mount Terminal Blocks and accessories
Main attributes 2206-8033 Distribution terminal block;with push-button;1 x 6 mm² / 6 x 1.5 mm²;red
Connection 1
Actuation type
Push-button
Connectable conductor materials
Copper
Connection technology
Push-in CAGE CLAMP®
Connection type 1
Input
Fine-stranded conductor
0.5 … 10 mm² / 20 … 8 AWG
Fine-stranded conductor; with ferrule; push-in termination
2.5 … 6 mm² / 16 … 10 AWG
Fine-stranded conductor; with insulated ferrule
0.5 … 6 mm² / 20 … 10 AWG
Nominal cross-section
6 mm²
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Number of connection points
1
Solid conductor
0.5 … 10 mm² / 20 … 8 AWG
Solid conductor; push-in termination
2.5 … 10 mm² / 14 … 8 AWG
Strip length
13 … 15 mm
Wiring direction
Front-entry wiring
Connection 2
Connection technology 2
Push-in CAGE CLAMP®
Connection type 2
Output
Fine-stranded conductor 2
0.25 … 2.5 mm² / 22 … 14 AWG
Fine-stranded conductor; with ferrule; crimp termination; 2
0.75 … 1.5 mm² / 18 … 16 AWG
Fine-stranded conductor; with insulated ferrule 2
0.25 … 1.5 mm² / 22 … 16 AWG
Nominal cross-section 2
1.5 mm²
Number of connection points 2
6
Solid conductor 2
0.25 … 2.5 mm² / 22 … 14 AWG
Solid conductor; push-in termination 2
0.75 … 2.5 mm² / 18 … 14 AWG
Strip length 2
9 … 11 mm
Connection data
Clamping units
7
Number of jumper slots
2
Number of levels
1
Total number of potentials
1
Environmental requirements
Continuous operating temperature
-60 … +105 °C
Processing temperature
-35 … +85 °C
Environmental Testing (Environmental Conditions)
Acceleration
5g (highest test level used for all axes)
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Frequency
f1 = 5 Hz to f2 = 150 Hz
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Monitoring for contact faults/interruptions
Passed
Number of shocks per axis
3 pos. und 3 neg.
Shock duration
30 ms
Shock form
Half sine
Shock test
Test passed according to Section 10 of the standard
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Spectrum/Installation location
Service life test, Category 1, Class A/B
Test directions
X, Y and Z axes
Test duration per axis
5 h
Test procedure (Railway applications – Roll
DIN EN 61373 (VDE 0115-0106):2011-04
Test specification Railway applications – Rolling stock – Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Vibration and shock stress for rolling stock equipment
Passed
Voltage drop measurement before and after each axis
Passed
Material data
Actuator color
orange
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
red
Contact plating
Tin
Fire load
0.366 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
16.3 g
Mechanical data
Marking level
Center/side marking
Mounting type
DIN-35 rail
Physical data
Depth from upper-edge of DIN-rail

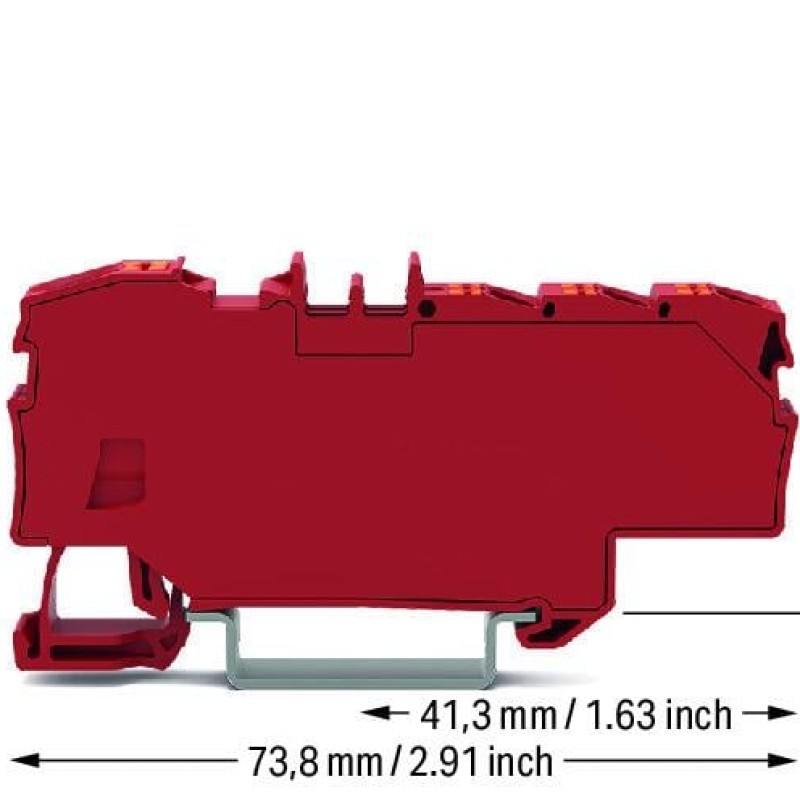

32.9 mm
Height
73.8 mm
Width
9 mm
