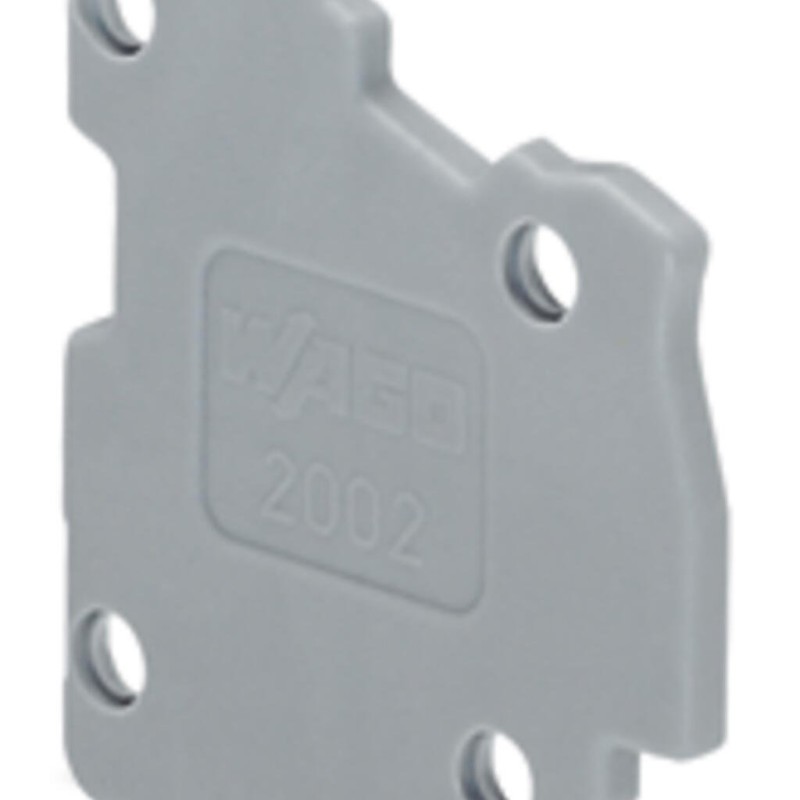

2002-541 End plate;for modular TOPJOB®S connector;1.5 mm thick;gray

Name: 2002-541 End plate;for modular TOPJOB®S connector;1.5 mm thick;gray
Brand: Wago
Price: 14.83 UAH
Availability: InStock

In stock

Article: 2002-541

Brand: Wago

14.83 грн.

Short description

...

Description 2002-541 End plate;for modular TOPJOB®S connector;1.5 mm thick;gray

Environmental Testing (Environmental Conditions)

Acceleration 5g (highest test level used for all axes)

Extended test scope: Monitoring for contact faults/interruptions Passed

Extended test scope: Voltage drop measurement before and after each axis Passed

Frequency f₁= 5 Hz to f₂= 150 Hz

Function test with noise-like vibration Test passed according to Section 8 of the standard

Monitoring for contact faults/interruptions Passed

Number of shocks per axis 3 pos. und 3 neg.

Shock duration 30 ms

Shock form Half sine

Shock test Test passed according to Section 10 of the standard

Simulated service life test through increased levels of noise-like vibration Test passed according to Section 9 of the standard

Spectrum/Installation location Service life test, Category 1, Class A/B

Test directions X, Y and Z axes

Test duration per axis 5 h

Test procedure (Railway applications – Roll DIN EN 61373 (VDE 0115-0106):2011-04

Test specification Railway applications – Rolling stock – Electronic equipment DIN EN 50155 (VDE 0115-200):2022-06

Vibration and shock stress for rolling stock equipment Passed

Voltage drop measurement before and after each axis Passed

Material data

Color gray

Fire load 0.014 MJ

Flammability class per UL94 V0

Insulation material (main housing) Polyamide (PA66)

Material group I

Weight 0.5 g

Physical data

Width 1.5 mm
