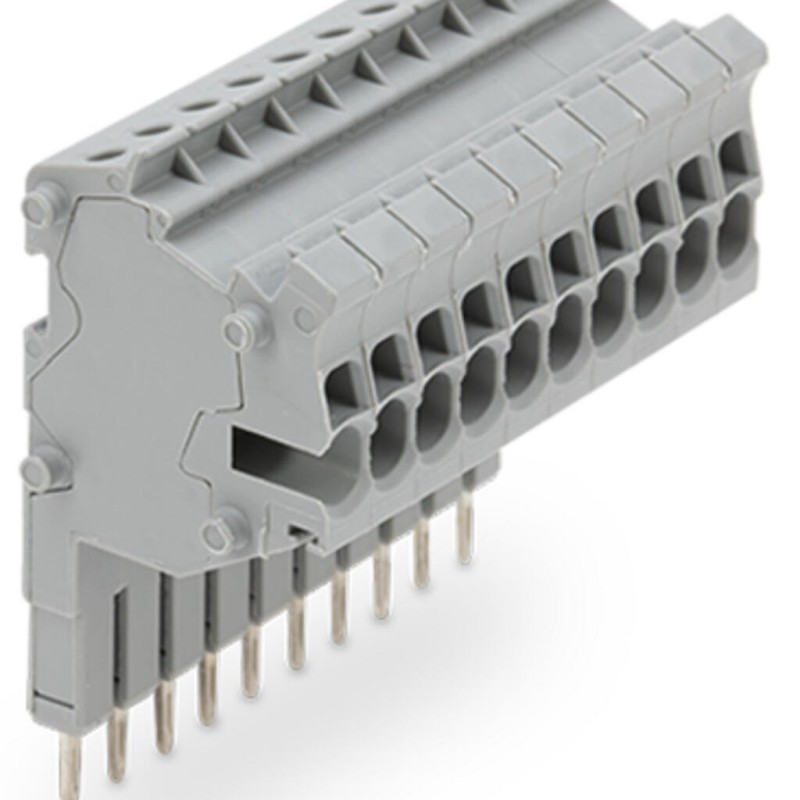

Description 2001-560 Modular TOPJOB®S connector;modular;for jumper contact slot;gray
Main attributes 2001-560 Modular TOPJOB®S connector;modular;for jumper contact slot;gray
Connection 1
Actuation type
Operating tool
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.25 … 2.5 mm² / 22 … 14 AWG
Fine-stranded conductor; with ferrule; push-in termination
0.75 … 1.5 mm² / 18 … 16 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm² / 22 … 16 AWG
Nominal cross-section
1.5 mm²
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Pole number
10
Solid conductor
0.25 … 2.5 mm² / 22 … 14 AWG
Solid conductor; push-in termination
0.75 … 2.5 mm² / 18 … 14 AWG
Strip length
9 … 11 mm
Wiring direction
Side-entry wiring
Connection data
Clamping units
10
Total number of potentials
10
Environmental Testing (Environmental Conditions)
Acceleration
5g (highest test level used for all axes)
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Frequency
f1 = 5 Hz to f2 = 150 Hz
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Monitoring for contact faults/interruptions
Passed
Number of shocks per axis
3 pos. und 3 neg.
Shock duration
30 ms
Shock form
Half sine
Shock test
Test passed according to Section 10 of the standard
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Spectrum/Installation location
Service life test, Category 1, Class A/B
Test directions
X, Y and Z axes
Test duration per axis
5 h
Test procedure (Railway applications – Roll
DIN EN 61373 (VDE 0115-0106):2011-04
Test specification Railway applications – Rolling stock – Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Vibration and shock stress for rolling stock equipment
Passed
Voltage drop measurement before and after each axis
Passed
Material data
Color
gray
Fire load
0.49 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Weight
22 g
Mechanical data
Marking level
Center/side marking
Physical data
Module width
4.2 mm
Width
42 mm
