2000-1407 4-conductor ground terminal block;1 mm²;suitable for Ex e II applications;green-yellow

Name: 2000-1407 4-conductor ground terminal block;1 mm²;suitable for Ex e II applications;green-yellow
Brand: Wago
Price: 162.12 UAH
Availability: InStock

In stock

Article: 2000-1407

Brand: Wago

162.12 грн.

Found it cheaper?

Short description

Description 2000-1407 4-conductor ground terminal block;1 mm²;suitable for Ex e II applications;green-yellow

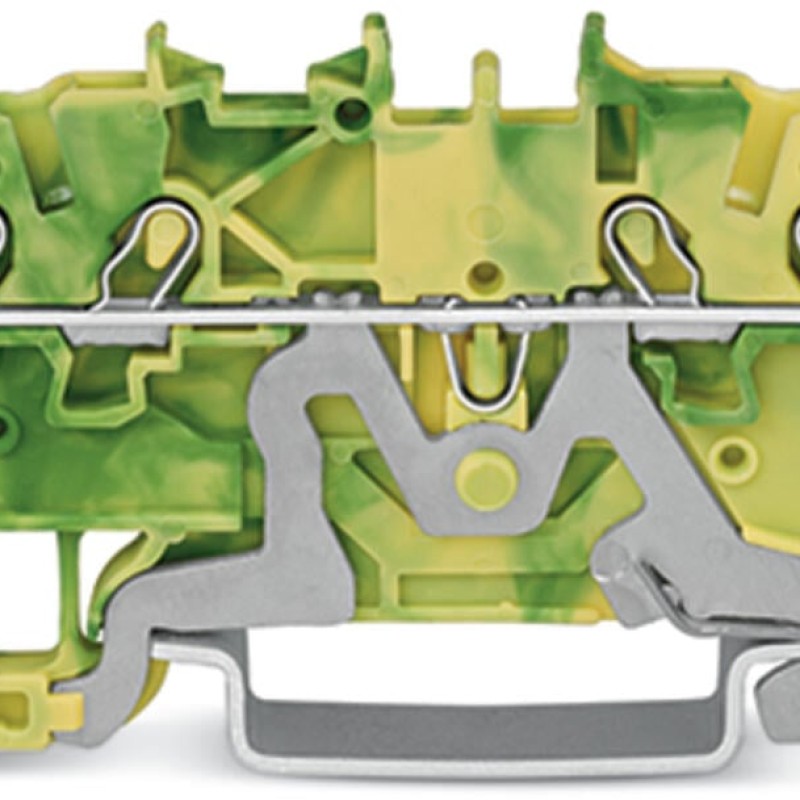

This ground terminal block (item number 2000-1407) is designed for easy and secure connections. Strip lengths must be between 9 and 11 mm when connecting conductors to this ground terminal block. Our ground terminal blocks create a direct connection between the mounting rail and the electrical conductors thanks to an integrated mounting foot. This connection ensures both electrical and mechanical stability between the conductors and the mounting adapter. This product incorporates conductor terminals and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. Both solid and fine-stranded conductors with ferrules can be inserted without needing to use any tools—all thanks to its pluggable design. Depending on the type of conductor, this ground terminal block is ideal for conductor cross sections ranging from 0.14 mm² to 1.5 mm².

This through rail-mount terminal block is operated with an operating tool. Our TOPJOB® S rail-mount terminal blocks guarantee reliable electrical connections across many industrial applications and modern building installations. They simplify wiring, as you can quickly plug in solid, stranded, and fine-stranded conductors with ferrules. This product is designed for specific Ex applications (please refer to the product datasheet).

Main attributes 2000-1407 4-conductor ground terminal block;1 mm²;suitable for Ex e II applications;green-yellow

Connection 1

Actuation type Operating tool

Connectable conductor materials Copper

Connection technology Push-in CAGE CLAMP^®

Fine-stranded conductor 0.14 … 1.5 mm² / 24 … 16 AWG

Fine-stranded conductor; with ferrule; push-in termination 0.5 … 0.75 mm² / 20 … 18 AWG

Fine-stranded conductor; with insulated ferrule 0.14 … 0.75 mm² / 24 … 18 AWG

Nominal cross-section 1 mm²

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Solid conductor 0.14 … 1.5 mm² / 24 … 16 AWG

Solid conductor; push-in termination 0.5 … 1.5 mm² / 20 … 16 AWG

Strip length 9 … 11 mm

Wiring direction Front-entry wiring

Connection data

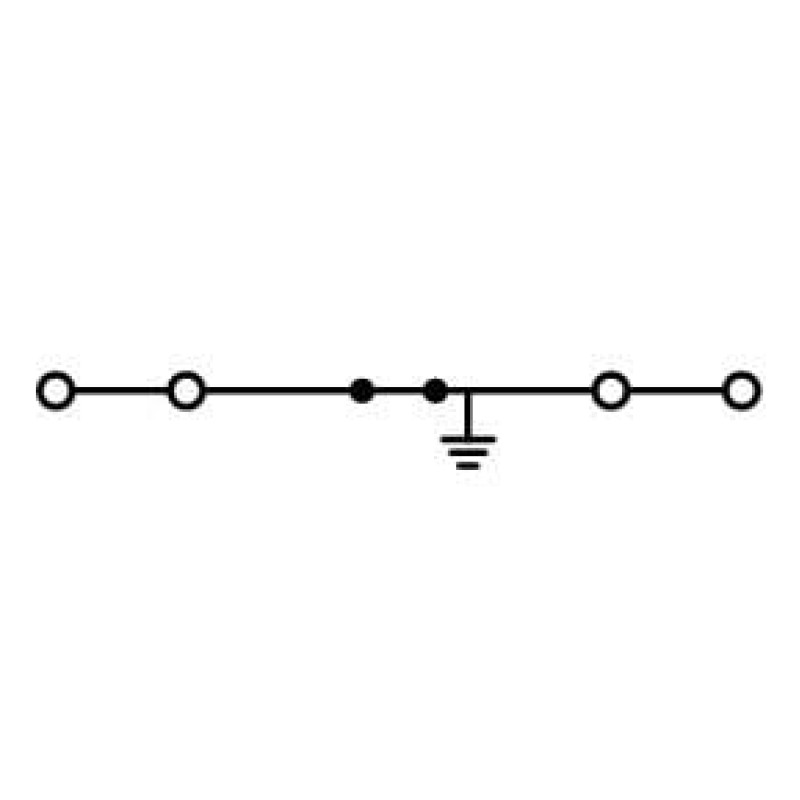

Clamping units 4

Number of jumper slots 2

Number of levels 1

Total number of potentials 1

Environmental requirements

Continuous operating temperature -60 … +105 °C

Processing temperature -35 … +85 °C

Environmental Testing (Environmental Conditions)

Acceleration 5g (highest test level used for all axes)

Extended test scope: Monitoring for contact faults/interruptions Passed

Extended test scope: Voltage drop measurement before and after each axis Passed

Frequency f₁= 5 Hz to f₂= 150 Hz

Function test with noise-like vibration Test passed according to Section 8 of the standard

Monitoring for contact faults/interruptions Passed

Number of shocks per axis 3 pos. und 3 neg.

Shock duration 30 ms

Shock form Half sine

Shock test Test passed according to Section 10 of the standard

Simulated service life test through increased levels of noise-like vibration Test passed according to Section 9 of the standard

Spectrum/Installation location Service life test, Category 1, Class A/B

Test directions X, Y and Z axes

Test duration per axis 5 h

Test procedure (Railway applications – Roll DIN EN 61373 (VDE 0115-0106):2011-04

Test specification Railway applications – Rolling stock – Electronic equipment DIN EN 50155 (VDE 0115-200):2022-06

Vibration and shock stress for rolling stock equipment Passed

Voltage drop measurement before and after each axis Passed

Material data

Color green-yellow

Fire load 0.096 MJ

Flammability class per UL94 V0

Insulation material (main housing) Polyamide (PA66)

Material group I

Weight 7.2 g

Mechanical data

Marking level Center/side marking

Mounting type DIN-35 rail

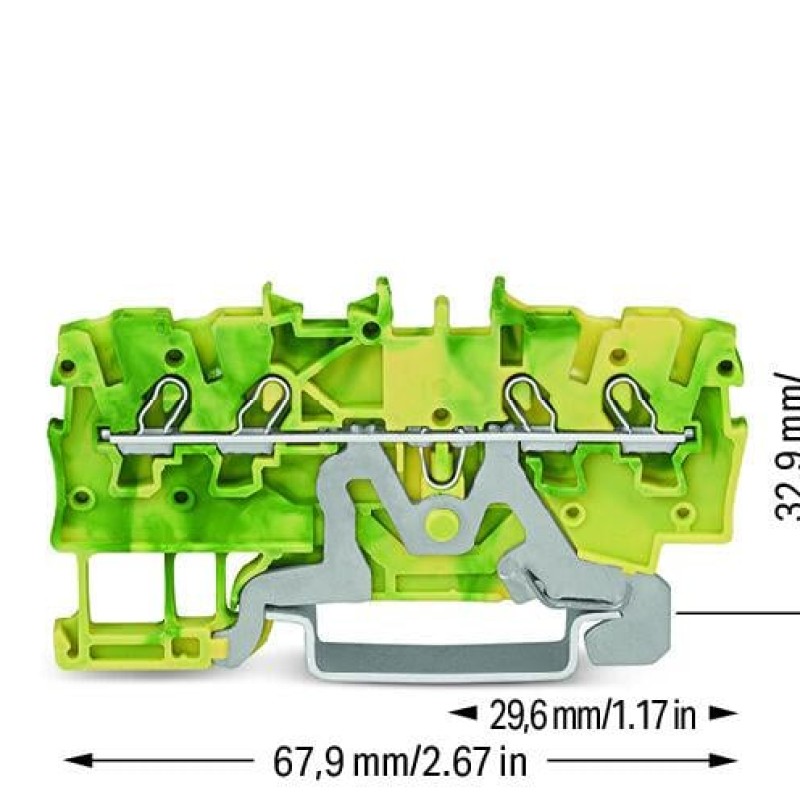

Physical data

Depth from upper-edge of DIN-rail 32.9 mm

Height 67.9 mm

Width 3.5 mm
