Article: 2000-1292
Brand: Wago
20.09 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

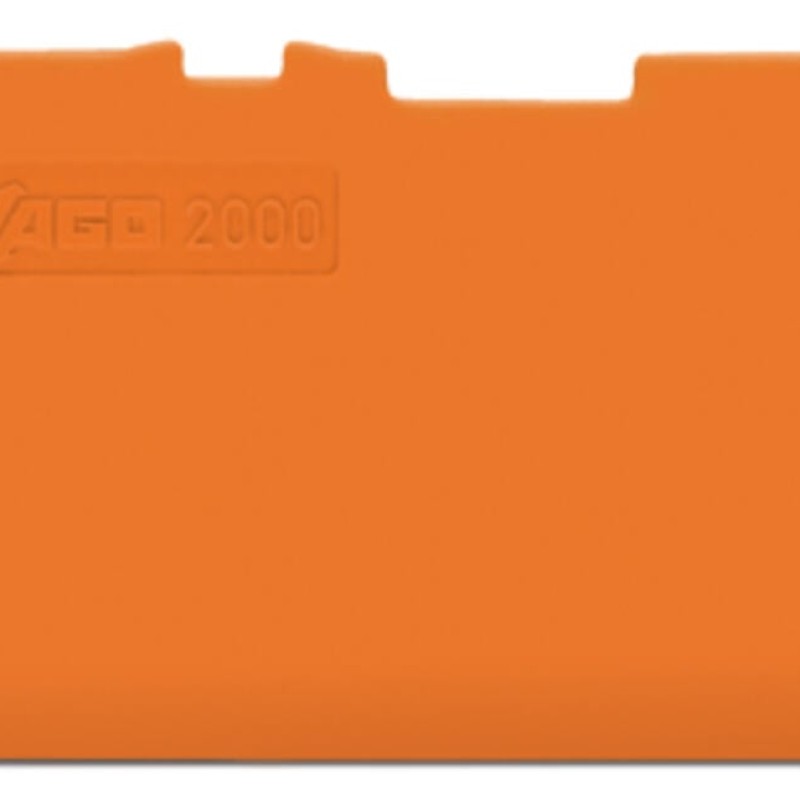

Description 2000-1292 End and intermediate plate;0.7 mm thick;orange
Main attributes 2000-1292 End and intermediate plate;0.7 mm thick;orange
Environmental Testing (Environmental Conditions)
Acceleration
5g (highest test level used for all axes)
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Frequency
f1 = 5 Hz to f2 = 150 Hz
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Monitoring for contact faults/interruptions
Passed
Number of shocks per axis
3 pos. und 3 neg.
Shock duration
30 ms
Shock form
Half sine
Shock test
Test passed according to Section 10 of the standard
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Spectrum/Installation location
Service life test, Category 1, Class A/B
Test directions
X, Y and Z axes
Test duration per axis
5 h
Test procedure (Railway applications – Roll
DIN EN 61373 (VDE 0115-0106):2011-04
Test specification Railway applications – Rolling stock – Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Vibration and shock stress for rolling stock equipment
Passed
Voltage drop measurement before and after each axis
Passed
Material data
Color
orange
Fire load
0.031 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
1 g
Mechanical data
Mounting type
snap-on type
Physical data
Depth
28.9 mm
Height
48.1 mm
Width
0.7 mm
Reviews about 2000-1292 End and intermediate plate;0.7 mm thick;orange
0
There are no reviews for this product.
Questions and Answers (FAQ) 2000-1292 End and intermediate plate;0.7 mm thick;orange
There are no questions about this product.
2000-1292 End and intermediate plate;0.7 mm thick;orange
