2000-1201 2-conductor through terminal block;1 mm²;suitable for Ex e II applications;gray

Name: 2000-1201 2-conductor through terminal block;1 mm²;suitable for Ex e II applications;gray
Brand: Wago
Price: 36.07 UAH
Availability: InStock

Top

In stock

Article: 2000-1201

Brand: Wago

36.07 грн.

Found it cheaper?

Short description

Description 2000-1201 2-conductor through terminal block;1 mm²;suitable for Ex e II applications;gray

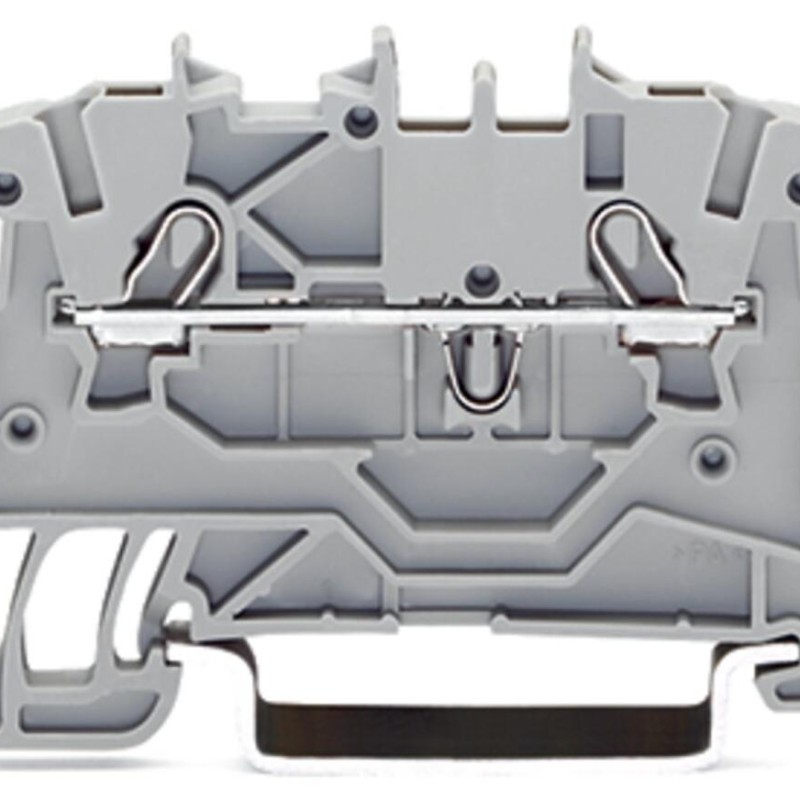

Easily, quickly and safely connect conductors with this through terminal block (item number 2000-1201). Ensure that the strip lengths are between 9 and 11 mm when connecting conductors to this through terminal block. Whether for use in industry or building installations, our rail-mount through terminal blocks allow you to quickly and securely connect electrical conductors. They’re perfect for either classic through-wiring or distributing potential, depending on the variant. Featuring conductor terminals along with Push-in CAGE CLAMP®, this product outperforms the competition. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. Solid and fine-stranded conductors with ferrules can be pushed in without the need for tools—all thanks to its pluggable design. The item's dimensions are (3.5 x 48.5 x 39.5) mm (width x height x depth). This through terminal block is suitable for conductor cross sections ranging from 0.14 mm² to 1.5 mm².

An operating tool is used to operate this through rail-mount terminal block. Our TOPJOB® S rail-mount terminal blocks are perfect for many different industrial applications and modern building installations as they provide secure electrical connections. You can work anywhere in the world and on any application with just a single rail-mount terminal block system. This product is designed for specific Ex applications (please refer to the product datasheet).

Main attributes 2000-1201 2-conductor through terminal block;1 mm²;suitable for Ex e II applications;gray

Connection 1

Actuation type Operating tool

Connectable conductor materials Copper

Connection technology Push-in CAGE CLAMP^®

Fine-stranded conductor 0.14 … 1.5 mm² / 24 … 16 AWG

Fine-stranded conductor; with ferrule; push-in termination 0.5 … 0.75 mm² / 20 … 18 AWG

Fine-stranded conductor; with insulated ferrule 0.14 … 0.75 mm² / 24 … 18 AWG

Nominal cross-section 1 mm²

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Solid conductor 0.14 … 1.5 mm² / 24 … 16 AWG

Solid conductor; push-in termination 0.5 … 1.5 mm² / 20 … 16 AWG

Strip length 9 … 11 mm

Wiring direction Front-entry wiring

Connection data

Clamping units 2

Number of jumper slots 2

Number of levels 1

Total number of potentials 1

Environmental requirements

Continuous operating temperature -60 … +105 °C

Processing temperature -35 … +85 °C

Environmental Testing (Environmental Conditions)

Acceleration 5g (highest test level used for all axes)

Extended test scope: Monitoring for contact faults/interruptions Passed

Extended test scope: Voltage drop measurement before and after each axis Passed

Frequency f₁= 5 Hz to f₂= 150 Hz

Function test with noise-like vibration Test passed according to Section 8 of the standard

Monitoring for contact faults/interruptions Passed

Number of shocks per axis 3 pos. und 3 neg.

Shock duration 30 ms

Shock form Half sine

Shock test Test passed according to Section 10 of the standard

Simulated service life test through increased levels of noise-like vibration Test passed according to Section 9 of the standard

Spectrum/Installation location Service life test, Category 1, Class A/B

Test directions X, Y and Z axes

Test duration per axis 5 h

Test procedure (Railway applications – Roll DIN EN 61373 (VDE 0115-0106):2011-04

Test specification Railway applications – Rolling stock – Electronic equipment DIN EN 50155 (VDE 0115-200):2022-06

Vibration and shock stress for rolling stock equipment Passed

Voltage drop measurement before and after each axis Passed

Material data

Color gray

Fire load 0.079 MJ

Flammability class per UL94 V0

Insulation material (main housing) Polyamide (PA66)

Material group I

Weight 3.6 g

Mechanical data

Marking level Center/side marking

Mounting type DIN-35 rail

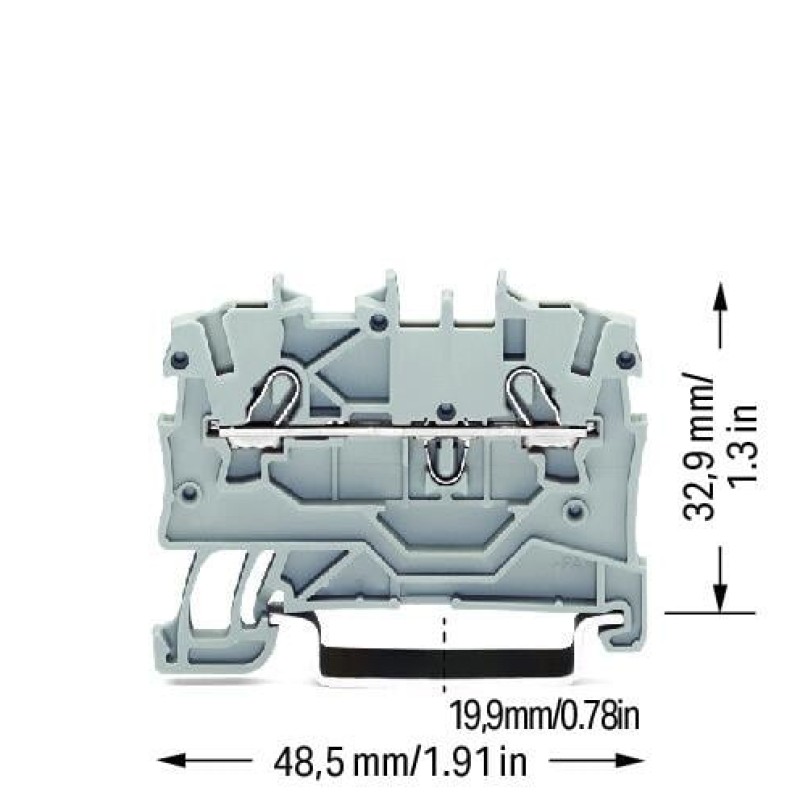

Physical data

Depth 39.5 mm

Depth from upper-edge of DIN-rail 32.9 mm

Height 48.5 mm

Width 3.5 mm
